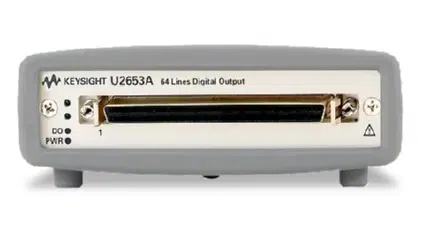

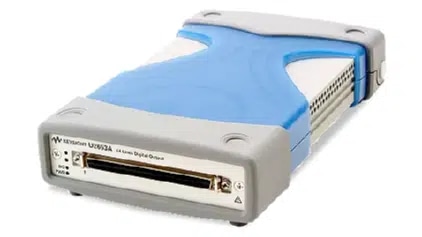

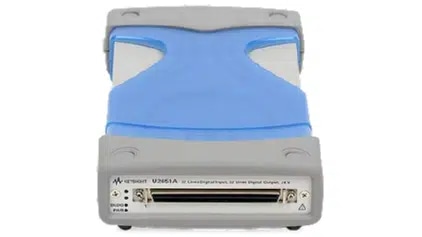

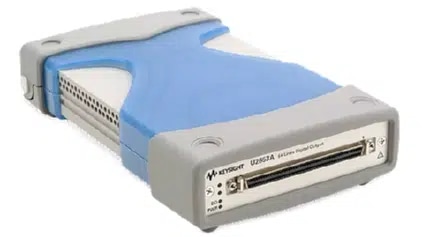

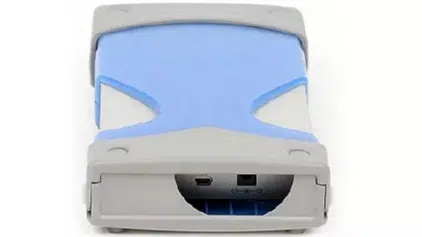

U2600A 系列 USB 模块化隔离数字输入/输出

产品描述：
Keysight U2600A 系列隔离数字 IO DAQ 是高性能模块，拥有多达 8 个 64 位高密度、光隔离数字输入和数字输出通道。这款 USB 数字 IO 器件具有 5 V 至 35 V 的输出电压范围，只需一台即可驱动各种执行器和控制更多传感器。

产品特点产品参数相关产品

产品特点

特点

光隔离可以提升信号的可靠性和质量
快速 USB 设置支持即插即用
拥有模块化功能，可插入 U2781A 产品机箱
高达 64 条光隔离数字 I/O 线，提供 1250 V 峰值瞬态保护

板载隔离 +5 V 电源，无需使用外部电源
支持自动触发的中断功能和虚拟端口分组功能
支持 SCPI 和 IVI-COM，兼容广泛的 KDE
包含 BenchVue 软件，可以快速设置并将数据记录到计算机中

Features

• Hi-Speed USB 2.0 (480 Mbps)

• Functions as a standalone or modular unit

• Up to 64 optoisolated digital I/O lines with a maximum transient voltage of 1250 Vpeak protection

• Supports input voltage ranging from 10 to 24 V

• External supply voltage ranging from 5 to 35 V for external load

• Compatible with a wide range of Keysight Development Environments (KDEs)

• Supports SCPI and IVI-COM

• Command logger function

• USB 2.0 and USBTMC-USB488 standards

• Interrupt function

• Virtual Port grouping function

• Control, automate, and simplify with Keysight BenchVue software.

Various features of the U2600A Series

• Quick and easy USB setup

• High channel count to drive more actuators and control more sensors by using just one DIO device

• Opto-isolation for more reliable and improved signal quality

• High isolated transient voltage protection of the digital IO lines is able to protect your system from being damaged

• Wide input voltage range of 10 to 24 V to sense the status of external sensors

• High output voltage range of 5 to 35 V provides the capability to drive a wide array of actuators in industrial automation applications

• On-board isolated +5 V power supply enables simple application and function tests without the need for an external source

• SCPI and IVI-COM support and compatibility with a wide range of KDEs minimize work time and provides higher flexibility of software choices

• Interrupt function for automatic triggering of your system when a digital change of state occurs

• Virtual Port grouping function allows grouping of any eight input/output bits into one virtual port for simultaneous operations

High channel count with optoisolated digital input and digital output

The U2600A Series has a high channel count of up to 64-bit high-density optoisolated digital input and digital output that enhances its usability and reliability. With just one DIO device, you are able to drive more actuators and control more sensors. The U2600A Series’ Optoisolated design also separates the electrical connection between circuits for better PC system protection.

High isolated transient voltage protection

Isolation prevents any potential harmful current that transient voltage spikes may induce from flowing through the digital IO lines to the system. The robust 1250 Vpeak transient isolation protection makes it safe for direct connection to a wide range of industrial sensors and actuators, making the U2600A suitable for most industrial applications.

High I/O voltage range

The U2600A Series has a high input/output voltage range suitable for demanding industrial applications such as driving relays and actuators, which require up to 24 V. Equipped with a wide input range of 10 to 24 V to sense the status of external sensors, it also has an external supply voltage ranging from 5 to 35 V, which enables the U2600A Series to drive a wide range of actuators.

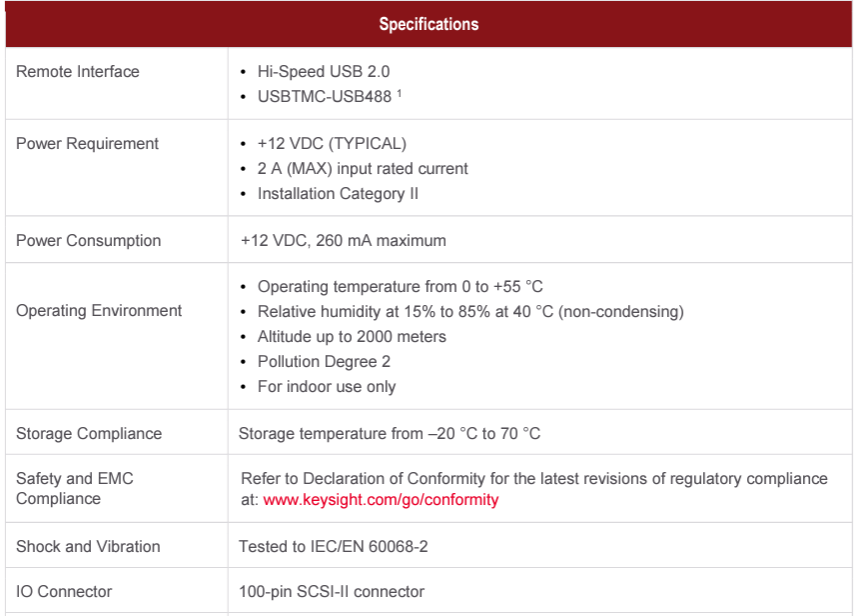

产品参数
