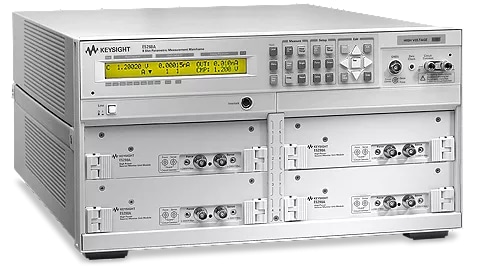

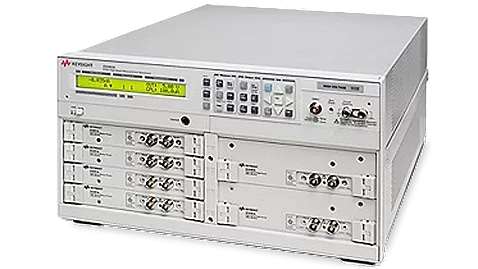

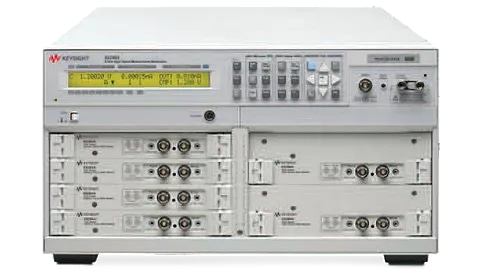

E5260A + E5270B 模块化源表模块（SMU）

产品描述：
是德科技的模块化源表模块（SMU）――E5260A 和 E5270B——兼具丰富功能和先进特性，可以优化测试成本。它们提供了多种性价比配置，其框架可添加多达 8 个插入式 SMU 模块，为您量身定制解决方案并可随着需求变化而灵活扩展。

产品特点产品参数相关产品

产品特点

E5260A 和 E5270B 模块化 SMU 拥有 8 个插槽，可安装插入式模块
E5262A 和 E5263A 2 通道型号提供了经济高效的解决方案
支持中等功率 SMU（MPSMU）和大功率 SMU（HPSMU）

模数转换器可以加快测试速度并支持真正的并行测量
增强型程序存储器可加快测量过程
E5270B 提供了更出色的参数测量性能

Current-voltage measurement capabilities

– Accurate and precision measurement ranges of 0.1 fA

– 1A and 0.5 µV – 200 V– Spot and sweep measurement capabilities

– Pulse spot and sweep measurement with minimum 500 µs pulse width

– The ASU (atto-sense and switch unit) can be used with the HRSMU to provide 0.1 fA measurement resolution and SMU/AUX path switching

EasyEXPERT group+ software

– Characterization environment is available on user’s PC

– Intuitive GUI based operation with keyboard and mouse operation

– Application Test mode provides the furnished ready-to-use application tests for quick measurement execution (Available application tests can be adapted to configured resources.)

– Classic test mode provides easy access to the instrument features

– Graphical display and analysis capabilities facilitate front-end data analysis without additional utilities and support report generation as image data or Excel data.

– Individualized built-in database (workspace) records test data automatically and simplifies the data management without annoying numerous data files.

– Quick test mode supports test sequencing without programming

– GUI-based control of the Keysight B2200A, B2201A and E5250A switching matrices

– EasyEXPERT remote control function supports the remote execution of application tests via the LAN interface

– Data back capability and various data protection feature for shared usage by multiple users

– EasyEXPERT group+ can be installed on as many PCs as you need without additional charge to take advantage of offline personal analyzer environment among users in your department.

E5270B hardware

– Configurable and upgradable measurement modules up to 8 slots

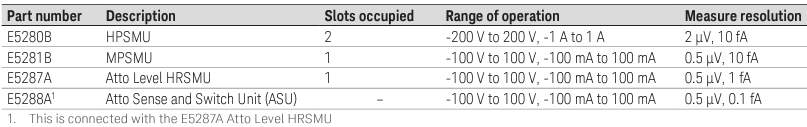

– High Resolution SMU (HRSMU), Medium Power SMU (MPSMU) and High Power SMU (HPSMU) are available for configurable SMU selection. Optional ASU is supported for HRSMU.

– High-resolution and high-speed analog-to-digital converters (ADCs) are available to all installed modules

– Active ground unit (GNDU) in mainframe to force 0 V and sink the current up to 4 A

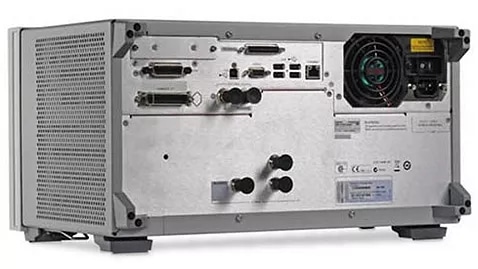

– Multiple interfaces (GPIB, trigger in/out and digital I/O)

– FLEX command set and program memory for remote control programming

– Self-test, self-calibration and diagnostics functions

产品参数
