PZ2100 系列高通道密度精密型源表模块

产品描述：
PZ2100 源表模块（SMU）解决方案能够帮助您解决测试和验证方面的难题。它在 1U 机架空间内整合了多个 SMU 模块选件和多达 20 个 SMU 通道，让您能够集中精力进行表征，而不必分心考虑同步操作。它还提供了简便的系统集成和专用测量功能，可以减轻您的编程负担，加快将产品推向市场。

产品特点产品参数相关产品

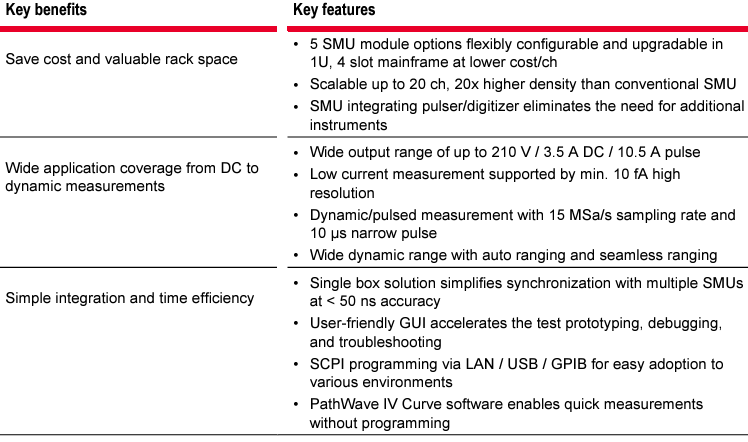

产品特点

在 1U 高、全宽机架空间内提供了 20 个通道，通道密度比是德科技传统的 SMU 高 5 倍。
提供了 5 个 SMU 模块选件和综合的脉冲发生器/数字化仪功能，可以灵活扩展。
提供一体化解决方案，全部 20 个通道的同步准确度达到＜50 ns。

通过 PathWave IV 曲线测量软件，提供流畅的操作和优良的用户体验。
提供简便易用的图形用户界面，可集中管理多达 20 个通道。
执行最小 10 fA 的静态直流测量和高达 15 MSa/s 的脉冲测量。

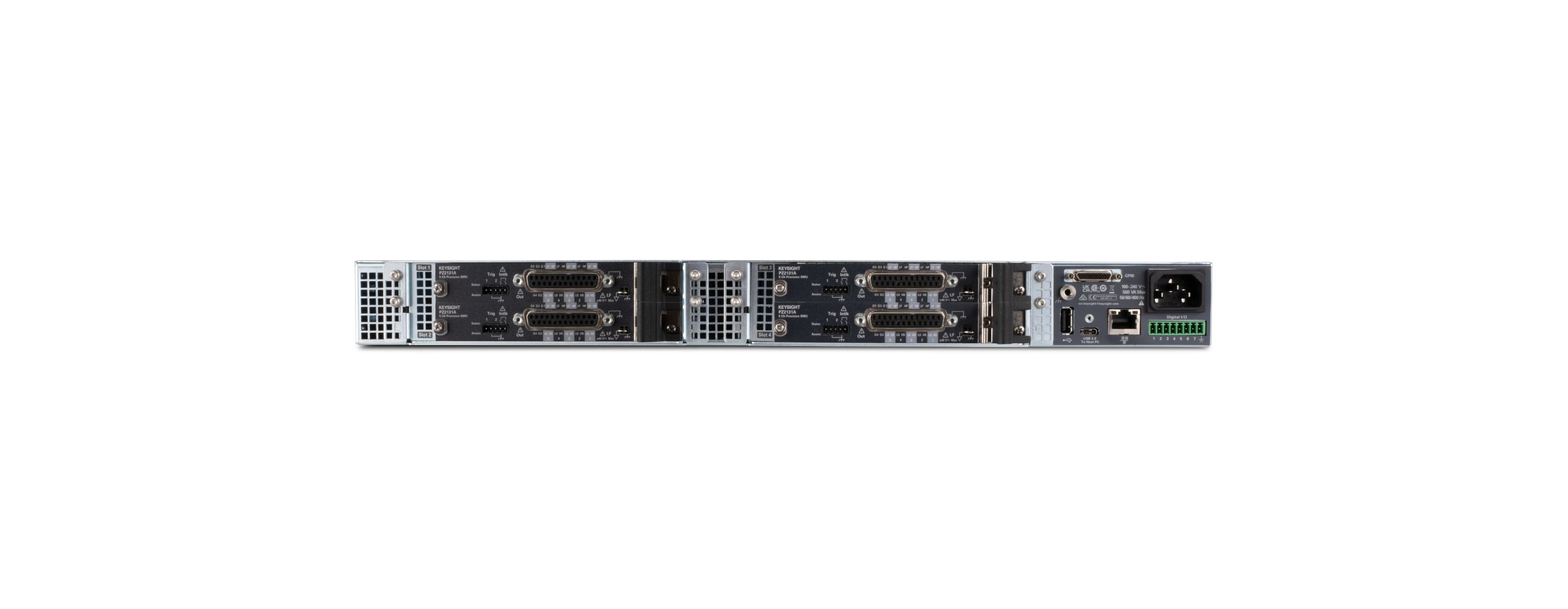

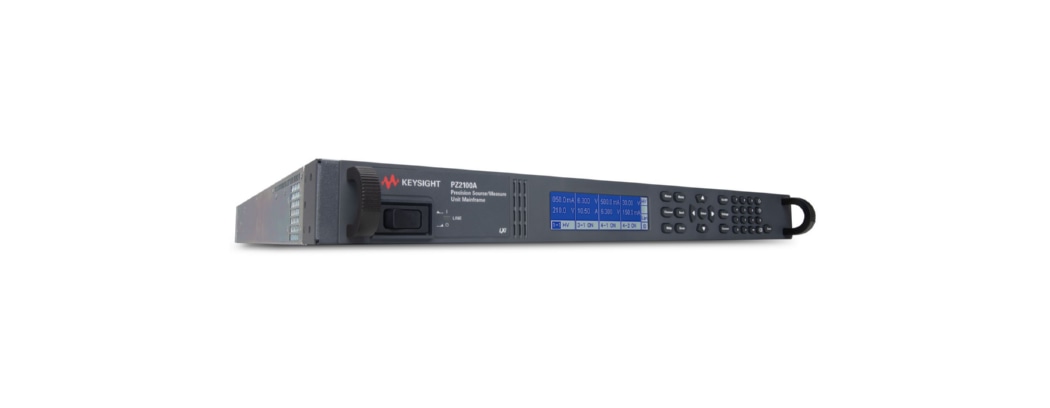

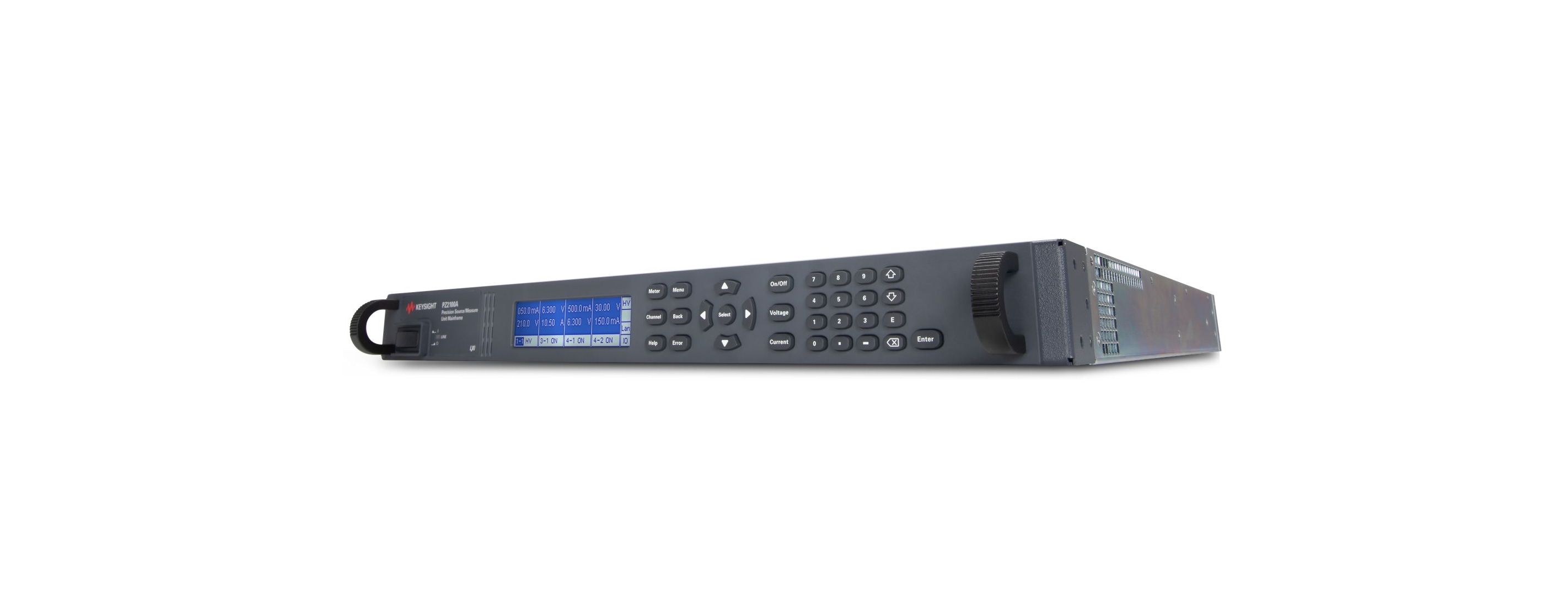

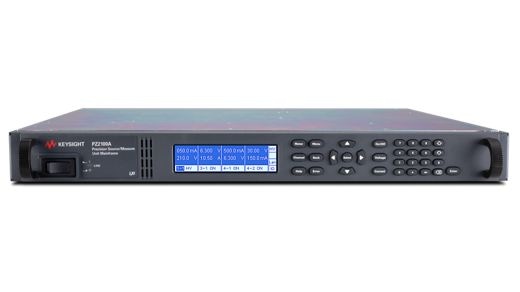

Keysight PZ2100A Precision SMU Mainframe

The Keysight PZ2100A is the precision source/measure unit (SMU) mainframe that uncompromisingly and densely integrates 20 SMU channels at maximum into valuable 1U height, full width, rack space with flexible module options at their best performance. It supports a variety of resources such as the Keysight PZ2110A High-Resolution SMU, PZ2120/21A High-Speed SMUs, and PZ2130/31A High-Channel Density SMUs with multiple functions such as pulser and digitizer, as well as precise voltage/current sourcing and measuring to adapt to a wide range of application requirements.

Flexibly configurable and upgradable at lower cost / ch

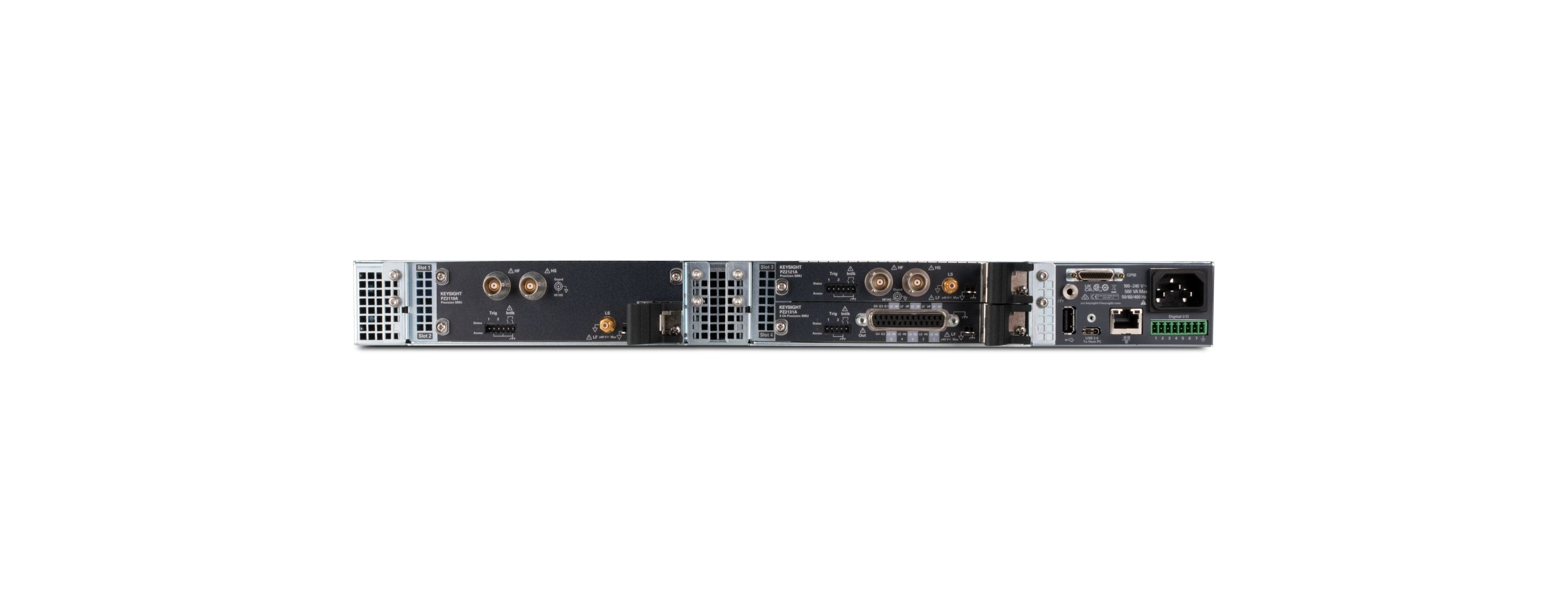

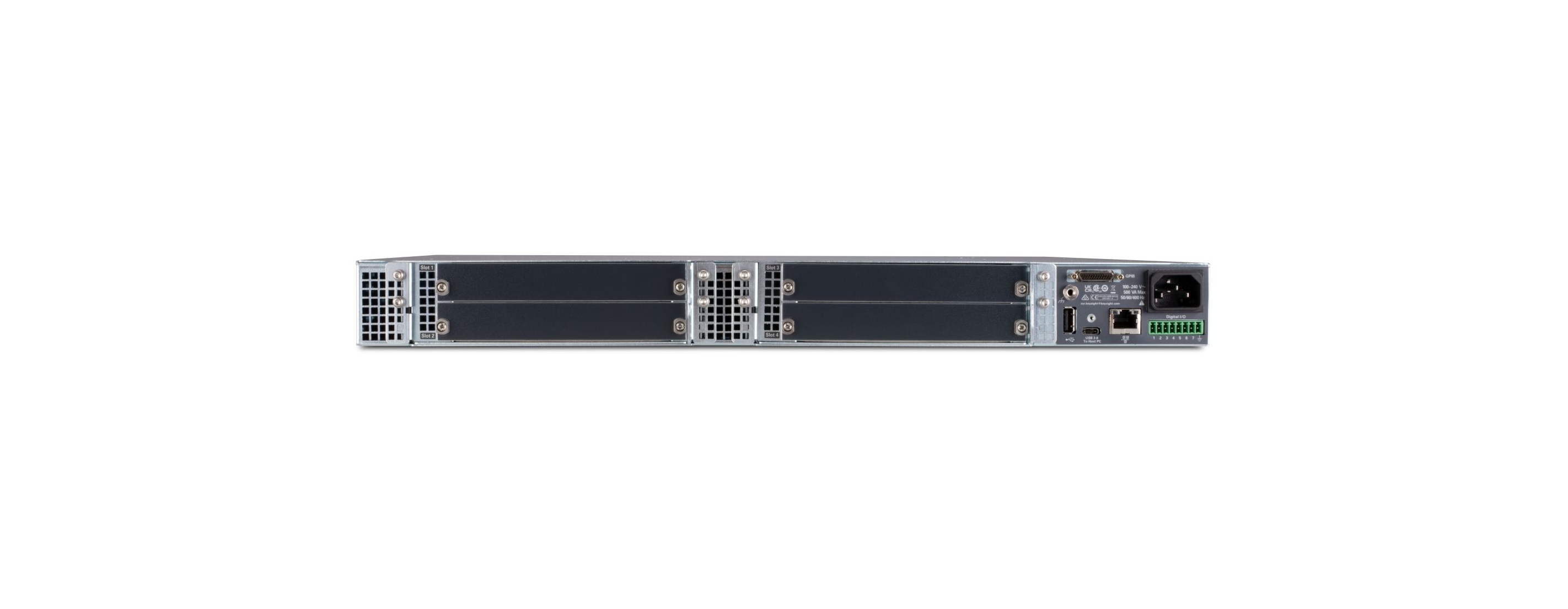

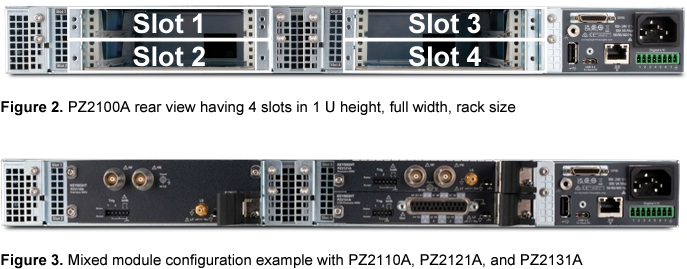

The Keysight PZ2100A is a precision SMU mainframe that provides 4 slots and flexibly integrates 5 SMU module options. It allows any mixed module configuration, which enables you to configure and upgrade your test system flexibly according to your application requirements.

Scalable up to 20 channels, 20x higher density than conventional SMU

The PZ2100A integrates up to 20 SMU channels into valuable 1U-height, full-width rack space, and unlike conventional SMUs, it does not require any cooling spacers when stacked. It achieves a 20x smaller footprint than conventional SMUs and enables you to save cost and valuable rack space.

Keysight PZ2110A High-Resolution SMU

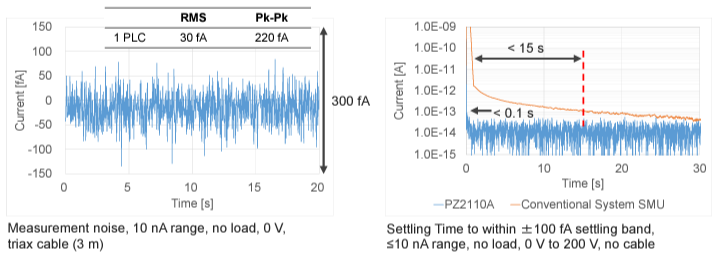

The Keysight PZ2110A is a precision SMU that expands precise measurements from conventional static measurements to fast dynamic measurements. It has a resolution of 10 fA and a noise level of 30 fArms with a 1-power line cycle (PLC) aperture time for static measurement. Its fast current measurement settling time within 0.1 s to within the settling band (±100 fA) enables you to perform precise low current measurements more quickly than ever before. It has a pulse measurement as narrow as 20 μs, while for the fast dynamic measurement, it supports up to 1.25 MSa/s sampling rate with a digitizer mode. Its narrow pulse capability enables you to suppress the self-heat effect to reveal the true characteristics of the devices. It covers currents up to 315 mA and voltages up to 210 V for both source and measurement functions, making it ideal for a wide variety of current versus voltage (IV) measurement tasks that require both high resolution and accuracy. The PZ2110A can accurately perform characterization, parametric tests, and reliability tests of semiconductors, active/passive components, and general electronic devices.
