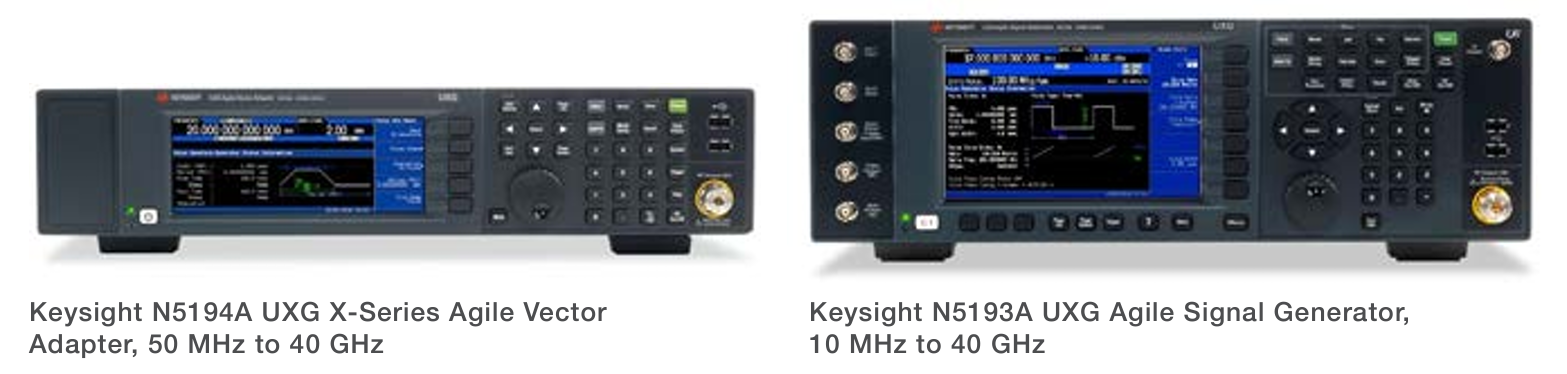

X 系列捷变信号发生器——UXG

产品描述：

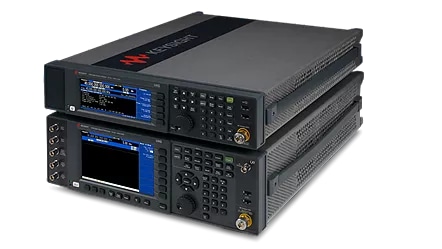

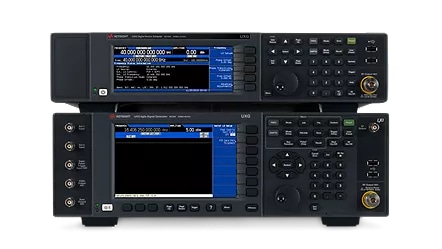

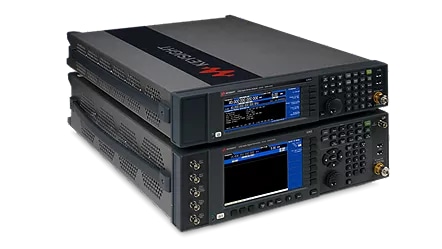

UXG X 系列捷变信号发生器可以随时创建复杂场景，轻松满足您的需求。 UXG 是一个功能强大、现成可用的构建模块，您可以灵活地将其配置为可靠的本振（LO）或是可扩展的威胁仿真器。 UXG 消除了模拟和矢量技术之间的界限，可以加速将新情报整合到最新信号场景中。拥有UXG，您将能够生成越来越复杂的场景，实现更逼真的仿真。

产品特点产品参数相关产品

产品特点

可以满足高达 44 GHz 的各种电子战、雷达和天线测试要求
UXG 采用了直接数字合成（DDS）技术，可以在最短 170 ns 内更新频率、幅度和相位设置，并可在内部提供可重复的相位
可以仿真先进的雷达信号，产生具有 90 dB 通断比的窄脉冲，以及宽度为载波频率 10% 到 25% 的线性调频信号
快速频率调谐功能支持您在宽广的频率范围内快速表征天线：标准配置提供 100 µs 开关速度，根据需要还可通过选件提供 1 µs 和 370 ns 的开关速度
接受脉冲描述字（PDW），可以快速高效地生成长脉冲序列，同时允许单独进行相位控制
生成成形脉冲和宽带线性或非线性调频信号

Get Closer to Reality

To accurately simulate radar threats and targets, an agile signal generator that can switch frequency and settle amplitude in the hundreds of nanoseconds at different frequencies is necessary. When looking for a solution to simulate your RF environment, make sure the product’s internal modulation bandwidth is sufficient to cover your threat frequencies of interest.

The UXG agile signal generator’s ability to fast frequency hop with phase continuity and repeatability makes it an ideal source to efficiently simulate complex threat environments across the full 40 GHz range of the signal generator.

• Multiple pulse-Doppler radars at different frequencies while maintaining the original phase as the signal generator hops from one emitter frequency to another

• EW scenarios with thousands of radar threat-emitters and millions of pulses per second with unique antenna scans

• IQ custom complex modulation on pulse with the UXG Vector Adapter including linear and nonlinear frequency modulated chirps over a 40 GHz range (see Figure 4)

• High pulse density environments by scaling up in the number of UXGs increases pulse density and allows the ability to perform pulse-on-pulse simulations or do multi-port angle of arrival (AoA) simulations.

• AoA simulations with multiple UXGs and staggering identical pulses played out of different ports (different UXGs) in time, phase, amplitude, or all three1

Analysis and scoring of EW stimulus and electronic attack resources can be a challenge due to wide-bandwidth and complex pulse modulation types in highdensity environments. With the diverse portfolio of Keysight’s COTS analysis hardware including signal analyzers, oscilloscopes, and digitizers, you can capture and characterize the EW environment up to 110 GHz with wide modulation bandwidths.

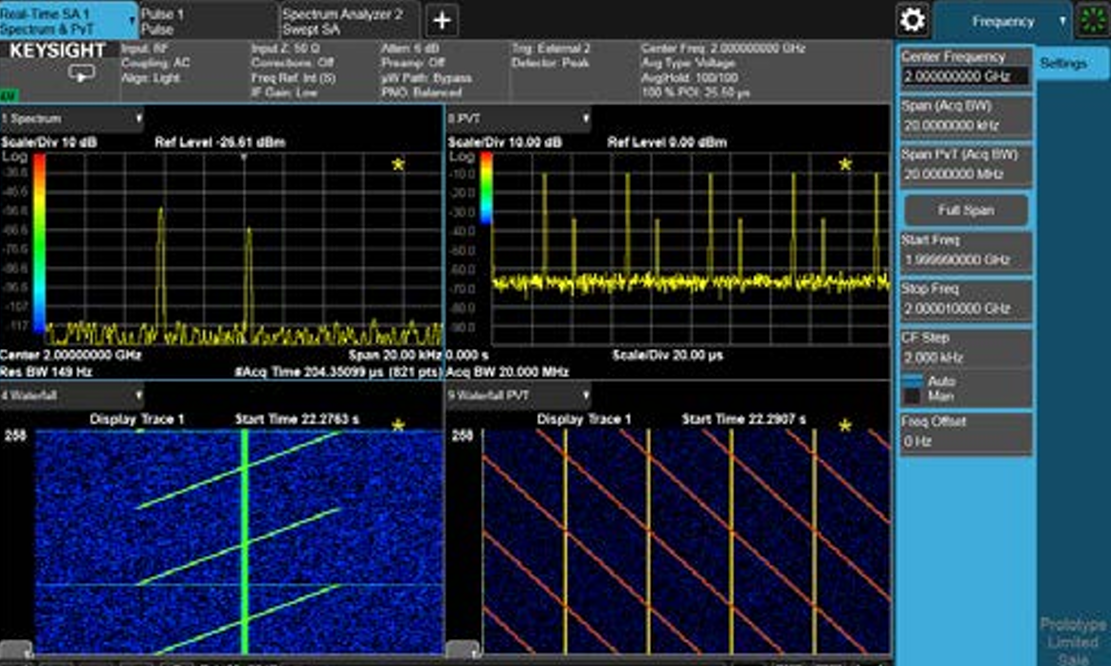

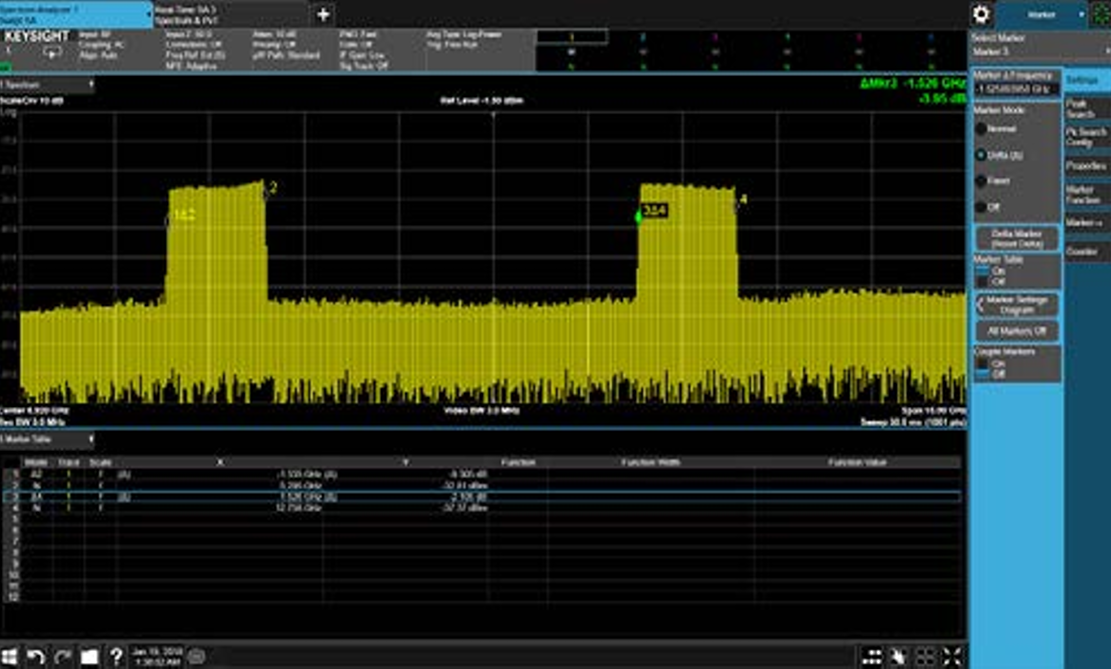

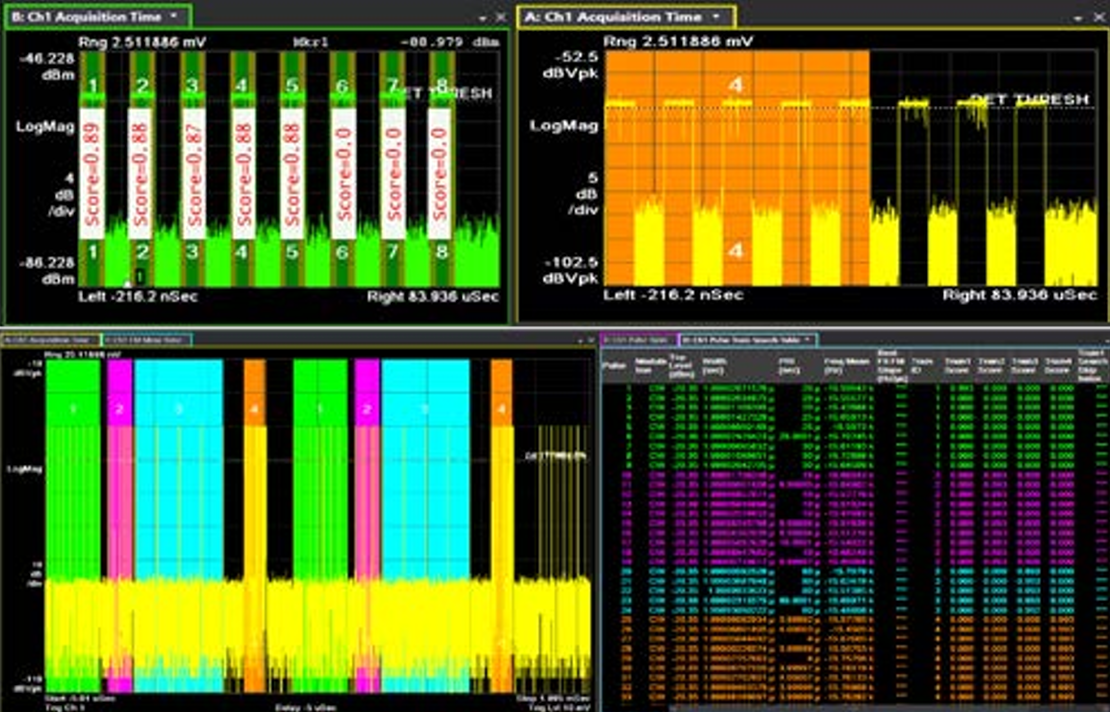

Keysight N9067EM0E and 89601B pulse analysis software capabilities:

• Differentiate threats with pulse-scoring filters based on characteristics such as pulse width, PRI, and modulation type (including linear and non-linear modulation)

• Capture long scenarios with efficient memory usage

• Correlations and sidelobe measurements

• Dual domain analysis with narrow bandwidth for frequency domain analysis and wider bandwidth for time domain analysis

• Pulse Similarity Scores comparing sequential pulses assist with radar output waveform validation1

• Pulse Train Searches ensure that radar mode changes happen as expected1
