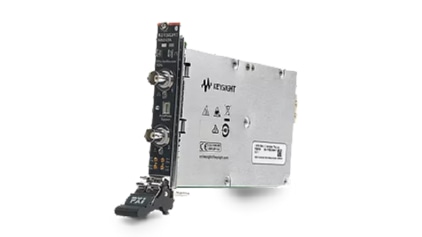

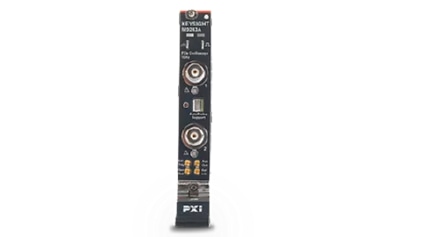

M924XA PXIe 模块化示波器

产品描述：
Keysight InfiniiVision M924XA 系列赋予模块化示波器全新定义。它利用是德科技累积数十年的高性能示波器专业技术打造而成，能够为您提供更详细的信号细节，同时充分保护您的投资。

产品特点产品参数相关产品

产品特点

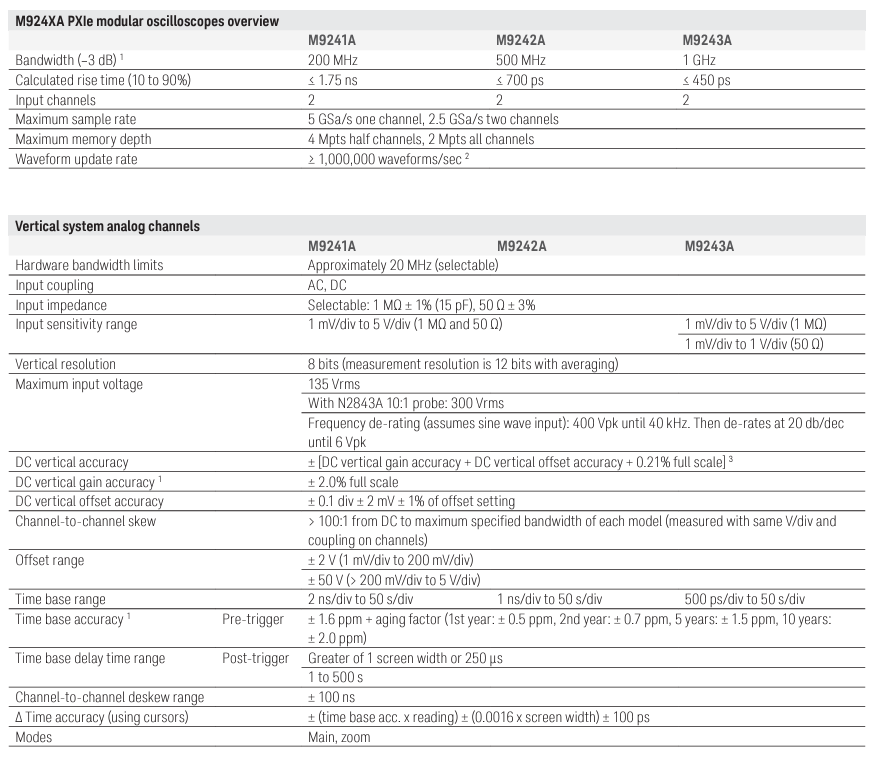

200 MHz、500 MHz 和 1 GHz 带宽
2 个模拟通道和 5 GSa/s 采样率
高达 1,000,000 波形/秒的捕获率让您可以查看更多信号细节
先进的触发功能可以捕获和分析复杂信号
串行协议分析和触发支持大多数常见协议

Keysight is taking modular analysis to a whole new level

This is not just a digitizer with an oscilloscope SFP (soft front panel). The InfiniiVision PXIe modular oscilloscopes utilize Keysight’s InfiniiVision benchtop oscilloscope technology and packages it for PXI.

– M9241A PXIe modular oscilloscope – 200 MHz bandwidth

– M9242A PXIe modular oscilloscope – 500 MHz bandwidth

– M9243A PXIe modular oscilloscope – 1 GHz bandwidth

The Power of a Benchtop Oscilloscope in a Modular Package

The InfiniiVision M924XA Series redefines modular oscilloscopes. It gives you the most signal detail with maximum investment protection and is built with technology that leverages decades of Keysight’s high-performance oscilloscope expertise.

Performance

– 200 MHz, 500 MHz or 1 GHz bandwidths available to match your measurement application

– Advanced triggering enables capture and analysis of complex signals

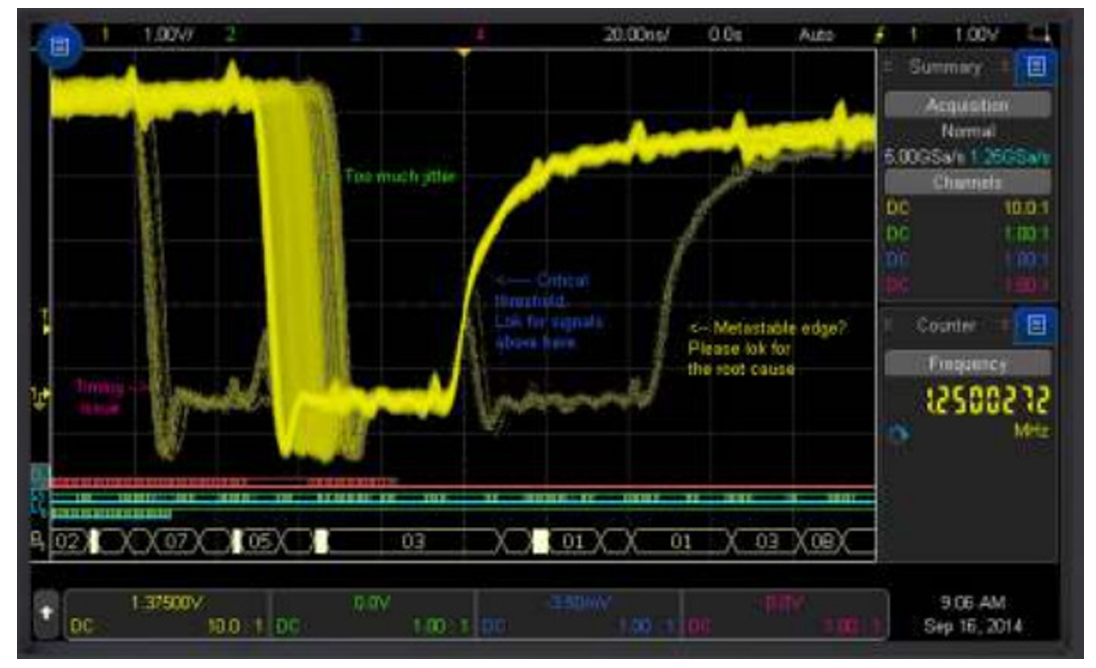

– Visual triggers (zone touch and mask) make trigger and capture of signal errors quick and easy– Serial protocol analysis and triggering for most common protocols

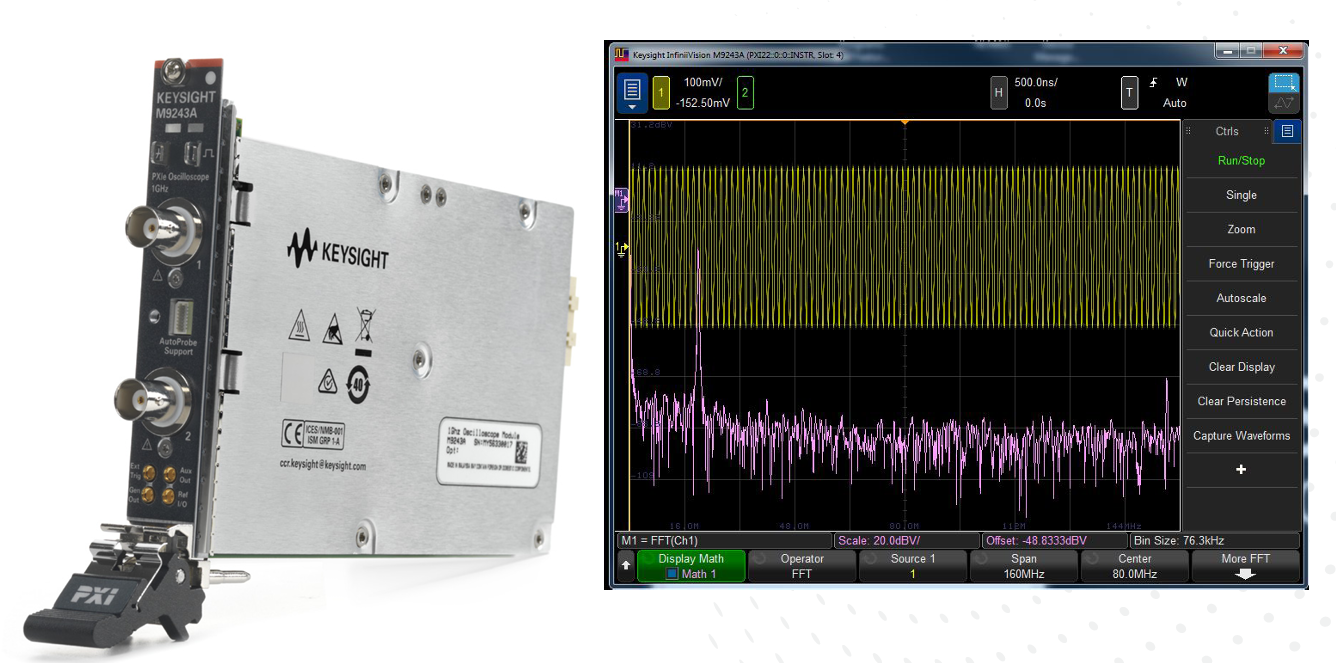

– Automated FFT and waveform math extend analysis to match your needs

– Segmented memory can analyze 1000 events without ever offloading to a PC Measurement capability– AutoProbe support for most Keysight probes

– High-accuracy current probes

– Differential and single-ended active probes

– Power rail analysis

– High-voltage probes

– 30+ automated measurements provide simple

-to-access analysis Multiple instruments in one

– Oscilloscope support for up to 1 GHz bandwidth with 5 GSa/s

– DVM (Digital voltmeter) 3-digit using the same scope probes

– 8-digit counter for integrated totalizer/frequency counter measurements

– Protocol analyzer for I²C, UART, CAN, LIN, CXPI and more
