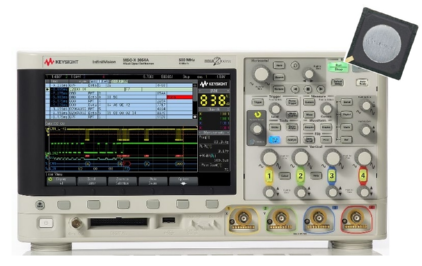

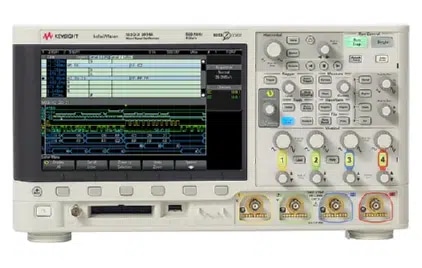

InfiniiVision 3000A X 系列示波器

产品描述：
100 MHz ～ 500 MHz 经济型数字存储和混合信号示波器，配有业界堪称大尺寸的显示屏、深度存储器以及独有的内置函数发生器，可以提供同类产品中相对快速的更新速率并增添串行总线应用.

产品特点产品参数相关产品

产品特点

100 MHz 至 1 GHz，DSO 和 MSO 型号
在 MSO 的 16 个数字通道上查看时间关联的数字内容
使用 WaveGen 内置 20 MHz 函数发生器（可选）在示波器内部完成信号调制
使用 3 位电压表和 5 位计数器选件快速完成信号表征
提供 CAN、LIN、I2C、SPI、RS232 等硬件串行分析选件，可让您更迅速地完成串行总线解码
仪器的全面可升级性可以保护您的投资

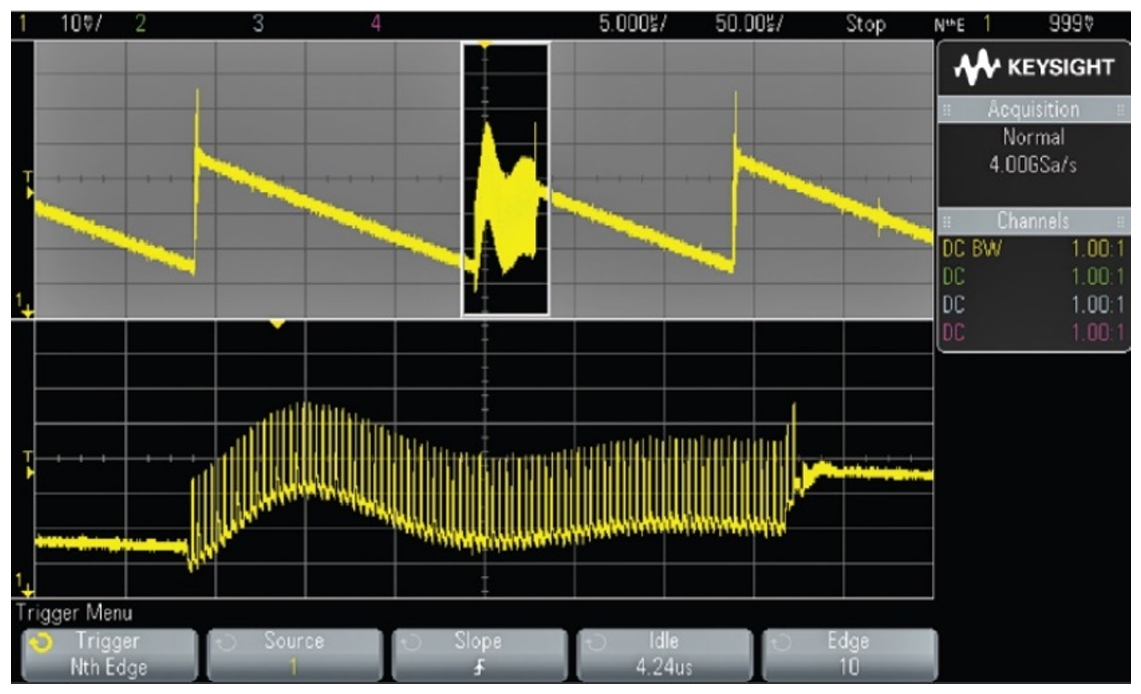

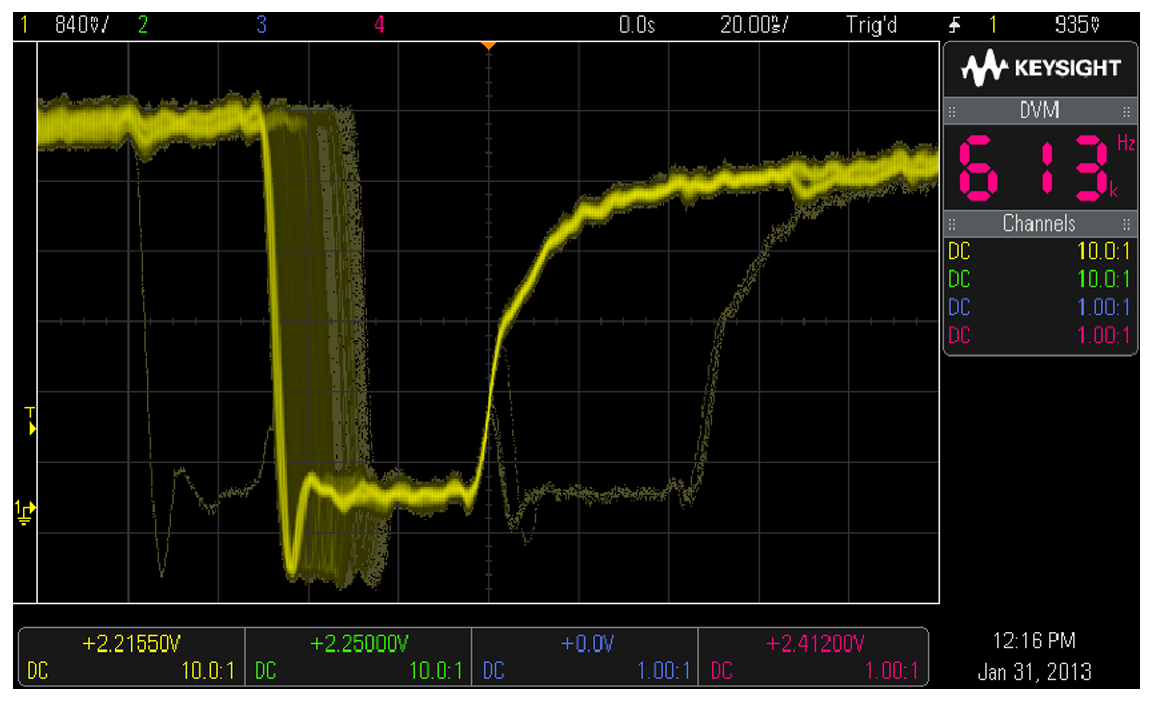

Fast update rate of the 3000 X-Series displaying the rare metastable signal.

Deeper memory for longer time capture

With 4 Mpts of MegaZoom IV deep memory, you can capture long, non-repeating signals while maintaining a high sample rate, then quickly zoom in on areas of interest. The InfiniiVision 3000 X-Series optimizes your deep-memory oscilloscope measurements by using MegaZoom IV technology to make the most effective trade-offs in sample rate, memory depth and waveform update rate automatically. Although many people think deeper memory is always better, usually deep memory means making tradeoffs. Oscilloscopes with deep memory require additional waveform processing time to acquire deep memory waveforms, which means waveform update rates will be reduced significantly. For this reason, most other oscilloscopes have manual memory-depth selections, and the typical default memory depth setting is usually relatively shallow (10 to 100 kpts). If you want to use deep memory in these other oscilloscopes, you must manually turn it on and deal with the update rate tradeoff.

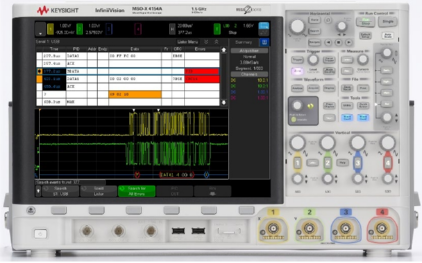

4M deep memory captured a long time span without losing the details.

Best-in-class oscilloscope and frequency counter

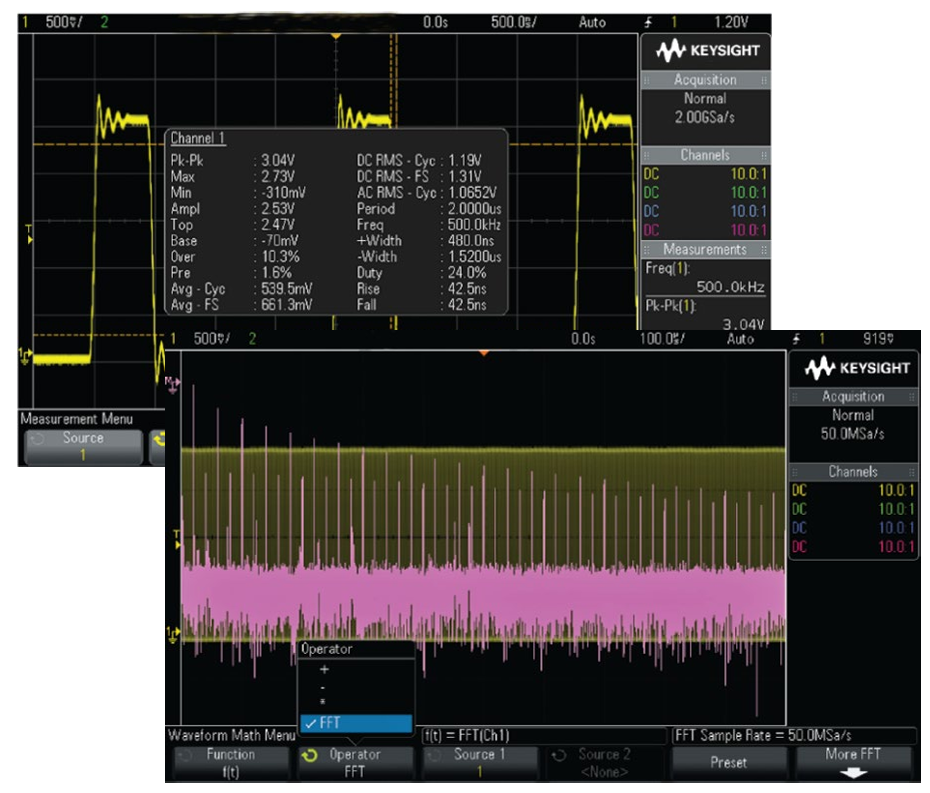

The InfiniiVision 3000 X-Series features 4 Mpts of memory with Keysight’s patented MegaZoom IV technology that is always enabled and always responsive providing the industry’s fastest update rate at up to 1 million waveforms per second, with no compromise if you turn on measurements, digital channels or protocol decodes. In addition, the 3000 X-Series offers 35 (50 with N2820A Series high-sensitivity AC/DC current probe) automated measurements, 10 parametric triggers, serial protocol triggers, as well as waveform math functions including FFT.
