产品描述：
Supports JEDEC Engineering Procedures JEP175 DDR4 Protocol Checks Updated real-time margin testing to the latest JEDEC specification JESD79-4 Load-Reduced DIMM support (LRDIMM) enables up to 16 ranks per DIMM Second slot support enables monitoring of a dual channel with one instrument – simultaneously More additions to the popular real-time performance measurements Create your own margin tests and find elusive problems

产品特点产品参数相关产品

产品特点

Key Performance Specifications

DDR4-3200
DDR3-3200
Interposers to connect to any DDR4 target
Interposers to connect to any DDR3 target
1G-sample acquisition depth
Thousands of real-time memory performance metrics
Real-time memory compliance margins and validation
All systems run concurrently (acquisition, performance, and compliance)
Continuous monitoring for up to 3.25 days
Updated to JEDEC JESD79-4B (June 2017) Specification
Programmable probe termination
11ps x 10mV x 40-channel analog characterization (iCiS™)
Continuous acquisition across clock stops and clock frequency changes
Trigger in and trigger out

Key Features

Integrated Windows 10 Controller
Application software ready for bench, remote-to-lab or offline operation
Application includes advanced listing, waveform, tables and charting
Turnkey setup, including automated MRW capture and analysis
Analyze thousands of real-time memory parameters
Full featured, industry standard trigger system
Automated analysis runs for everything from detailed setup information, to quick summary runs, to in-depth extended data logging or margin testing runs
Analog eye characterization on 20-channels simultaneously at 11ps x 10mV
Correlate with an oscilloscope for memory DQ data capture
Patented interposer/probe designs
Support for DIMM, SODIMM, miniDIMM, and/or x4/x8/x16 component interposers

Applications

DDR4 and/or DDR3
U-DIMM, R-DIMM, LRDIMM or component (x4/x8/x16/x32)
SODIMM or miniDIMM
Memory validation and debug
Monitoring bus traffic
Bus traffic measurement
Optimization of memory performance
Analog insight
DDR4 rates to DDR4-3200
DDR3 rates to DDR3-2667 (1.6GHz state clock capable)

Results Overview

Real-time Continuous Analysis

Real-time analysis provides data results during and after analysis runs which may be extremely long (days) or very short (nanoseconds). During the run, analysis is continuous and in real-time. Any event that occurs during the run is captured and analyzed.

Performance

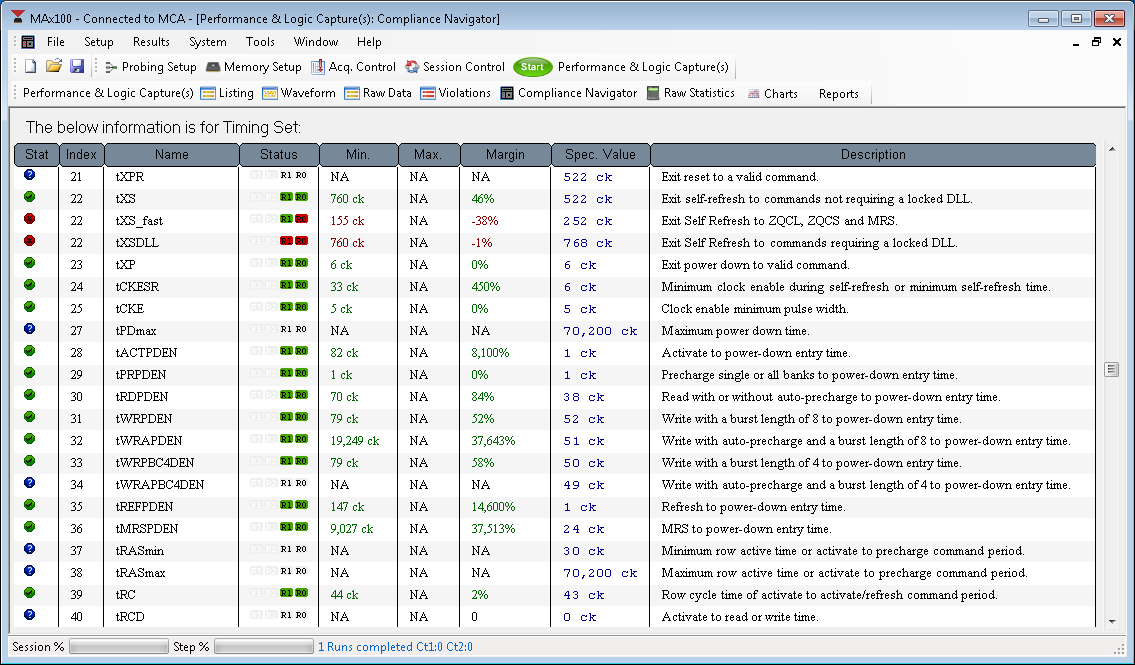

Memory performance metrics include realtime margin metrics and margin violations. For each margin test, results indicate test coverage, observed margin values, as well as flags indicating margin violations. All data is continuously acquired in real-time with results updates continuously while the analyzer is still running.

MA4100_Compliance_Margins

产品参数

DDR4 Configurations

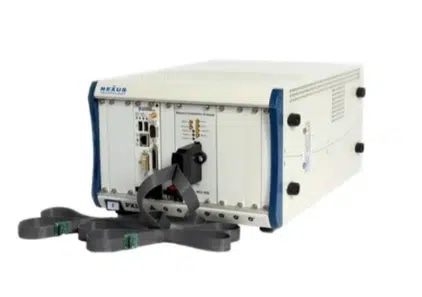

MA4150 DDR4

Memory analyzer with DDR4 performance, margins and capture up to DDR4-3200 (1.6GHz) with 1G-Sample acquisition depth. Additional support for DDR3 available as an option.

Nomenclature: NEX-MA4150-DDR4

Includes: Chassis w/Windows 10 PC Controller, MA4150 module enabled for DDR4, and Keyboard/Mouse

MA4100 DDR4

Entry level memory analyzer with DDR4 performance, margins and capture up to DDR4-2667 (1.34GHz) with 512M-Sample acquisition depth. Options include 1GSample, and DDR4-3200 (1.6GHz) support. Options also available to add DDR3 support.

Nomenclature: NEX-MA4100-DDR4

Includes: Chassis w/Windows 10 PC Controller, MA4100 module enabled for DDR4, and Keyboard/Mouse

MA4120 DDR4

Logic analyzer capture only up to DDR4-3200 (1.6GHz) with 512M-Sample acquisition depth. Options available for 1GSample, performance, and margins. Options also available to add DDR3 support.

Nomenclature: NEX-MA4120-DDR4

Includes: Chassis w/Windows 10 PC Controller, MA4120 module enabled for DDR4, and Keyboard/Mouse

DDR3 Configurations

MA4100 DDR3

Memory analyzer with DDR3 performance, margins and capture up to DDR3-2133 with 512M-Sample acquisition depth. Option for 1G-Sample. Options also available to add DDR4 support at DDR4-2667 or DDR4-3200

Nomenclature: NEX-MA4100-DDR3

Includes: Chassis w/Windows 10 PC Controller, MA4100 module enabled for DDR3, and Keyboard/Mouse
