]NEXUS LPDDR协议分析仪MA5100 Series Memory Analyzer_协议分析仪_分析仪器设备_产品中心

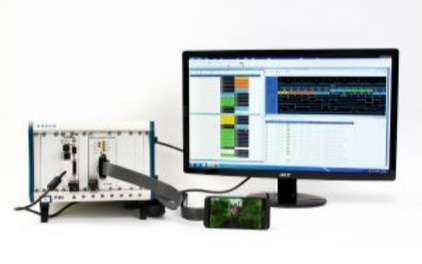

Application software ready for bench, remote-to-lab or offline operation
Application includes advanced listing, waveform, tables and charting
Turnkey setup, including automated MRW capture and analysis
Patented interposer/probe designs
Analyze thousands of real-time memory parameters
Full featured, industry standard trigger system
Automated analysis runs for everything from detailed setup information, to quick summary runs, to in-depth extended data logging or margin testing runs
ClockSafe™: Continuous analysis across clock stops and clock frequency changes
Analog eye characterization on 20-channels simultaneously at 11ps x 10mV
Correlate with an oscilloscope for memory DQ data capture
Integrated Windows 10 Controller

Applications

DDR5, LPDDR5, LPDDR5x, LPDDR4, LPDDR4x and/or LPDDR3
Memory validation and debug
Monitoring bus traffic
Bus traffic measurement
Optimization of memory performance
Analog insight
JEDEC JESD79-5 rates to DDR5-4800
JEDEC JESD209-5 rates to LPDDR5X-9600
JEDEC JESD209-4 rates to LPDDR4X-4267
JEDEC JESD209-3 rates to LPDDR3-2133

Results Overview

State Capture

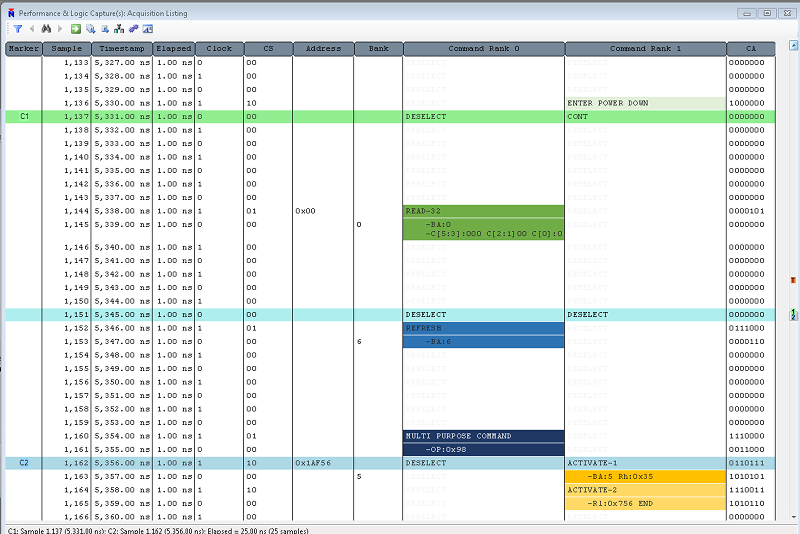

State capture results include continuous traffic around one or more events of interest. The traffic, which may consist of time, bus commands, bus addressing, margin violations, and trigger events, is presented in listing or waveform displays. State capture depths from one hundred samples to one billion samples is available. Advanced acquisition controls monitor and respond to the continuous traffic in real-time to best utilize the state capture memory. Advanced post-capture search and filter can quickly parse the acquisition store.

MA5100-LPDDR5-Command-Listing

产品参数

Real-time Continuous Analysis

Real-time analysis provides data results during and after analysis runs which may be extremely long (days) or very short (nano-seconds). During the run, analysis is continuous and in real-time. Any event that occurs during the run is captured and analyzed.

Performance

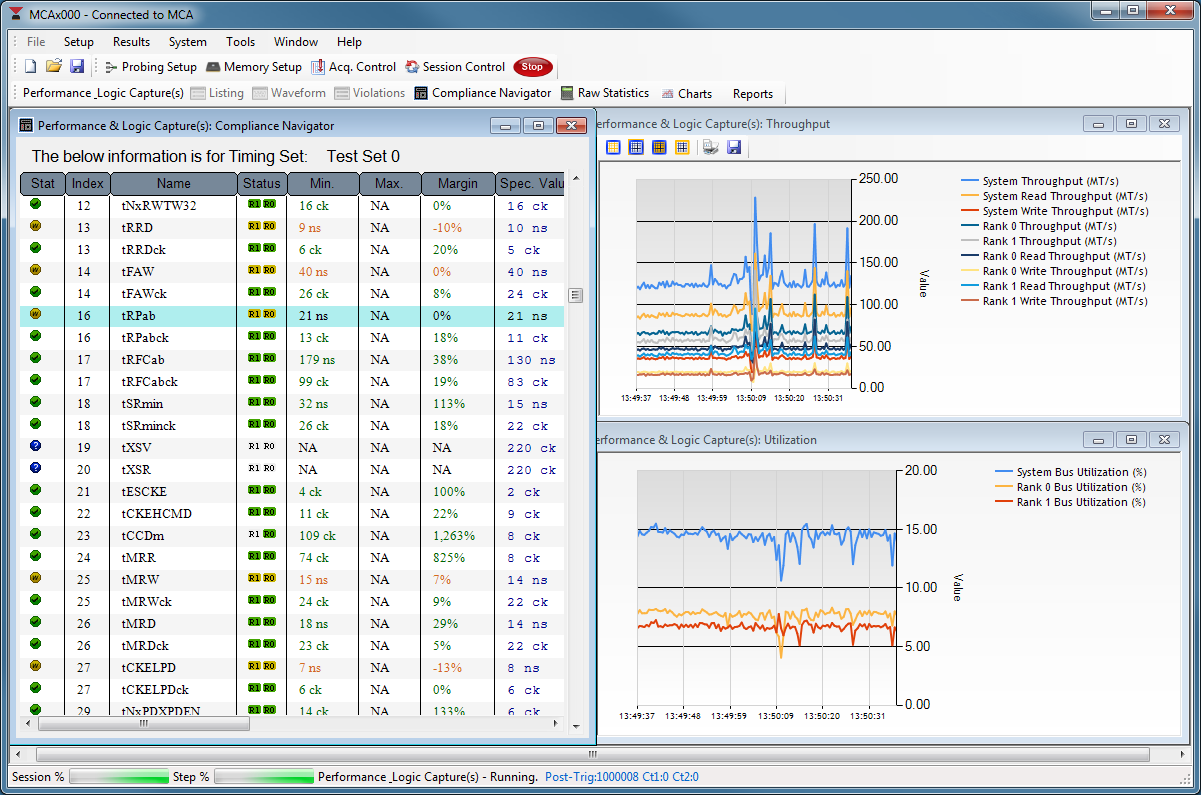

Memory performance metrics include real-time margin metrics and margin violations. For each margin test, results indicate test coverage, observed margin values, as well as flags indicating margin violations. All data is continuously acquired in real-time with results updates continuously while the analyzer is still running. Memory performance metrics also include continuous real-time charting of bus performance characteristics such as throughput, utilization, power management, and more.

MA5100_performance
