基础型频谱分析仪

产品描述：
无论您是对新设计进行优化，还是平衡生产车间的测试吞吐量和准确度，或是提供维护服务和验证现场设备，您都需要使用一款合适的工具。我们的基础型射频频谱分析仪提供了超值的通用功能，可在 9 kHz 至 7 GHz 的频率范围内执行准确射频测试。

产品特点产品参数相关产品

产品特点

在高达 7 GHz 频率范围内提供性能可靠的射频测试，让您花同样的预算获得更高的分析效率。
利用优化的测量速度和增值功能，提高射频测试效率
提升了易用性，可以缩短学习时间，提高测试效率
具有多种功能（包括频谱分析、信号监测和传输/反射测量），可以满足更多射频测试需求

Outperform Basic Expectations

Power measurements made easy

One of the most fundamental measurements performed by spectrum analyzers is the frequency domain measurement of RF power. However, detailed analysis of a signal often requires standards-defined spectral masks or more complex power, bandwidth, and detector measurement combinations. With its one-button PowerSuite the N9322C makes it easy to measure channel power, occupied bandwidth (OBW), adjacent channel power ratio (ACPR), spectrum emission mask (SEM).

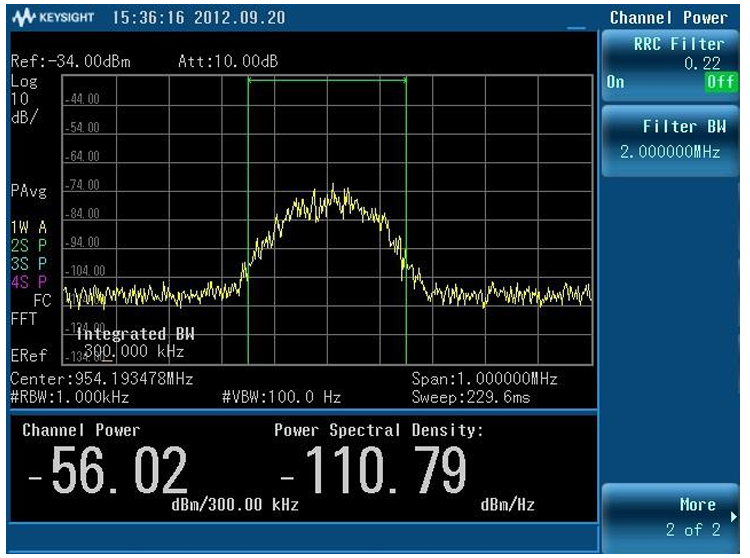

Figure 1. Channel power measurement

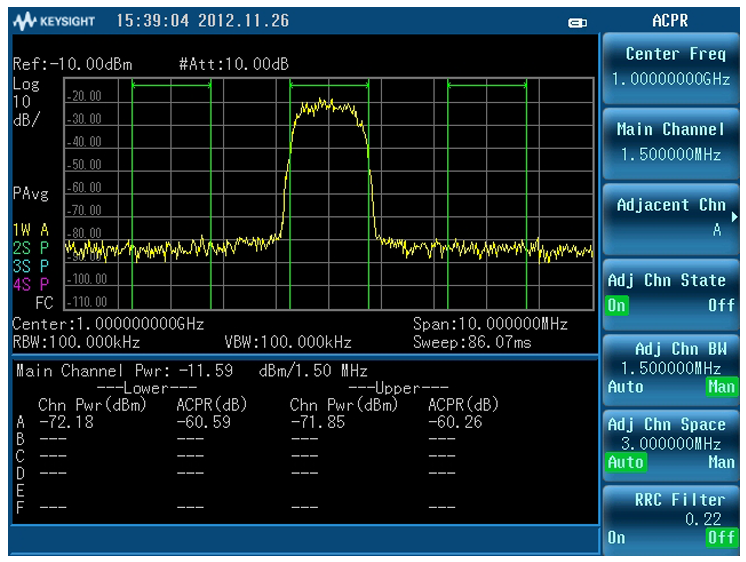

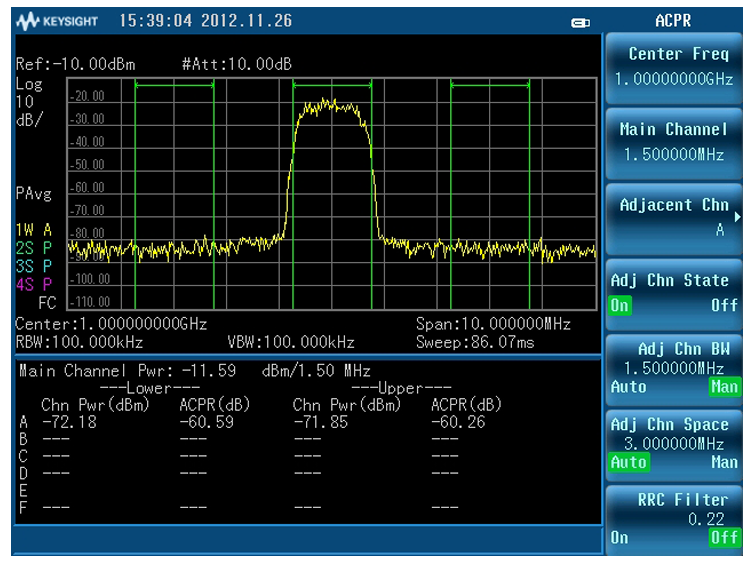

Figure 2. ACPR measurement

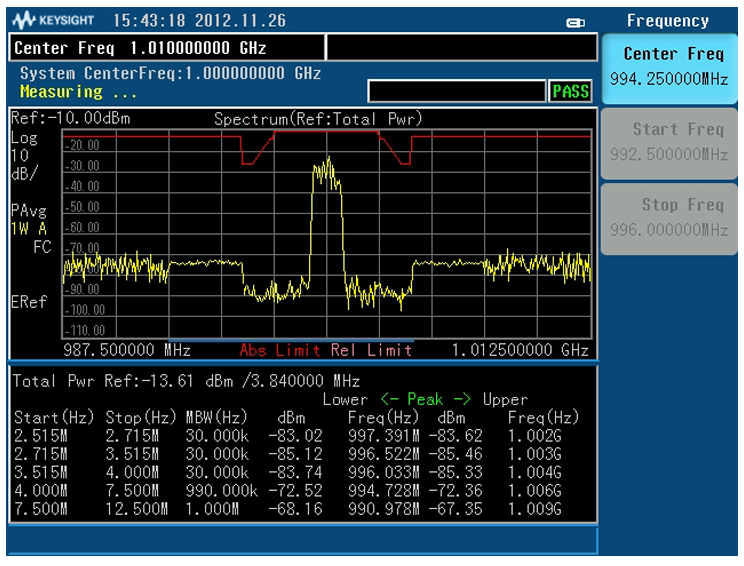

Figure 3. SEM measurement

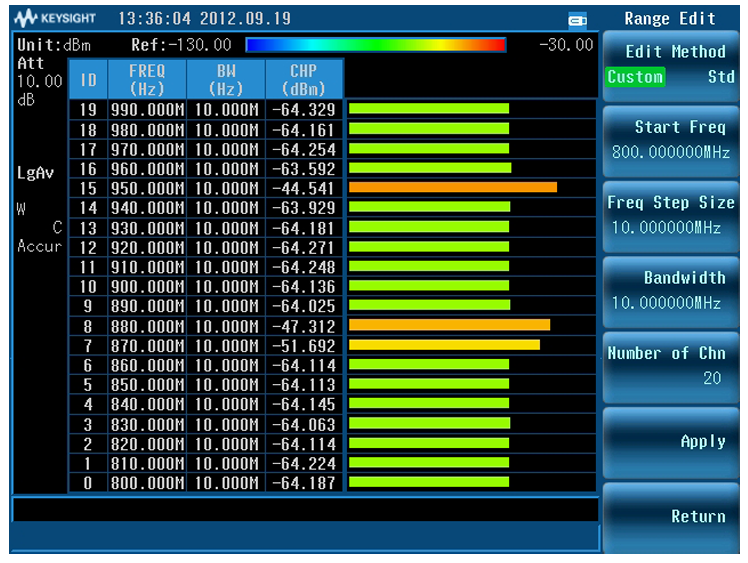

Figure 4. Option SCN (Channel scanner) for simultaneous channel power measurement

ASK/FSK demodulation analysis

The ASK/FSK modulation has been widely adopted in low power, low data rate RF communications, because it ties low cost, high performance wireless connectivity with long battery life. Today, ASK/FSK modulation technology is embedded in a variety of products and systems, ranging from personal consumer electronics, automotive electronics, RFID, and automatic meter reading, to giant industrial devices.

The N9322C with Option DMA offers a cost-effective ASK/FSK demodulation analysis solution for you.

• It supports four display modes: symbol, waveform, ASK/FSK error, and eye diagram.

• The demodulation metrics include carrier power, ASK modulation depth, ASK modulation depth, FSK frequency deviation, ASK/FSK error, ASK index, and more.
