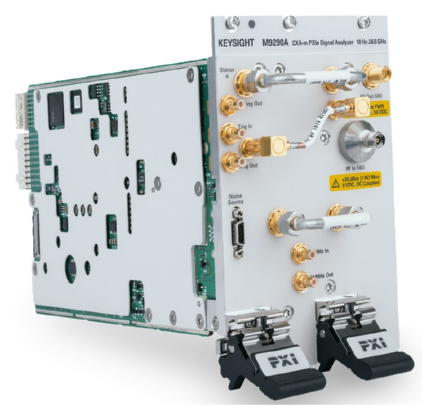

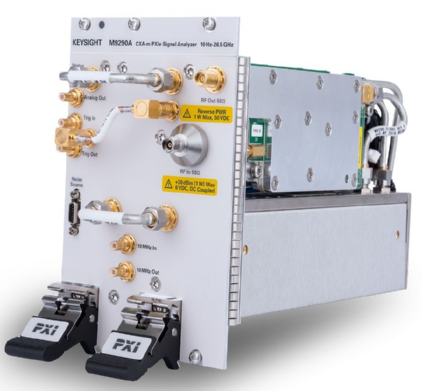

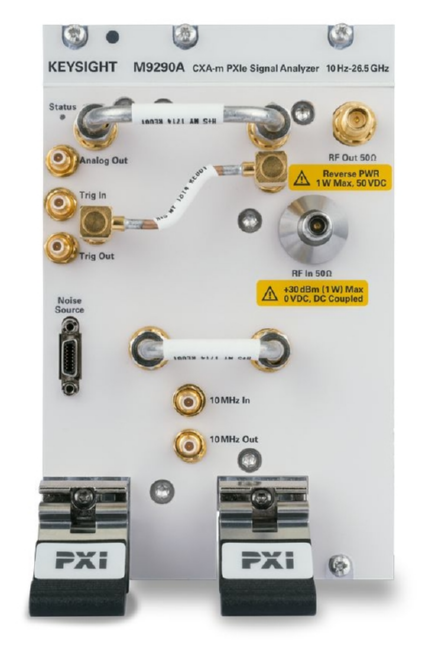

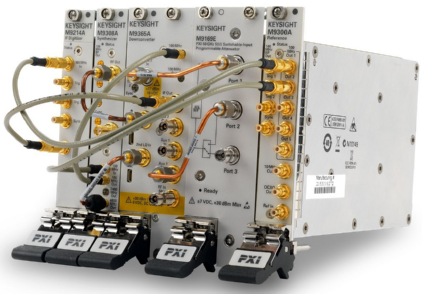

模块化PXI 矢量信号分析仪

产品描述：
PXI 矢量信号分析仪为您的单通道或多通道模块化测试解决方案提供了构建模块，其小巧的体积有利于进行扩展和灵活组装。通过共享处理器、框架或机箱、显示器和接口，您可以根据实验室的需求来定制您的测试机架。是德科技的 PXI 和 PXIe 信号分析仪是设计验证和制造应用的理想选择，有助于实现快速测量、控制质量、保证产品一致性和优化测试。

产品特点产品参数相关产品

产品特点

5G Channel Sounding

Accelerate 5G channel sounding research with mmWave, ultra-broadband and MIMO solution.– Fastest data capture with real-time correlation and wideband MIMO channel processing– System-wide calibrations, precise timing, and synchronization– Flexible and scalable evolving MIMO channel count – Tx/Rx up to 44 GHz with 1 GHz bandwidth for 4 or 8 MIMO channel– Capture multiple, phase coherent channels for real-time processing of Channel Impulse Response (CIR) in on-board FPGAs

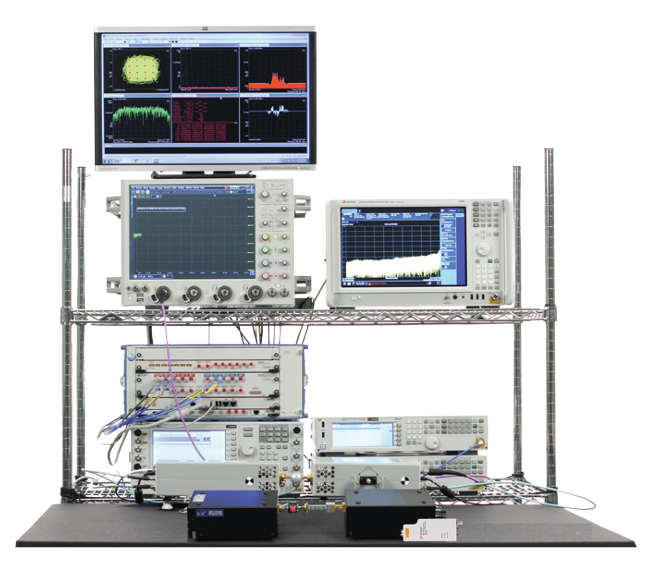

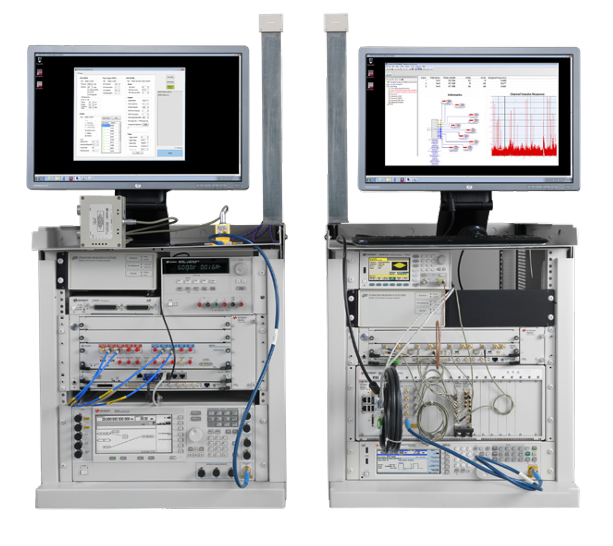

5G Waveform Generation and Analysis Testbed

Generate and analyze emerging 5G candidate waveforms at RF, microwave, and millimeter-wave frequencies with modulation bandwidths of up to 2 GHz. The flexible testbed includes a precision AWG, vector signal generator with wideband I/Q inputs and signal-creation software capable of generating wideband test signals with up to 2 GHz of modulation bandwidth at frequencies up to 44 GHz (and higher with upconverters). The 89600 VSA software can be used for signal demodulation and analysis, from inside the simulation software, or on a signal analyzer, oscilloscope or PC.

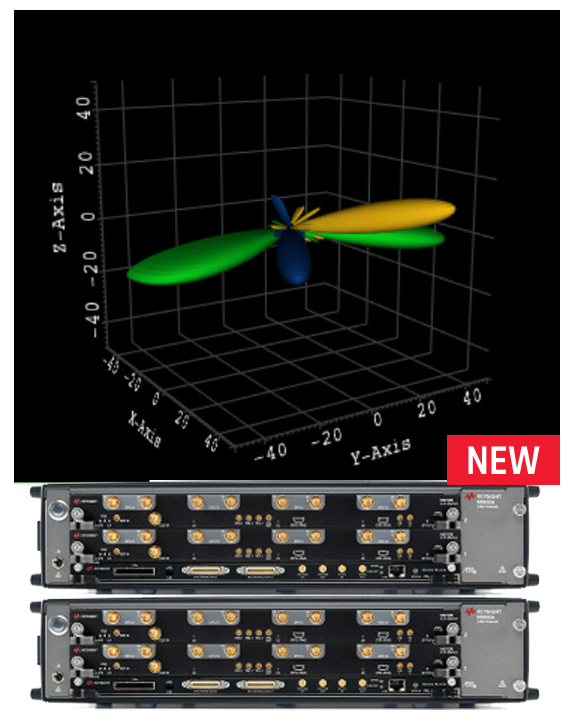

Full Dimension MIMO Multi-Channel

As MIMO extends to full-dimension azimuth and elevation beam steering, with 64, 128 and more antenna elements, practical and comprehensive measurement techniques are needed to verify and qualify designs. Keysight’s multi-channel, phase coherent test solutions can be configured to quickly and precisely align active antenna array elements, in amplitude, phase and time.

This reference solution allows you to evaluate cellular MIMO beamforming performance, corrected for fixturing offsets, with ready-to-use RF parametric tests and 3D beamforming visualization. Rapidly verify your beamforming algorithms and hardware performance - let Keysight take care of MIMO test development and optimization.

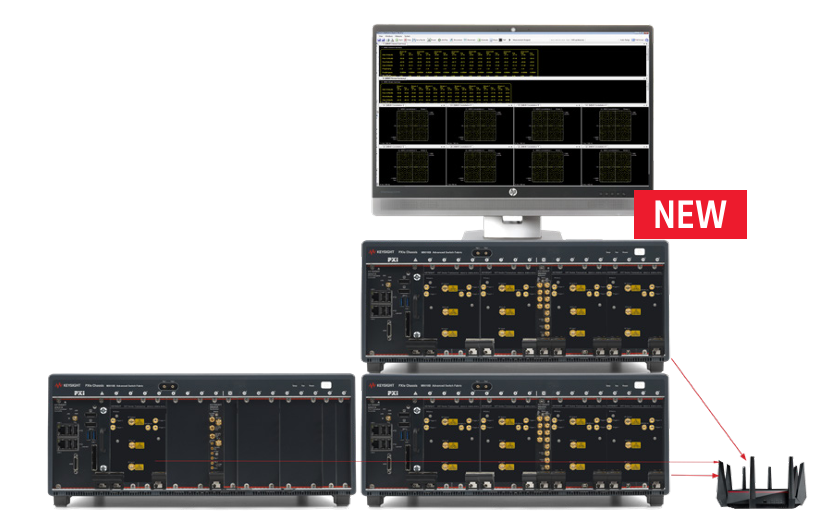

802.11ax Test Solution

Deploy ready-to-use software that fully supports required 802.11ax test parameters, from SISO to 2x2/4x4/8x8 MIMO test, across R&D, design verification, and manufacturing test. The common user interface and software control across hardware platforms means you can easily reuse test procedures across R&D, design verification, and manufacturing, saving valuable development time.

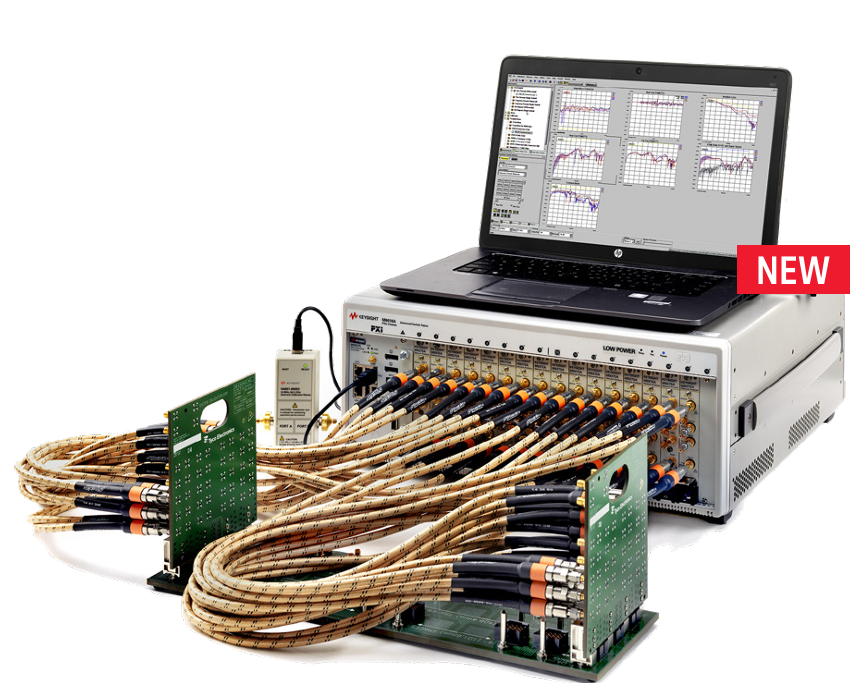

Digital Interconnect Test

Quickly test high port count DUTs with our turnkey 32-port, 26.5 GHz Vector Network Analyzer-based solution, built for testing of cables, backplanes, PCBs, daughter cards, IC packages, and connectors. This reference solution provides full signal integrity characterization of interconnects with multi-domain analysis including time, frequency, eye diagram, crosstalk and more in one, compact instrument. Easily transform the intuitive digital interface for use in production test with a customizable API wrapper.

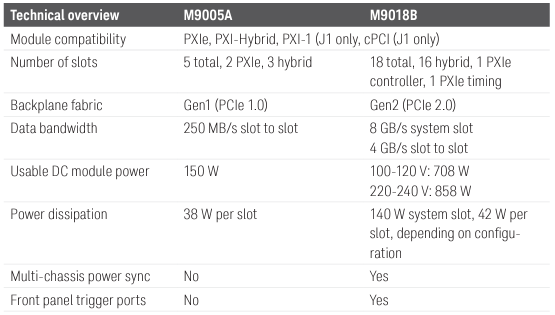

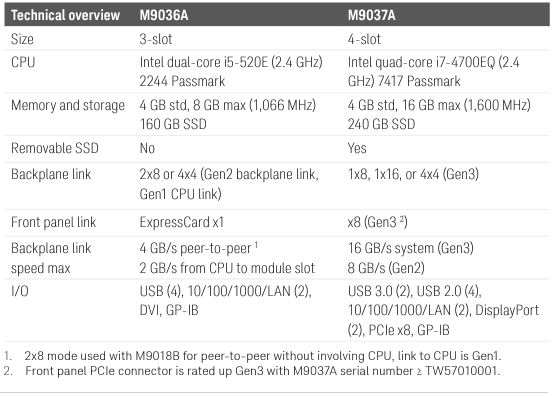

产品参数
