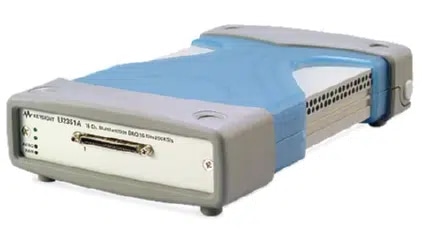

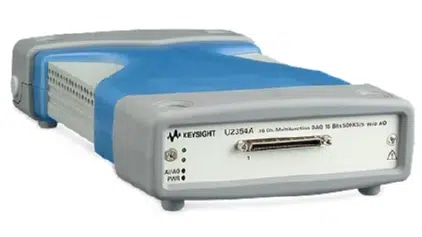

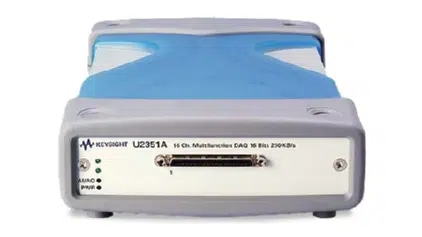

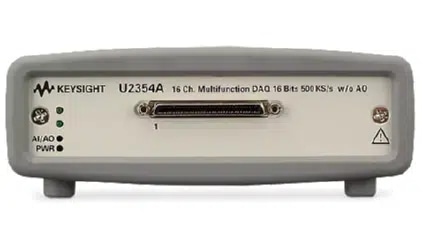

U2300A系列USB模块化多功能数据采集系统

产品描述：
Keysight U2300A 系列数据采集系统（DAQ）提供了 4 种基本型号和 3 种高密度型号，它们均是数据记录、测量或监测的理想选择。快速采样率使 U2300A 数据采集器件系列成为研发、制造和设计验证等应用的理想选择。

产品特点产品参数相关产品

产品特点

特点

单通道采样率高达 3 MSa/s
高速 USB 端口支持即插即用和热插拔
当集成到 U2781A 模块化产品机箱中时，可提供多达 384 个通道

高性能，拥有 12 位到 16 位的分辨率
24 位可编程数字输入/输出
包含 BenchVue 软件，可以快速设置并将数据记录到计算机中

Features

• Up to 3 MSa/s sampling rate for a single channel

• Functions as a standalone or modular unit

• Easy to use: Plug-and-play and hot swappable with Hi-Speed USB 2.0

• Up to 384 channels when incorporated into U2781A modular product chassis

• Easy-to-use bundled software for quick setup and data logging to PC

• 12-bit or 16-bit analog-to-digital (A/D) resolution

• 24-bit programmable digital input/output

• Self-calibration capability

• Compatible with a wide range of Keysight Development Environments (KDEs)

• USB 2.0 and USBTMC-USB488 standards

• NEW! Control, automate and simplify with Keysight BenchVue software. Now included.

High sampling rate

The U2300A Series DAQ devices can generate sampling rates of up to 3 MSa/s for a single channel. When multiple channels are configured, the device can sample data up to 1 MSa/s. The fast sampling capability allows users to perform intermittent detection easily. This is ideal when dealing with high density analog input/output signals especially when juggling between different input ranges and sampling requirements.

Flexible standalone or modular capability

The U2300A Series DAQ devices are uniquely designed with the flexibility to function as a standalone unit or as a part of a modular unit. When used together with the U2781A modular product chassis, the devices has the capability to support up to 384 channels.

Flexible system and control options with polling and continuous mode

The U2300A Series DAQ devices have two modes, polling mode and continuous mode. Selecting continuous mode enables you to acquire data continuously once the trigger signal is received.

Arbitrary waveform

Designed to support arbitrary waveforms, the U2300A Series allows you to generate arbitrary waveform via SCPI commands.

Burst mode

Equipped with the burst mode, the enhancement feature enables simultaneous mode for analog input acquisition. Now can you can perform sampling measurement up to the highest possible speed of the DAQ.

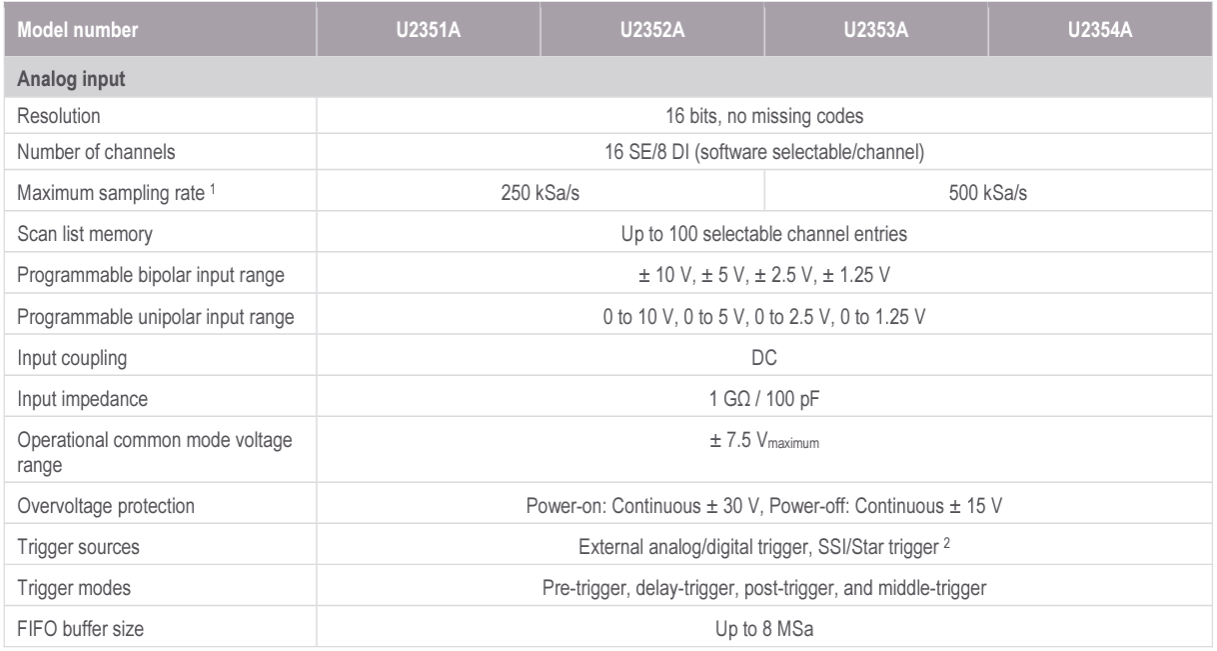

产品参数
