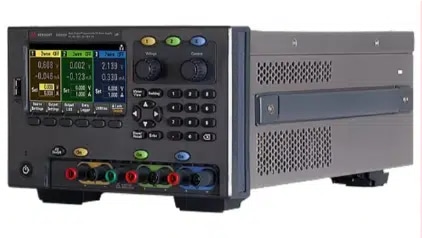

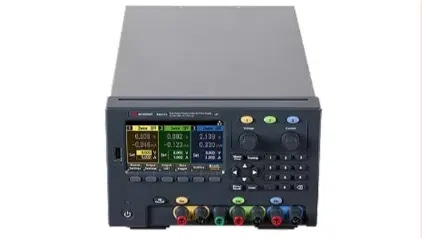

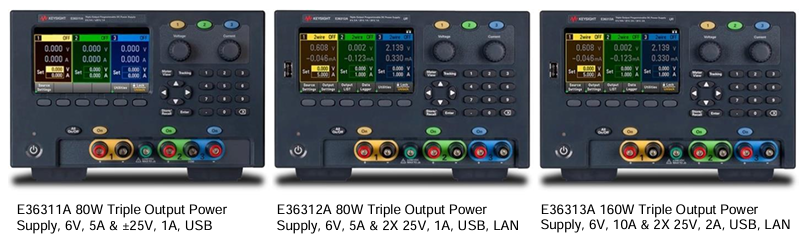

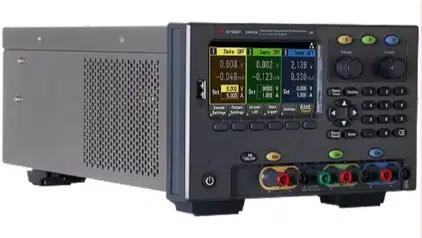

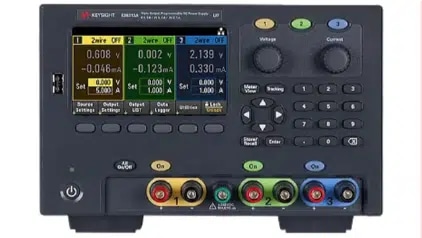

E36300 系列三路输出电源

产品描述：
E36300 系列三路输出电源已为您的工作台应用做好准备。它具有很低的输出纹波/噪声，可执行准确的电压/电流测量，让您可以充满信心地进行测试。它可为多个电压总线提供纯净、可靠的电源，并可同时显示所有输出的电压和电流。您还可以使用多个先进功能，例如数据记录、输出排序、列表模式和输出耦合。

产品特点产品参数相关产品

产品特点

特点

低输出噪声——纹波和噪声小于 350 µVrms
准确的编程和回读，准确度 < 0.04%
出色的稳定度，线路和负载调节稳定度达到 0.01%
所有三路输出彼此绝缘，可以独立设置
4 线传感可以提高测量准确度
过压和过流器件保护
连通性：USB、LAN（LXI Core）、GPIB（可选）

Features

Clean, reliable power

• Low output ripple and noise

• Excellent programming/readback accuracy

• Excellent line/load regulation: 0.01%

• 2-wire or 4-wire remote sense

• Over voltage, over current, and over temperature protection

Intuitive and easy to use interfaces

• 4.3-inch LCD color display

• Color-coded channels

• Individual knobs for voltage and current

• E3631A code compatible

• LAN (LXI), USB and GPIB (optional)

Convenient benchtop capabilities

• Three independent power supplies in one box

• Low acoustic noise

• Auto series/parallel connections

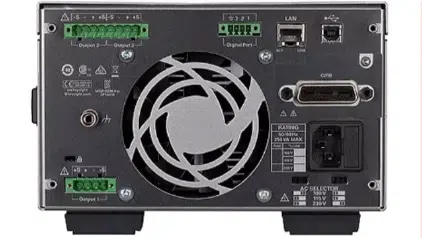

• Front and rear output terminal

Advance characterization

• Data logging

• Output sequencing

• LIST mode

• Low current range measurement

Confidently supply your DUT with clean, reliable power

Accurate voltage/current programming and readback capability provide excellent control on the power supply and power measurement. The low, normal mode noise specifications assure quality power for precision circuitry applications, enabling you to power your design with confidence. Besides the 0.01% load and line regulation, the E36300 Series can also maintain a steady output when power line and load changes occur, giving you more peace of mind. The built-in capability to measure low range current (< 20 mA) reduces the need for an external multimeter and simplifies the setup.

Improved measurement accuracy with 4-wire sensing

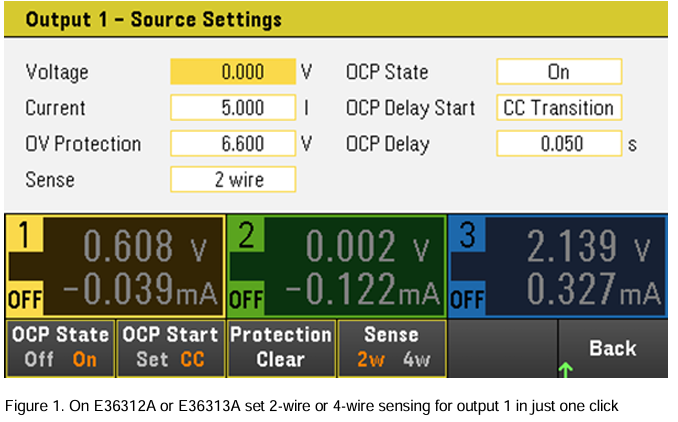

To further improve the voltage regulation and measurement accuracy of the DC outputs, the E36312/13A models offer 4-wire sensing capability, also called remote sensing, on each of the rear terminals. Remote sensing permits the output module to monitor and regulate its output voltage directly at the DUT input terminals instead of the power supply’s output terminals. Four wire sensing is particularly useful for compensating for the voltage drops in the power leads when using the higher output currents generated by the E36313A. For convenience, an internal relay controls switching between 2-wire mode (local sensing) and 4-wire mode (remote sensing) thus eliminating the need for shorting bars or jumpers commonly found on other bench power sources.

Keysight understands that protecting your DUT is crucial to limit testing, so the E36300 Series includes Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP) to prevent damage.

Reduce space, cost and noise with convenient benchtop capabilities

All three outputs on the E36300 Series can be turned on and off independently, so you are essentially getting three power supplies in one instrument which saves cost on maintenance. It also saves space on the bench as you can power up multiple analog/digital circuitries or devices with a single instrument.

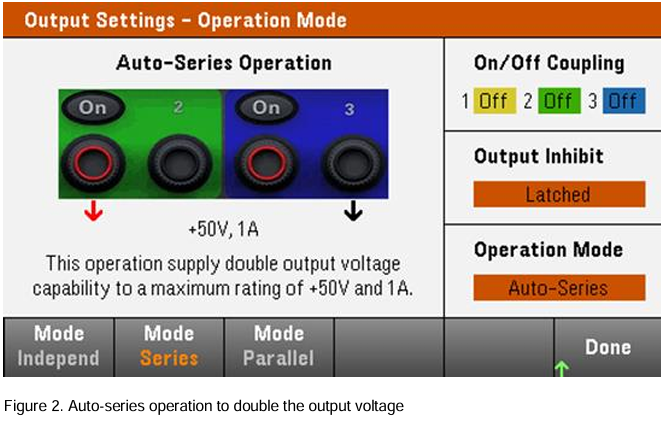

For even more voltage or current, Channel 2 and Channel 3 of the E36312/13A set series or parallel mode on the front panel to double the output voltage (up to 50 V) or current (up to 4 A) respectively.

The E36300 Series is one of the quietest power supplies in its class. It automatically lowers the fan speed under the load/ no load condition to eliminate annoying acoustic noise through a thermal control circuit. At a typical noise level of less than 26 dBA under no load condition and less than 50 dBA under full load condition, it allows you to work in a quiet and undisturbed environment.
