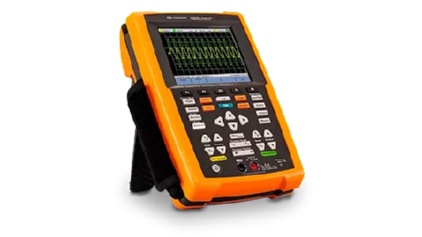

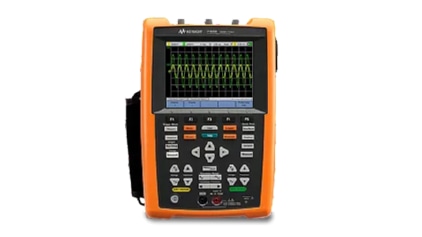

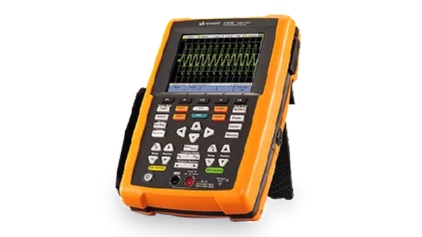

U1600 系列手持示波器

产品描述：
U1600 系列手持示波器专为满足各种安装和维护应用的便携性需求而设计，它能够清晰显示波形，轻松进行波形分析并快速隔离信号毛刺。通过将高性能功能整合到一个结实耐用的仪器中，移动故障诊断将变得轻松异常。

产品特点产品参数相关产品

产品特点

符合 CAT III 600V 通道间隔离度标准，能够安全地执行大功率信号分析
高达 200 MSa/s 采样率和 2 Mpts 深存储器，让您对信号细节一览无余
提供 10 种本地化用户界面任您灵活选择
双窗口缩放功能支持您轻松识别并放大问题区域，以进行更详细的分析
提供三种显示模式（室内、室外或夜间），使用户可在任何光线条件下进行信号调试

Retool your expectations using the leading-edge VGA display handheld oscilloscope with two isolated channels

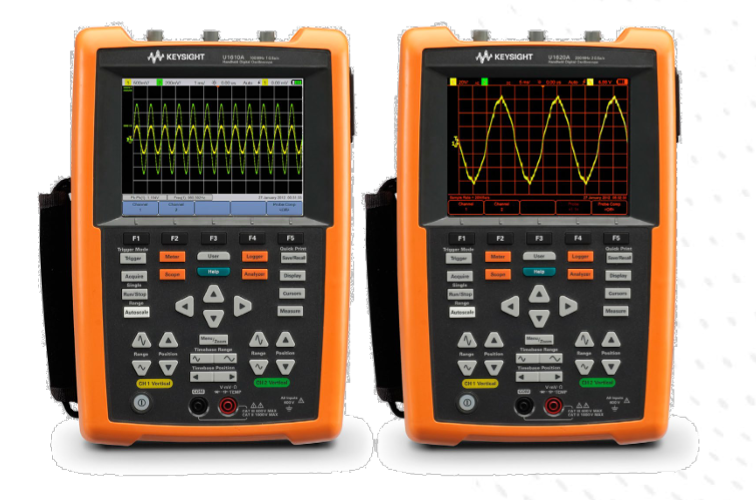

The Keysight U1610A/U1620A is a pioneering handheld oscilloscope with a VGA display. This 100/200 MHz handheld oscilloscope offers a floating measurement capability with two CAT III 300 V isolated channels. With up to 2 GSa/s sam- pling rate and 2 Mpts memory depth, it captures more waveforms from signals such as pulse width modulated circuit, in rush, transient, and motor start up sequences. The benchtop-like display and dual window zoom allow you to easily identify problem areas and zoom in for more detailed analysis. Now, you can view signals in detail and detect glitches easily.

Features

• 100/200 MHz bandwidth with two isolated channels

• 5.7-inch VGA TFT LCD display with 3 selectable viewing modes (indoor, outdoor and night vision)

• 2 Mpts memory depth and 2 GSa/s sampling rate allows detailed analysis of captured glitches • 10,000-count resolution on DMM display

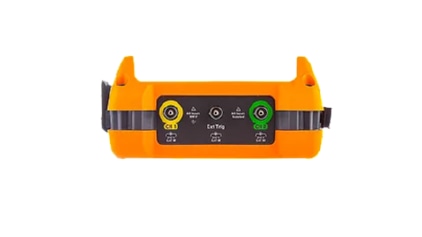

• Channel-to-channel isolation with CAT III 300 V safety ratings

• Data logging capability to PC

• 10 selectable languages on the User Interface (UI) system.

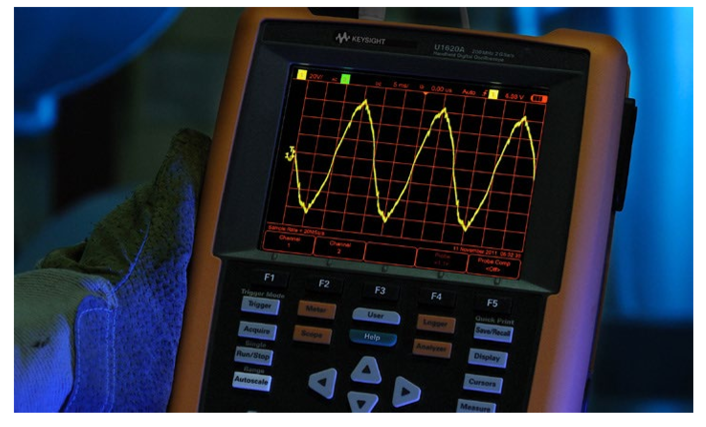

5.7-inch VGA display with 3 selectable viewing modes

Visualizing electrical waveforms has never been in such clarity. Our U1610A/U1620A oscilloscope comes with a 5.7-inch VGA TFT LCD display that enables clear viewing of measurements on-site and on the field. With the option of up to three viewing modes, users can now view waveforms under all lighting conditions, including in indoor, outdoor or dark environments. All three viewing modes have predefined contrast levels for customized lighting conditions and optimized battery life.

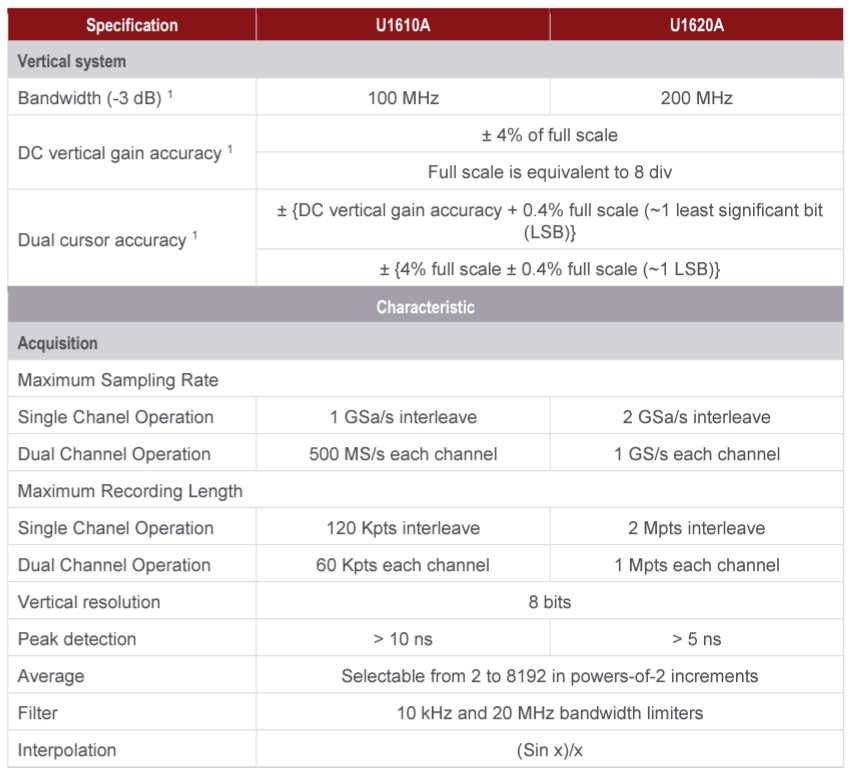

产品参数
