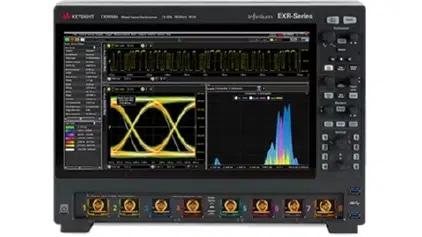

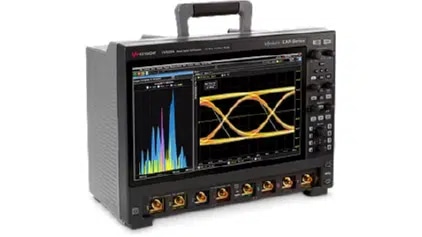

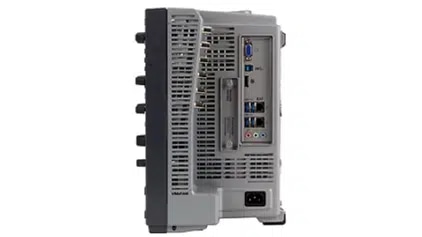

Infiniium EXR 系列示波器

产品描述：
7 合 1 示波器，全部 8 个通道均可提供最高 6 GHz 的带宽，并具有出色的硬件加速绘图功能，还支持全面升级。

产品特点产品参数相关产品

产品特点

全部 4 个或 8 个模拟通道的带宽最高可达 500 MHz 至 6 GHz
采用是德科技为 Infiniium UXR 系列设计的相同 ASIC，具有强大的处理能力
7 合 1 综合型仪器可以提供以下仪器的功能：示波器、逻辑分析仪和协议分析仪、DVM、计数器、波特图绘图仪、波形发生器
可以全面升级，包括通道数升级

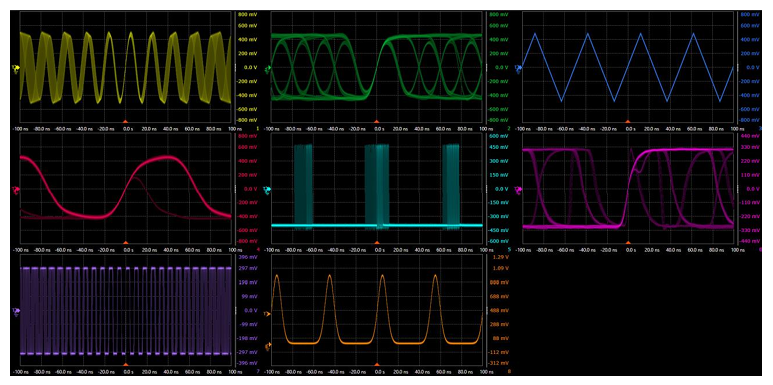

See More in the Time Domain with Eight Analog Channels

The Infiniium EXR-Series offers up to 6 GHz of bandwidth and 16 GSa/s sample rate on every single one of its four or eight channels. Combined with 100 Mpts of standard memory per channel, flexible threestage triggering, over 50 standard measurements, a massive library of application-specific packages, and ASIC-accelerated testing, the Infiniium EXR-Series lets you see more of your signal than ever before.

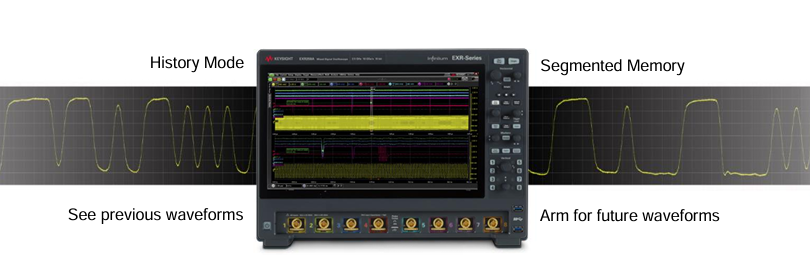

See More Information with History Mode and Segmented Memory

The Infiniium EXR-Series comes standard with two useful tools that allow you to look forward and backward in time. With history mode, simply stop the oscilloscope at any time to review up to 1,024 previous trigger events. With segmented memory, you can capture > 100,000 events post-trigger for analysis, with no limit between events. If your design has an elusive event that only seems to happen when you’re not around, these tools arm the oscilloscope to look for it, then let you review what gets captured at your leisure. And with a full HD screen of 1920x1080 pixels, and support for a second, independent external monitor, that data can be organized and displayed however is best for you.

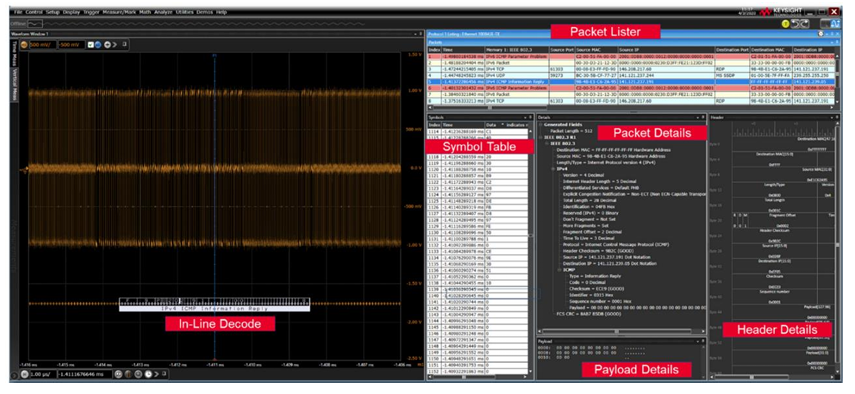

Industry-Specific Protocol Testing

Protocol trigger and decode packages make it easy to debug and test digital designs. Get access to a rich set of integrated protocol-level triggers specific to each serial bus. When serial triggering is selected, the application enables special, real-time triggering hardware inside the scope. Hardware-based triggering ensures that the scope never misses a trigger event when armed. The hardware takes signals acquired using either analog or digital channels and reconstructs protocol frames. It then inspects these protocol frames against specified protocol-level trigger conditions and triggers when the condition is met. Visit the web pages and data sheets for each package to learn more – available triggers and decodes are in the configuration guide section of this document. Consider our D9011BDLP package that enables dozens of protocol triggers and decodes into one affordable and easy to order bundle!

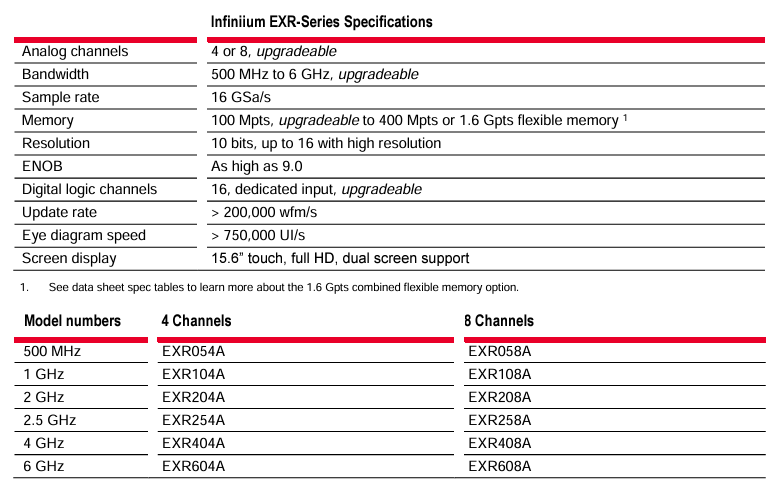

产品参数
