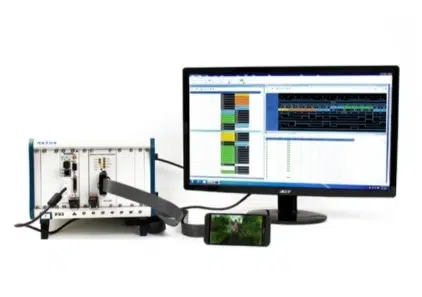

]MA5100 Series Memory Analyzer_协议分析仪_分析仪器设备_产品中心

产品描述：
LPDDR5-6400 LPDDR4-4267 LPDDR4x-4267 ClockSafe™ 20 input channels 1G-sample acquisition depth Programmable probe termination 11ps x 10mV x 20-channel analog characterization (iCiS™) Real-time smart single frequency or 16 frequency analysis Real-time memory performance metrics Real-time memory compliance margins and validation Trigger in and trigger out

产品特点产品参数相关产品

产品特点

Key Features

Integrated Windows 10 Controller
Application software ready for bench, remote-to-lab or offline operation
Application includes advanced listing, waveform, tables and charting
Turnkey setup, including automated MRW capture and analysis
Analyze thousands of real-time memory parameters
Full featured, industry standard trigger system
Automated analysis runs for everything from detailed setup information, to quick summary runs, to in-depth extended data logging or margin testing runs
ClockSafe™: Continuous analysis across clock stops and clock frequency changes
Analog eye characterization on 20-channels simultaneously at 11ps x 10mV
Correlate with an oscilloscope for memory DQ data capture
Patented interposer/probe designs

Applications

LPDDR5, LPDDR4, LPDDR4x and/or LPDDR3
Memory validation and debug
Monitoring bus traffic
Bus traffic measurement
Optimization of memory performance
Analog insight
LPDDR5 rates to LPDDR5-6400
LPDDR4 rates to LPDDR4-4267
LPDDR4x rates to LPDDR4x-4267
LPDDR3 rates to LPDDR3-2133

Results Overview

Real-time Continuous Analysis

Real-time analysis provides data results during and after analysis runs which may be extremely long (days) or very short (nano-seconds). During the run, analysis is continuous and in real-time. Any event that occurs during the run is captured and analyzed.

Performance

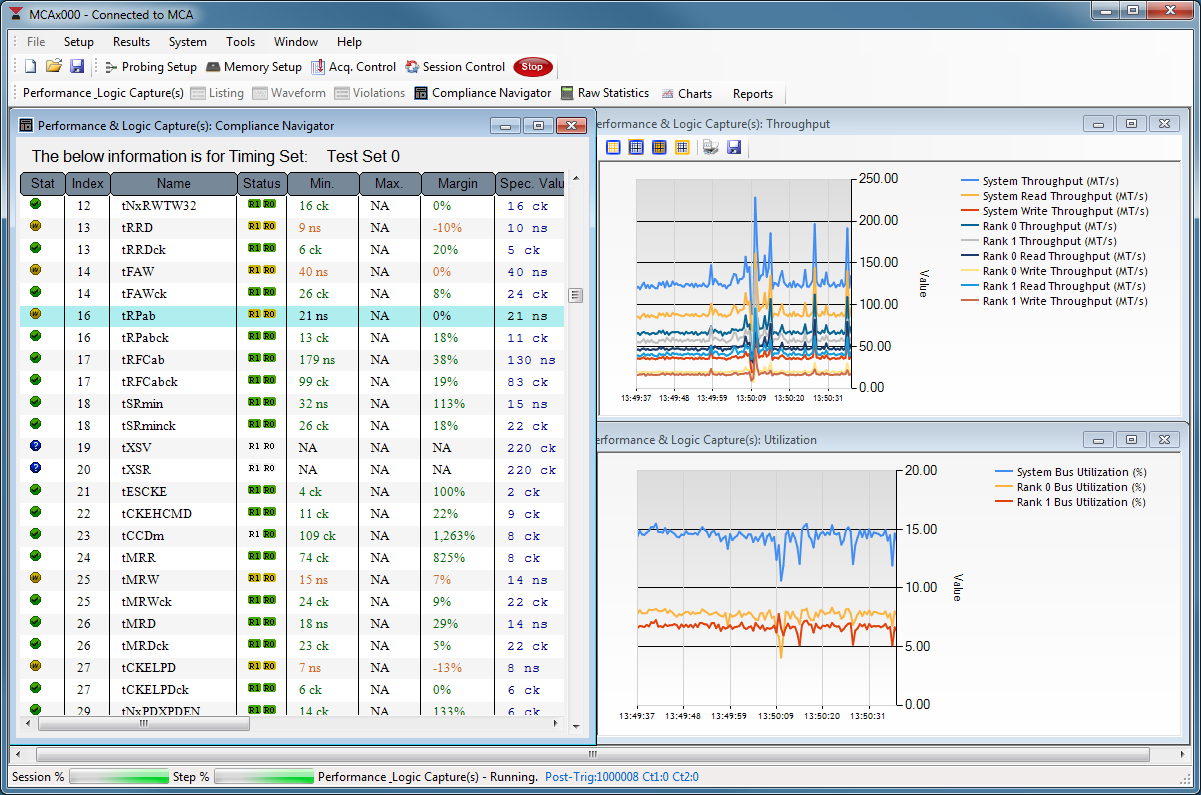

Memory performance metrics include real-time margin metrics and margin violations. For each margin test, results indicate test coverage, observed margin values, as well as flags indicating margin violations. All data is continuously acquired in real-time with results updates continuously while the analyzer is still running. Memory performance metrics also include continuous real-time charting of bus performance characteristics such as throughput, utilization, power management, and more.

MA5100_performance

产品参数

LPDDR5 Configurations

MA5150 LPDDR5

Memory analyzer with LPDDR5 performance, margins and capture up to LPDDR5-6400 with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis. Additional support for LPDDR4 and/or LPDDR3 available as an option.

Nomenclature: NEX-MA5150-LPDDR5

Includes: Chassis w/Windows 10 PC Controller, MA5150 module enabled for LPDDR5 and Keyboard/Mouse

MA5120 LPDDR5

Logic analyzer capture only up to LPDDR5-6400, 512M-Sample acquisition depth, and ClockSafe™. Options available for 1G-Sample. Options include performance, margins, and Sixteen Smart Frequency Analysis. Options also available to add LPDDR4/LPDDR4x and/or LPDDR3 support.

Nomenclature: NEX-MA5120-LPDDR5

Includes: Chassis w/Windows 10 PC Controller, MA5120 module enabled for LPDDR5, and Keyboard/Mouse

LPDDR4 Configurations

MA5150 LPDDR4

Memory analyzer with LPDDR4/LPDDR4x performance, margins and capture up to LPDDR4/LPDDR4x-4267 with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis. Additional support for LPDDR5 and/or LPDDR3 available as an option.

Nomenclature: NEX-MA5150-LPDDR4

Includes: Chassis w/Windows 10 PC Controller, MA5150 module enabled for LPDDR4/LPDDR4x, and Keyboard/Mouse

MA5100 LPDDR4

Entry level memory analyzer with LPDDR4/LPDDR4x performance, margins and capture up to LPDDR4/LPDDR4x-3200 with 512M-Sample acquisition depth, ClockSafe™, and Smart Single Frequency Analysis. Options include 1G-Sample, Sixteen Smart Frequency Analysis, and LPDDR4/LPDDR4x-4267 support. Options also available to add LPDDR5 and/or LPDDR3 support.

Nomenclature: NEX-MA5100-LPDDR4

Includes: Chassis w/Windows 10 PC Controller, MA5100 module enabled for LPDDR4/LPDDR4x, and Keyboard/Mouse

MA5120 LPDDR4

Logic analyzer capture only up to LPDDR4/LPDDR4x-4267, 512M-Sample acquisition depth, and ClockSafe™. Options available for 1G-Sample, performance, margins, and Single/Sixteen Smart Frequency Analysis. Options also available to add LPDDR5 and/or LPDDR3 support.

Nomenclature: NEX-MA5120-LPDDR4

Includes: Chassis w/Windows 10 PC Controller, MA5120 module enabled for LPDDR4/LPDDR4x, and Keyboard/Mouse

LPDDR3 Configurations

MA5150 LPDDR3

Memory analyzer with LPDDR3 performance, margins and capture up to LPDDR3-2133 with 1G-Sample. Options also available to add LPDDR5 and/or LPDDR4/LPDDR4x support.

Nomenclature: NEX-MA5150-LPDDR3

Includes: Chassis w/Windows 10 PC Controller, MA5150 module enabled for LPDDR3, and Keyboard/Mouse

MA5100 LPDDR3

Memory analyzer with LPDDR3 performance, margins and capture up to LPDDR3-1600 with 512G-Sample. Options include 1G-Sample. Options also available to add LPDDR5 and/or LPDDR4/LPDDR4x support.

Nomenclature: NEX-MA5100-LPDDR3

Includes: Chassis w/Windows 10 PC Controller, MA5100 module enabled for LPDDR3, and Keyboard/Mouse

MA5120 LPDDR3

Logic analyzer capture only up to LPDDR3-2133, 512M-Sample and acquisition depth. Options available for 1G-Sample, performance, and margins. Options also available to add LPDDR5 and/or LPDDR4/LPDDR4x support.

Nomenclature: NEX-MA5120-LPDDR3

Includes: Chassis w/Windows 10 PC Controller, MA5120 module enabled for LPDDR3, and Keyboard/Mouse
