PXI 矢量网络分析仪

产品描述：
体积更小，却能实施可扩展的多端口矢量网络分析。我们的 PXI 矢量网络分析仪（VNA）可以快速、准确地执行测量，同时降低您的测试成本。使用单个 PXI 机箱便能同时表征多个双端口或多端口器件。在一个机箱中能够容纳多个独立的双端口网络分析仪模块，让您的多站点、多被测器件和多端口测试应用可以灵活扩展。可以使用全部端口同时测量被测器件，并提供了多端口误码校正功能。

产品特点产品参数相关产品

产品特点

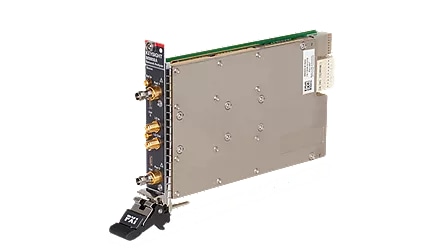

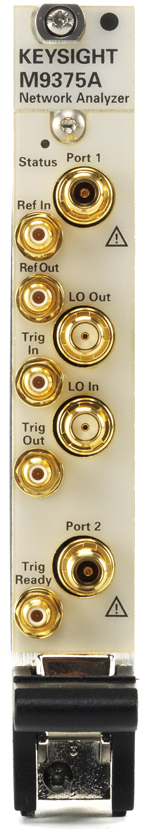

Full Two-Port VNA that Fits in Just One Slot

When you need to measure basic S-parameters, the right mix of speed, performance and footprint gives you an edge. Sharpen your edge with the Keysight PXIe M937XA vector network analyzer (VNA). The Keysight PXI VNA is a full two-port VNA that fits in just one slot. The PXI VNA also performs fast, accurate measurements and reduces your cost-of-test by letting you simultaneously characterize many devices — two-port or multiport — using a single PXI chassis.

Get more VNA in less space

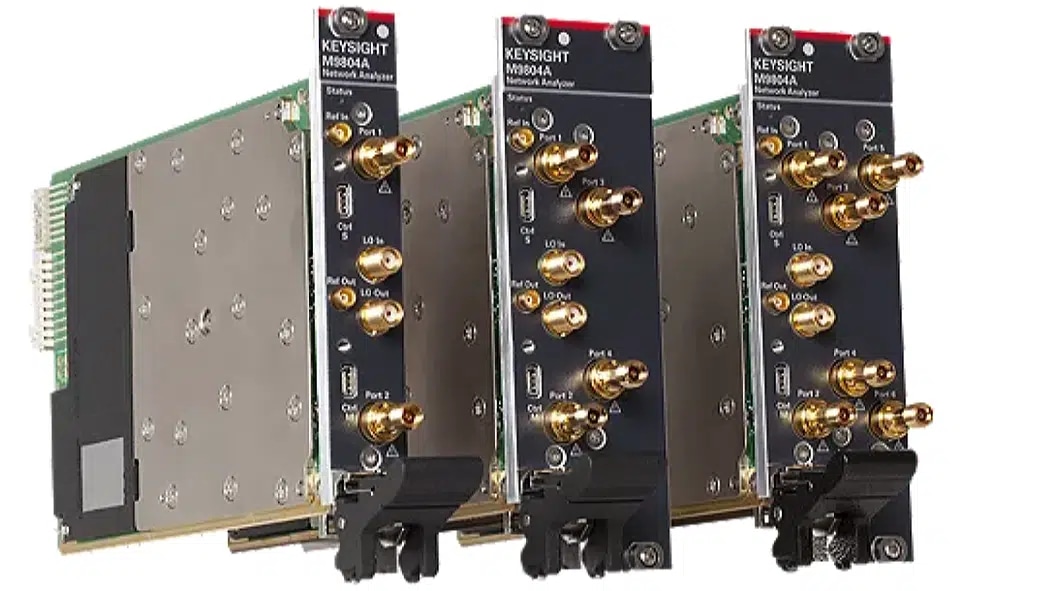

It offers the best PXI VNA performance on key specifications such as dynamic range, measurement speed, and trace noise. Each module is a completely independent two-port network analyzer and up to 16 modules can be added to a chassis for multi-site and multiport applications. All ports are fully synchronous so multiple ports can be measured simultaneously with multiport error correction applied.

Same Keysight VNA measurement science

The M937XA extends Keysight’s expertise in measurement and metrology into the modular PXI form factor. It provides the same quality results you have come to expect in our vector network analyzers.

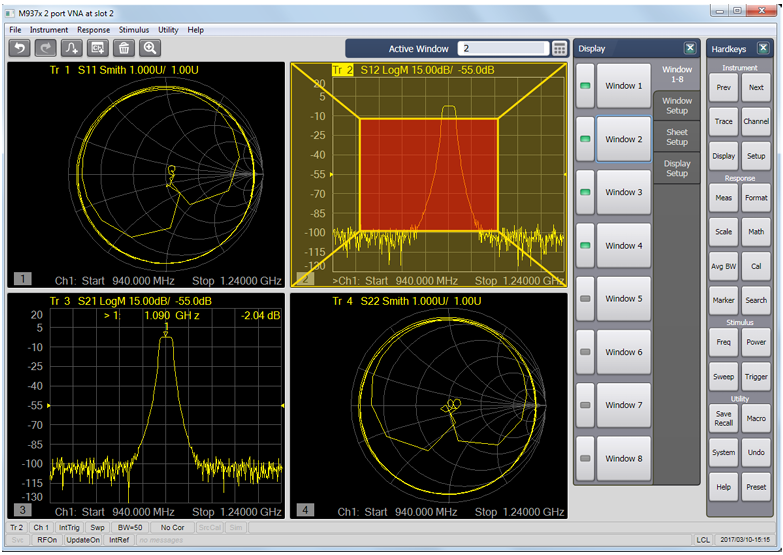

Software platform

Keysight soft front panels provide easy to use instrument communications. The graphical user interface guides developers through module setup using a similar look and feel as the popular Keysight network analyzers. Users can quickly configure the instrument parameters and perform calibrations.

Advanced calibration tools

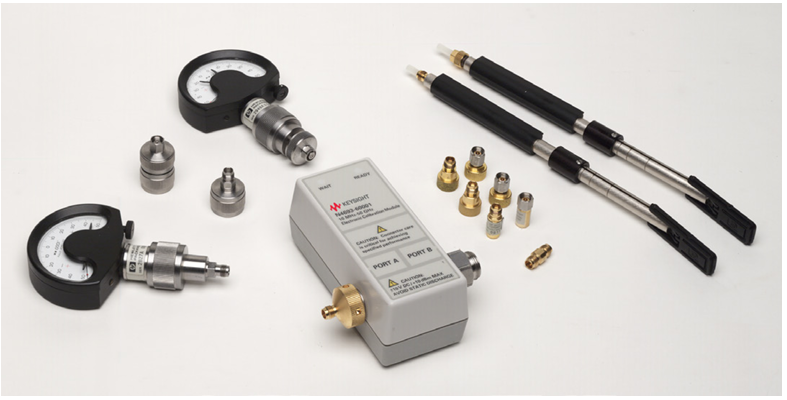

Calibrating network analyzers is critical for high accuracy measurements and can be particularly challenging in non-coaxial environments such as in-fixture, on-wafer, or waveguide. The PXI VNA supports a broad range of mechanical and electronic calibration kits, and offers advanced calibration methods to enhance ease-of-use while providing best-in-class accuracy.

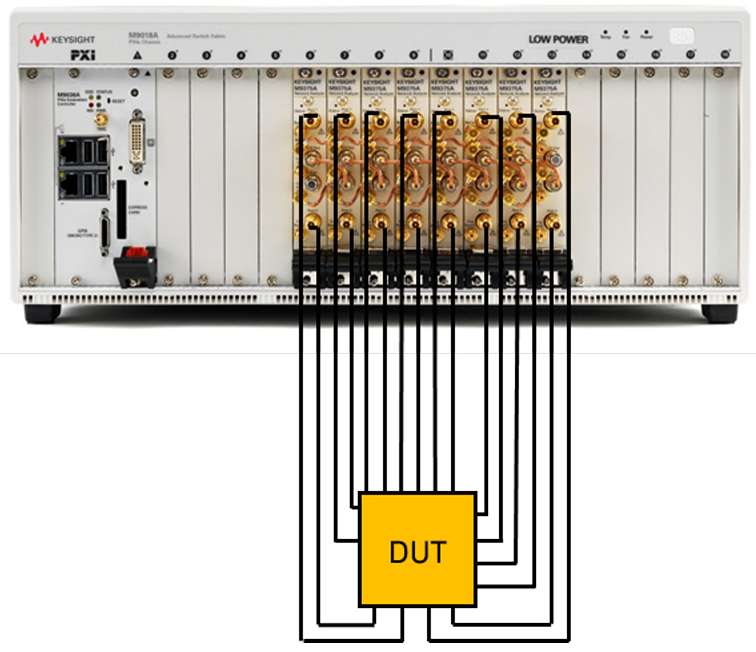

Multiport Testing with Full N-Port Correction Capability

The PXI VNA is an ideal solution for multiport measurements. It has a two-port (2- reference receivers and 2- test receivers) architecture in a one-slot module. It can be easily configured as a true multiport VNA by using additional modules installed in the same chassis. The full N-port correction capability allows for complete and accurate characterization of multiport devices.

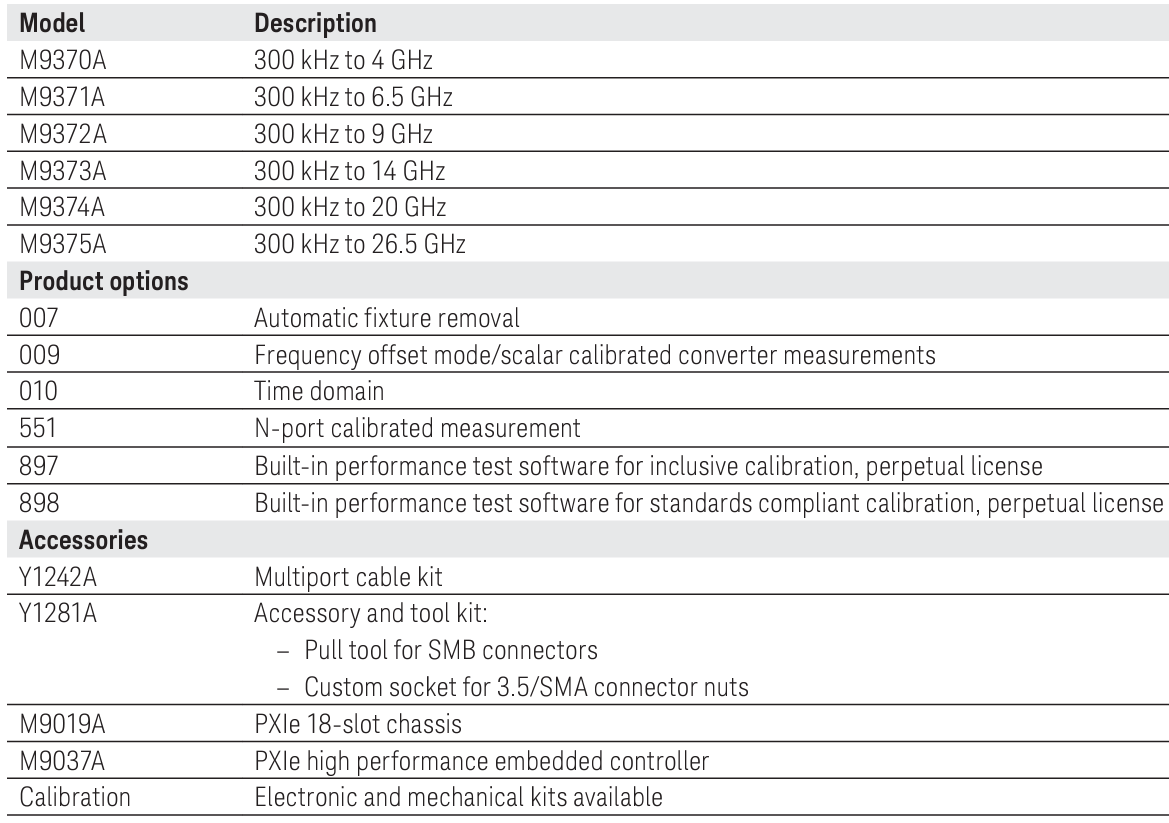

产品参数
