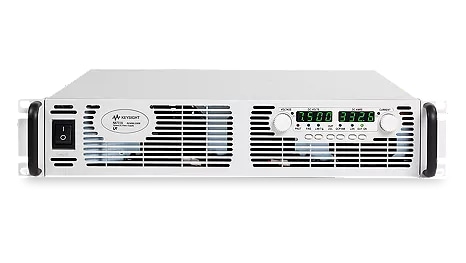

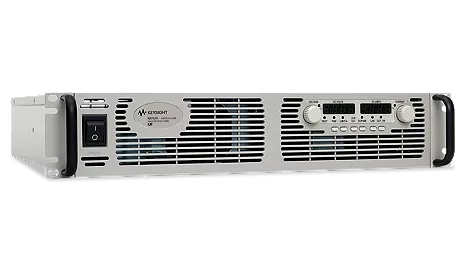

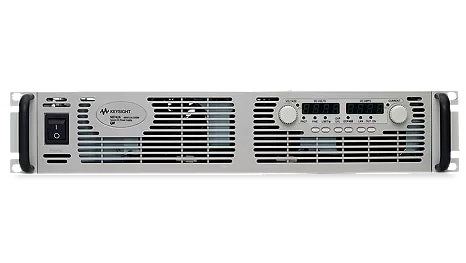

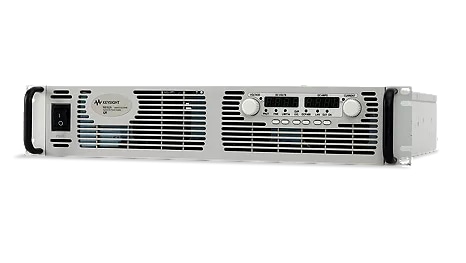

N8700 系列 ATE 系统电源

产品描述：
Keysight N8700 系列 ATE 系统电源是一款 2U 高的紧凑型电源，输出电流大而噪声非常低。气流可以在电源内部从前往后流动，因此在自动测试设备（ATE）机架的电源上方或下方不需要留出额外空间。这一系列可编程电源能够输出高达 3300 或 5200 W 的功率。输出电压为 8 至 600 V，输出电流为 5.5 至 400 A。

产品特点产品参数相关产品

产品特点

特点

紧凑型高功率密度 2U 机箱
输出噪声低――最低 8 mVrms
广泛的器件保护：过流、过压和欠压保护
前面板操作简单——单独的电压和电流旋钮
现代化 I/O 接口：USB、LAN（LXI-Core）和 GPIB
气流在电源内部前后流通，简化机架安装
电源过温保护
最多可并联 4 个电源，输出更大电流
可在 208 V、400 V 和 230 V 下灵活选择交流输入

Small, high-density package saves you rack space

The N8700 provides up to 5200 W in a small, space-saving 2 U-high, 19-inch-wide package. Its air vents are in the front and rear (not on the top or bottom), so you can stack other instruments directly above or below it to save valuable rack space.

Features

• 21 Models: 3300 W and 5000 W output power

• Up to 600 V and up to 400 A

• Small, high-density 2 U package

• Built-in voltage and current measurement

• Full protection from over-voltage and over-current

• Flexible AC input voltage options

• LAN, USB, and GPIB interfaces standard

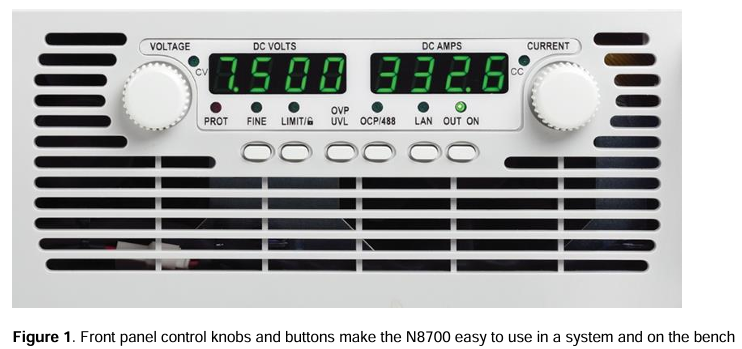

Easy front-panel operation

You can quickly and easily operate the power supply with its rotary knobs and buttons. Using the frontpanel controls, you can make coarse or fine adjustments to the output voltage and current, protection settings, and power-on states (last setting memory or factory default setting). The output voltage and current are displayed simultaneously, and LED indicators show the power supply status and operating modes. You can lock the front panel controls to protect against accidental power-supply parameter changes.

Extensive device protection

To safeguard your device from damage, the N8700 Series power supplies provide over-temperature, over-current, and over-voltage protection (OVP) to shut down the power supply output when a fault condition occurs. They also offer an under-voltage limit (UVL) that prevents adjustment of the output voltage below a certain limit. The combination of UVL and OVP capabilities lets you create a protection window for sensitive load circuitry.

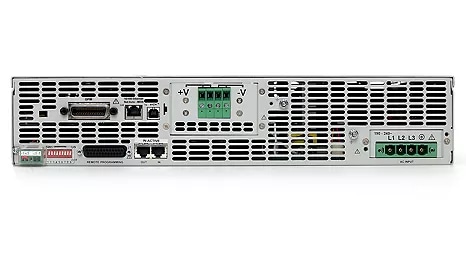

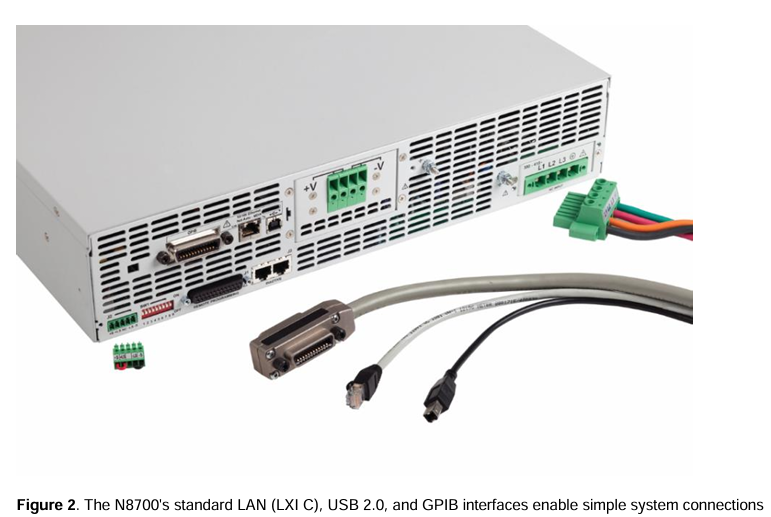

Simplify system connections

The N8700 Series power supplies come standard with GPIB, Ethernet/LAN, and USB 2.0 interfaces, giving you the flexibility to use your I/O interface of choice today and safeguarding your test setup for the future. The N8700 is fully compliant with the LXI Class C specification.

Remote access and control

The built-in Web server provides remote access and control of the instrument via a standard browser such as Microsoft Internet Explorer or Mozilla Firefox. This control goes above and beyond the LXI specification, allowing users to monitor and control the instrument from anywhere. You can set up, monitor, and operate the N8700 remotely using the Web browser.

Easy system integration and configuration

The N8700 comes standard with IVI-COM drivers to simplify system development and supports the easyto-use SCPI (Standard Commands for Programmable Instruments).

Flexible configuration: connect multiple units in parallel or series

Should you need greater output power, the N8700 series power supplies give you the flexibility to connect in parallel up to four identical units (same model number) for greater output current or connect two identical units (same model number) in series for greater output voltage (see output terminal isolation information).

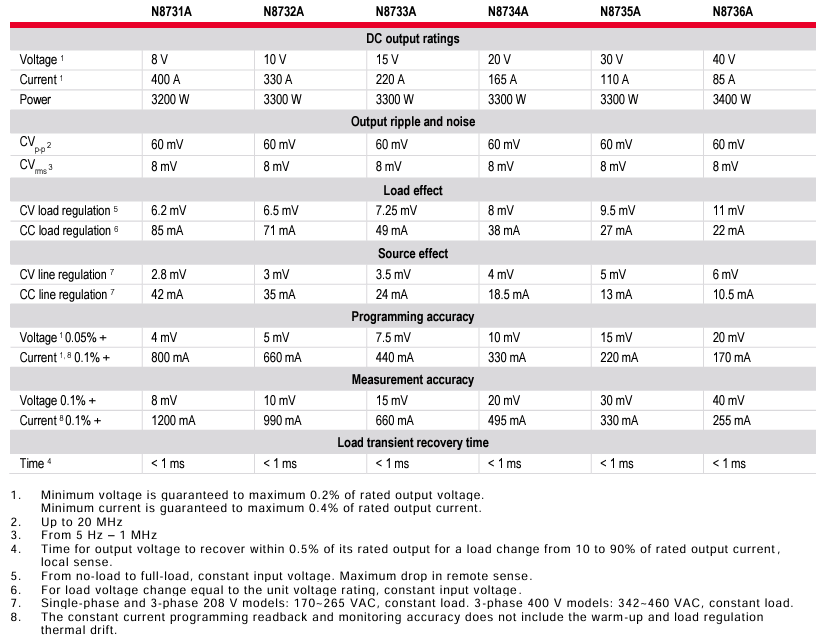

产品参数
