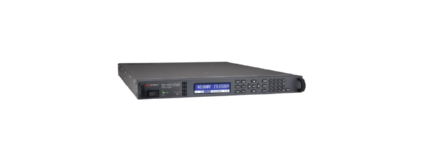

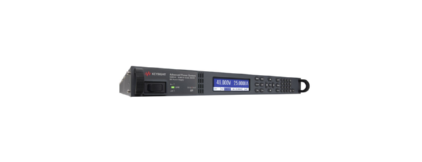

N6900 系列先进电源

产品描述：
N6900 系列先进电源系统（APS）适用于需要高性能的自动测试设备（ATE）应用。通过添加四个高性能选件的任意组合，您将可以获得自己最需要的性能。多功能电源的速度正在不断加快。

产品特点产品参数相关产品

产品特点

特点

超快的速度可显著提高测试系统的吞吐量
准确测量可以准确捕获被测器件的电流特征曲线
N6900 电源通过并联可提供高达 10 kW 的功率，并能在并联电源之间平均分配电流
高度集成的功能可以缩短 ATE 开发时间，并降低开发成本
创建您所需的配置：轻松添加可选功能和高级功能
N7909A APS 功耗单元可为 APS 电源增添完整的双象限工作能力
通用 I/O 接口――LAN（LXI Core）、USB 和 GPIB

Versatility was never faster

There’s an art to the tradeoffs you make when you need to integrate your test system fast, test your products faster and stay within budget. Keysight’s small, flexible and market-leading-fast Advanced Power System (APS) N6900 Series DC power supplies with VersaPower architecture can make those tradeoffs easier and help you achieve the optimum balance of test coverage, quality and time in your ATE system

Overcome your toughest measurement challenges with VersaPower architecture

VersaPower uses cutting- edge technology to deliver industry-leading performance and innovative capabilities you don’t typically find in a switching power supply design.

VersaPower architecture delivers the fastest, most accurate, integrated power system

– Accelerate test-system throughput with industry-leading speed

– Capture your DUT’s current profile with accurate measurements

– Reduce your ATE development time and cost with highly integrated capabilities

– Create the configuration you need: easily add optional and advanced capabilities

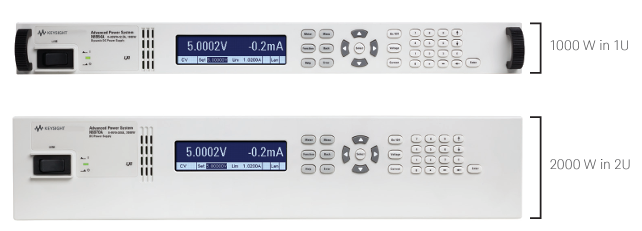

Get lots of power in a small test-system footprint

Two power ranges deliver a large amount of power in a small test-system footprint:

– 1 kW models have a 1U full-rack footprint

– 2 kW models have a 2U full-rack footprint

– Both power ranges have built-in paralleling capability up to 10 kW

APS black box recorder (option BBR)

Much like a flight data recorder, the optional black box recorder (BBR) runs continually in the background, independent of what the power supply is doing. When the power supply is on, the BBR is recording power events and storing measurements in non- volatile memory. The BBR can be set for either a 24- hour record or a 10-day record period. In the 24-hour mode, measurements are made at a rate of 100 per second, and in the 10-day mode they are made at a rate of 10 per second. The BBR data can be accessed via the free APS power assistant software (see Figure 3). The BBR option works on all APS N6900 and N7900 power supplies. It is a factory installed option available only at the time of purchase.

APS N7907A rack mount kit

The N7907A rack mount kit can be used for all N6900 and N7900 power supplies, regardless if they are 1 kW or 2 kW form factors. It can also be used for mounting the N7909A. N7907A APS rack mount kit is needed for every APS power supply or N7909A dissipater that you would like to mount.

N7906A power assistant software

The APS N7906A power assistant software is a free application that works with the APS power supplies. The power assistant software provides three main capabilities for working with the APS power supplies:

– Control an APS power supply using the Power assistant soft

- ware’s intuitive graphical user interface

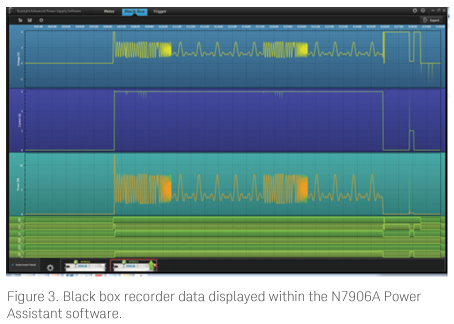

– Retrieve and view data from the optional APS power supply black box recorder (see Figure 3)

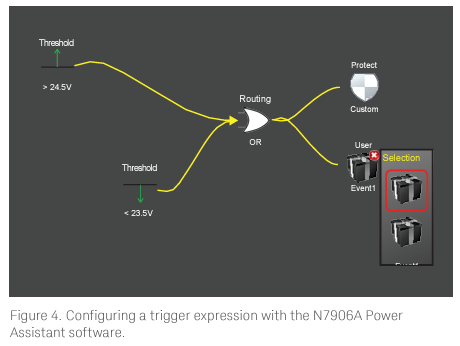

– Perform trigger routing and conigure logical trigger expressions (see Figure 4)

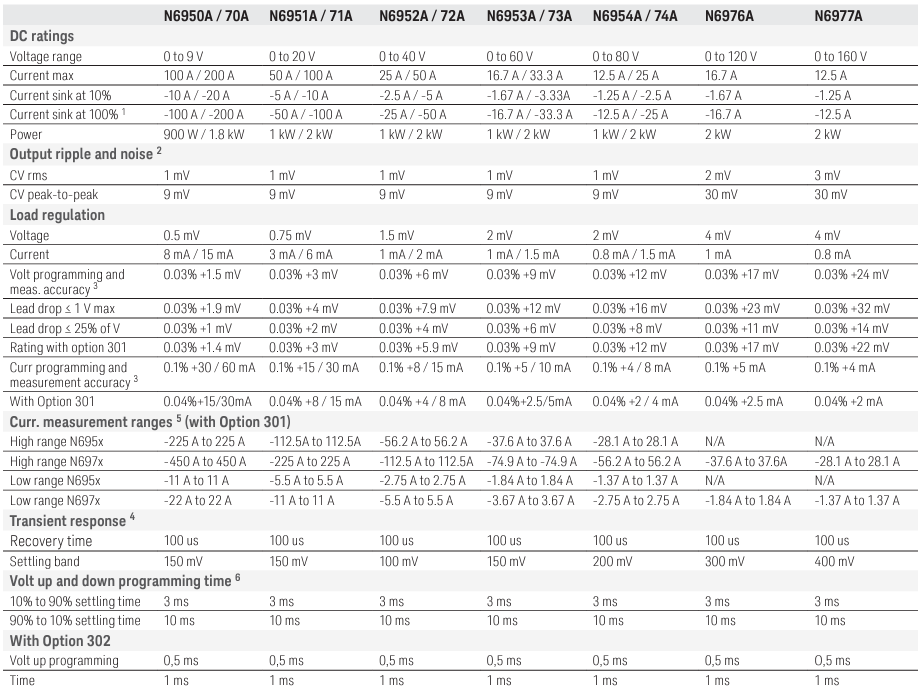

产品参数
