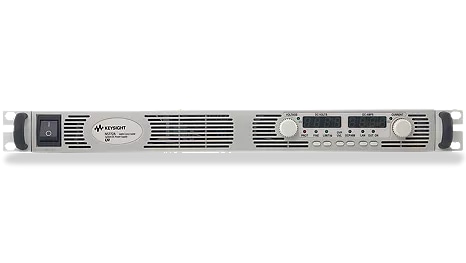

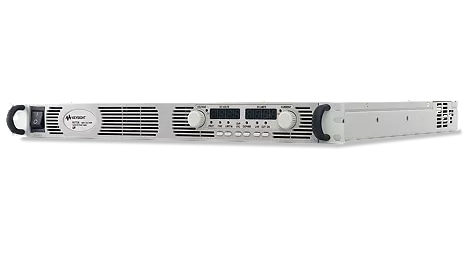

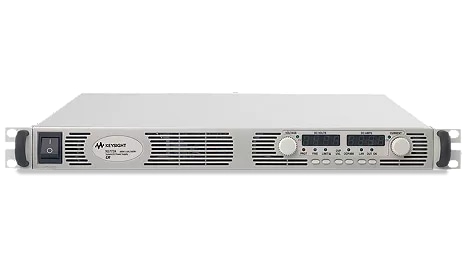

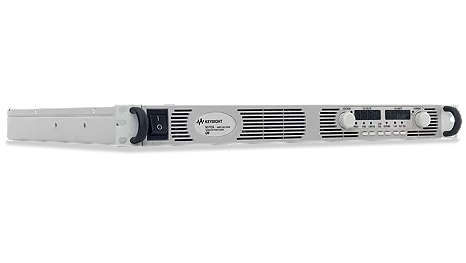

N5700 系列 ATE 系统电源

产品描述：
Keysight N5700 系列的噪声功率很低，而且外形紧凑，仅有 1U 高。气流可以在电源内部从前往后流动，因此在自动测试设备（ATE）机架的电源上方或下方不需要留出额外空间。您可以选择 6 V 至 600 V 的输出电压。对于小电流应用，750 W 型号可提供 1.3 A 至 100 A 的电流。对于需要更大电流的应用，1500 W 型号可提供两倍的电流。

产品特点产品参数相关产品

产品特点

特点

小型高密度 1U 外形
最低 8 mVrms 的低噪声输出
广泛的器件保护：过流、过压和欠压
简便的前面板操作——独立的电压和电流旋钮
现代化 I/O 接口：USB、LAN（LXI Core）和 GPIB
气流在电源内部前后流通，简化机架安装
电源过温保护
并联多达 4 个电源，可以输出更大电流
通用交流输入：85 至 265 Vac

Small, high-density package saves you rack space

The N5700 provides up to 1500 W in a small space-saving 1 U-high, 19-inch-wide package. Its air vents are in the front, side and rear (not on the top or bottom), so you can stack other instruments directly

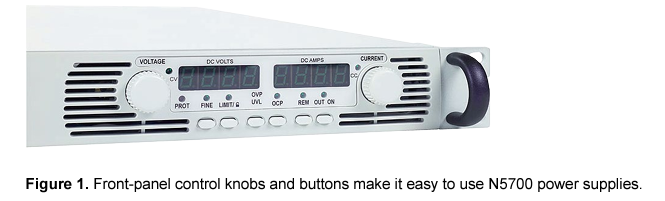

Easy front-panel operation

You can quickly and easily operate the power supply with its rotary knobs and buttons. Using the frontpanel controls, you can make coarse or fine adjustments of output voltage and current, protection settings, and set power-on states (last setting memory or factory default setting). The output voltage and current are displayed simultaneously, and LED indicators show power supply status and operating modes. You can lock the front panel controls to protect against accidental power-supply parameter changes.

Extensive device protection

To safeguard your device from damage, the N5700 Series power supplies provide over-temperature, over-current and over-voltage protection (OVP) to shut down the power supply output when a fault condition occurs. They also offer an under-voltage limit (UVL) that prevents adjustment of the output voltage below a certain limit. The combination of UVL and OVP capabilities lets you create a protection window for sensitive load circuitry.

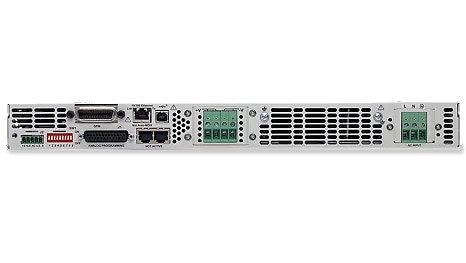

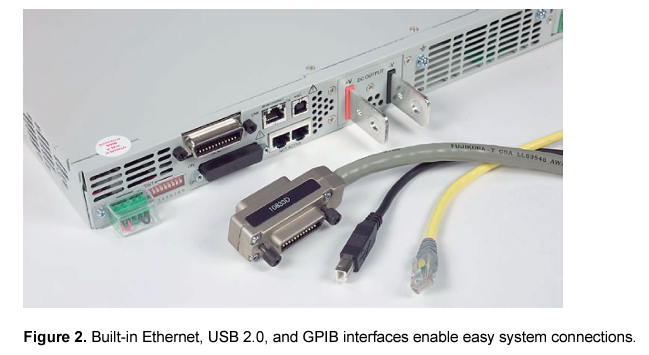

Simplify system connections

The N5700 Series power supplies come standard with GPIB, Ethernet/LAN, and USB 2.0 interfaces giving you the flexibility to use your I/O interface of choice today and in the future. The N5700 is fully compliant with the LXI Class C specification.

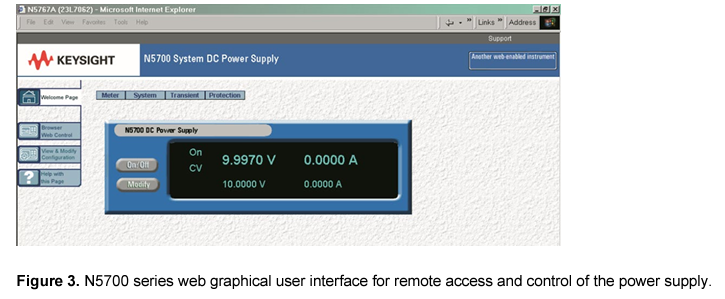

Remote access and control

The built-in Web server provides remote access and control of the instrument via a standard browser such as Microsoft Internet Explorer. Using the Web browser, you can set up, monitor and operate the N5700 remotely.

Easy system integration and configuration

To simplify system development, the N5700 comes standard with IVI-COM drivers. The N5700 supports the easy-to-use SCPI (Standard Commands for Programmable Instruments).

Command compatibility

The N5700 includes a compatibility command set for the Xantrex XFR series power supplies, the Sorensen DLM series power supplies, and the Keysight 603x series power supplies. This simplifies system integration when converting to the N5700. For a comparison of these products, see application notes:

• Side-by-side comparison: Keysight N5700 Series System DC Source and Sorensen DLM DC Power Supply, AN 1502-1, 5989-1628EN

• Side-by-side comparison: Keysight N5700 Series System DC Source and Xantrex XFR AN 1502-2, 5989-1630EN

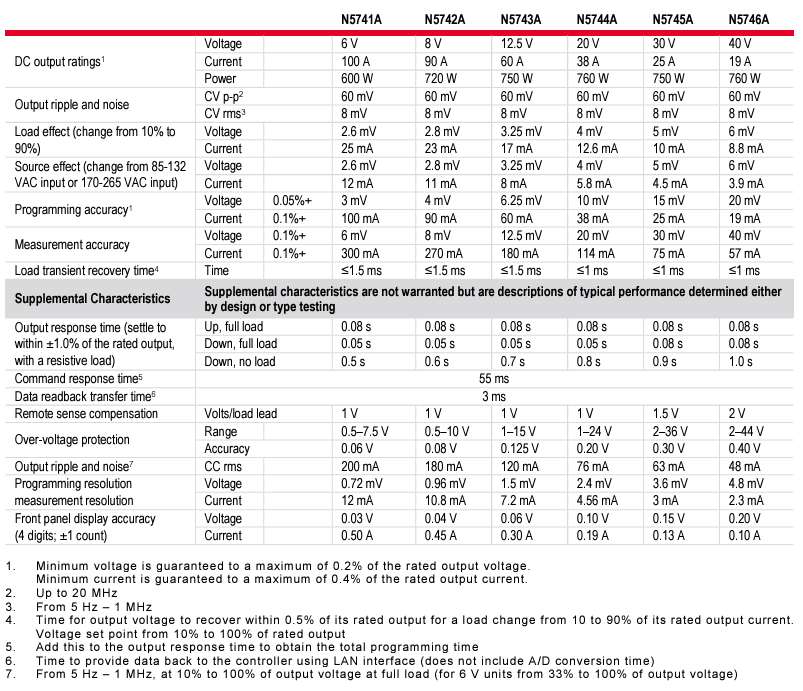

产品参数
