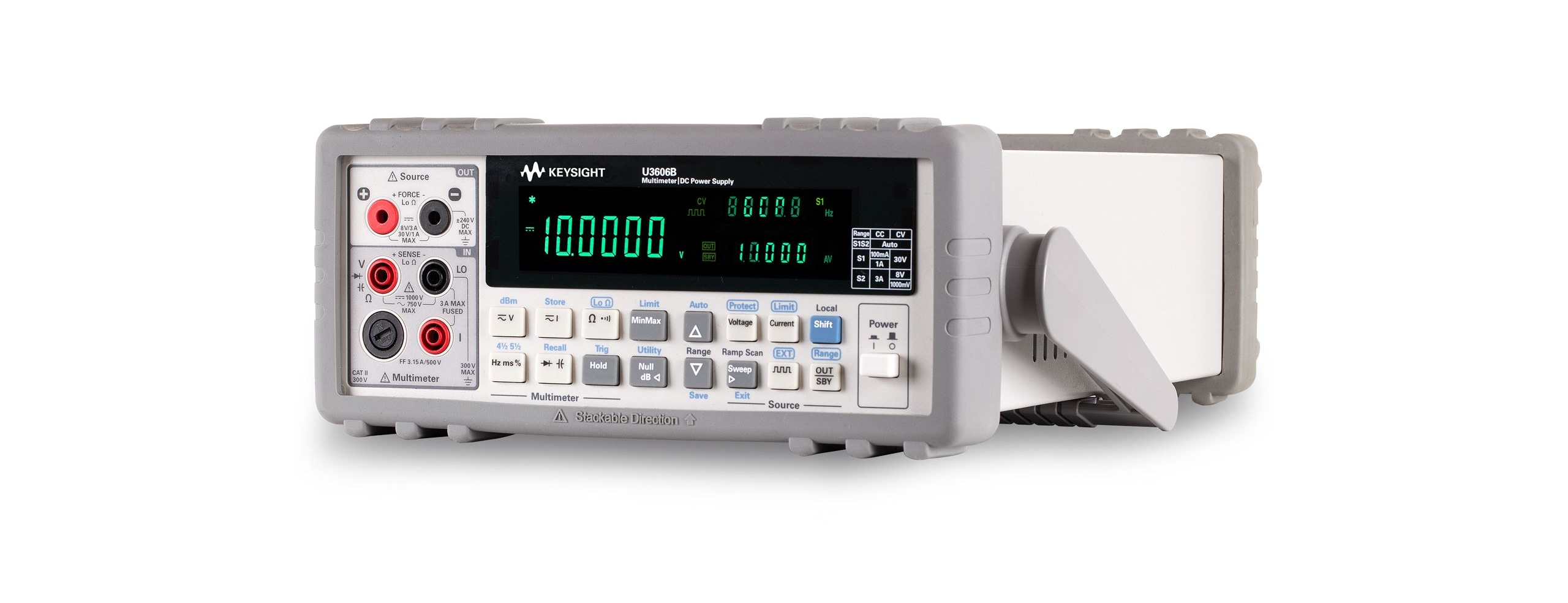

U3606B 万用表/直流电源

产品描述：

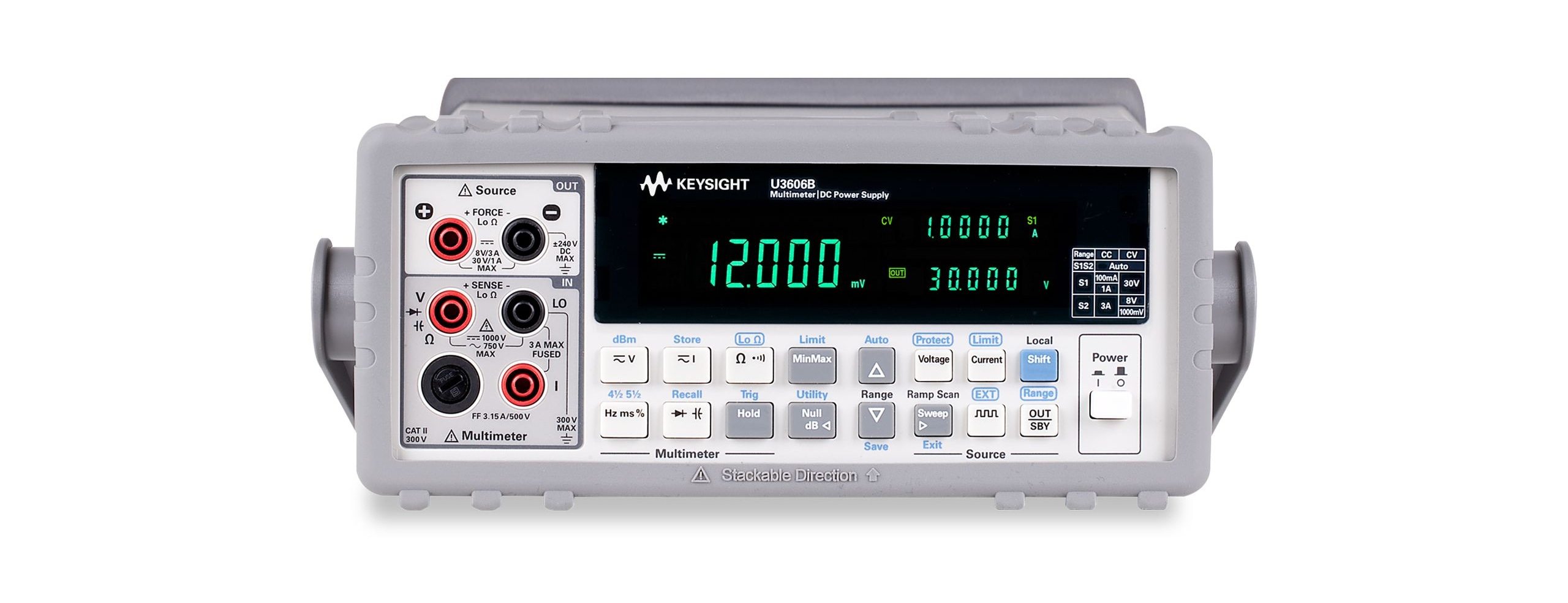

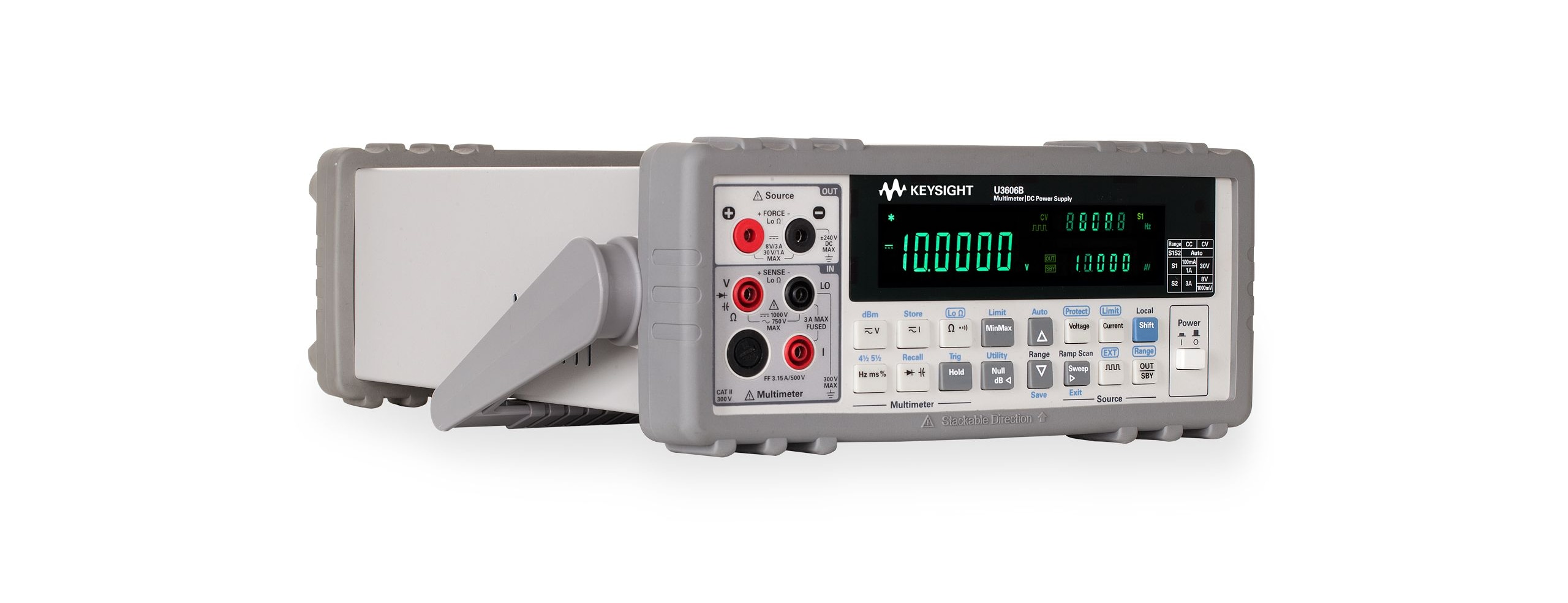

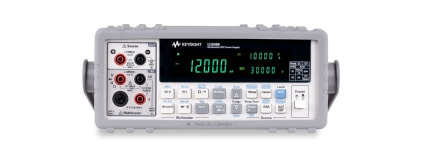

您正在寻找一体化的源表器件来满足测量需求？ Keysight U3606B 万用表/直流电源是一款功能完整的数字万用表（DMM），并内置有 30 W 电源单元。这款综合型万用表/直流电源可同时测量电压和电流，使您能够用同一个仪表执行两项测试功能。

产品特点产品参数相关产品

产品特点

能够在一个仪表中提供 120,000 计数分辨率的数字万用表和 30 W 直流电源的全部功能，方便用户使用

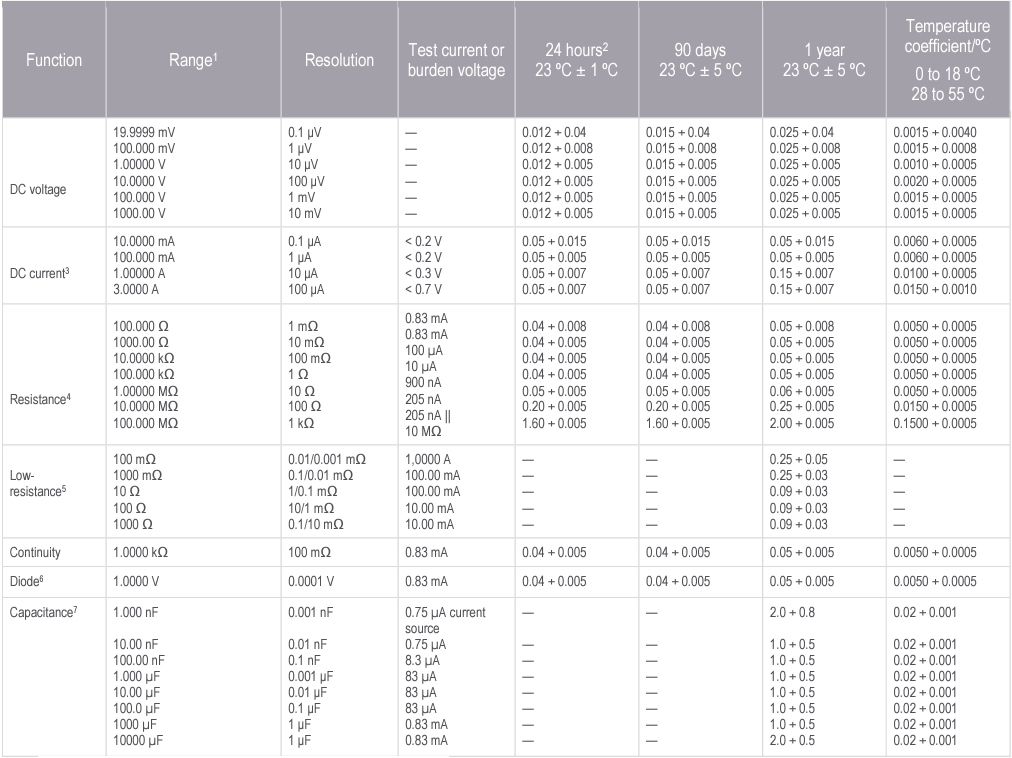

万用表：10 种测量功能（包括4 线毫欧测量）和 8 种数学运算功能，基本 DCV 准确度高达 0.025%

直流电源：30 V/1A、100 mA/30 V、8 V/3 A、1,000 mV/3 A 等输出，并具有高达 0.01%+3 mV 的出色电源/负载调整率
包括 GPIB 和 USB 2.0 端口等多种连通性选件，可提供灵活和稳定的远程计算机连接

功能完整的源表器件

U3606B 是一款将电源单元（PSU）和万用表整合在一起的器件，它经过精心设计，可帮助您更加方便和轻松地进行操作。该器件提供了以下功能：

斜坡和扫描功能，可简化器件表征，支持多级直流偏置测试
方波输出，可选择频率（高达 4.8 kHz）、可变占空比和幅度，用于诊断数字电路故障
内置远程传感功能，有助于确保负载端准确上电

Features

• Combination of a 5.5 digit digital multimeter and 30-W power supply in a single unit

• 10 DMM measurements, including 4-wire miliohm measurement

• 8 built-in math functions

• OVP and OCP for load protection

• Ramp and scan function, and built in squarewave output

• USB 2.0 interface and GPIB connectivity

• Kensington lock slot for security

Convenient two instruments in one box

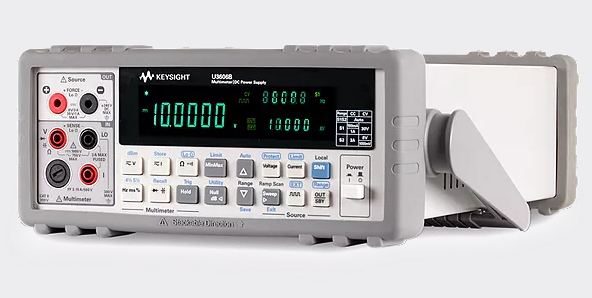

Looking for a one-box source-and-measure device to meet your measurement needs? The Keysight Technologies U3606B Multimeter | DC Power supply is a full-featured 5.5 digit digital multimeter (DMM) that comes with a built-in 30-W power supply offering a compact footprint enabling you to get work done faster and easier. Being capable of powering up the DUT while measures Voltage and Current simultaneously, it enables users to perform two test functions within the same unit.

The U3606B is carefully thought out for your convenience and ease when operating. The convenient two-instruments-in-a-box concept is space and cost efficient, as less space is needed to accommodate one device instead of two. Also, the U3606B is lightweight enabling easy portability — lighter than both DMM and power supply combined, making it ideal for various industry such as education, commercial electronics, semiconductors, sensors and research and development.

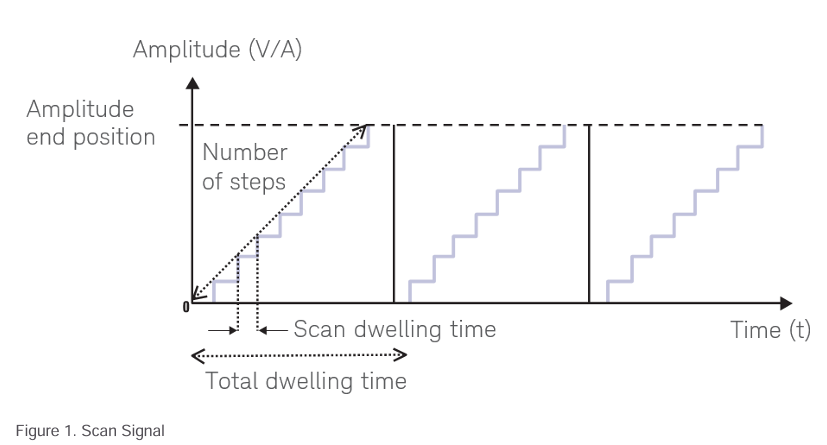

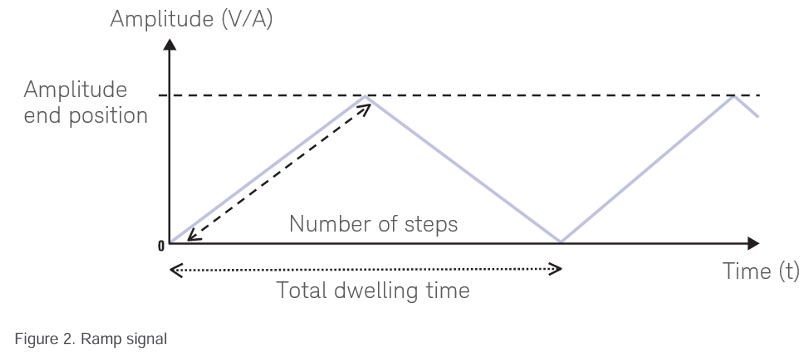

Sweep function (Ramp and scan)

Ramp and scan functions are mainly used to simplify device characterization for multilevel DC bias testing such as DC motor testing, transistor gain test, relay control and margin tests. Users have the choice to either manually perform quick verification testing through front panel or control operations remotely using simplified programming codes. Both functions are conveniently configurable via front panel to sweep up to 100 steps for scan and 10,000 steps for ramp, programmable up to 105% full scale.

Added Safety Features – With OVP, OCP and Physical lock security

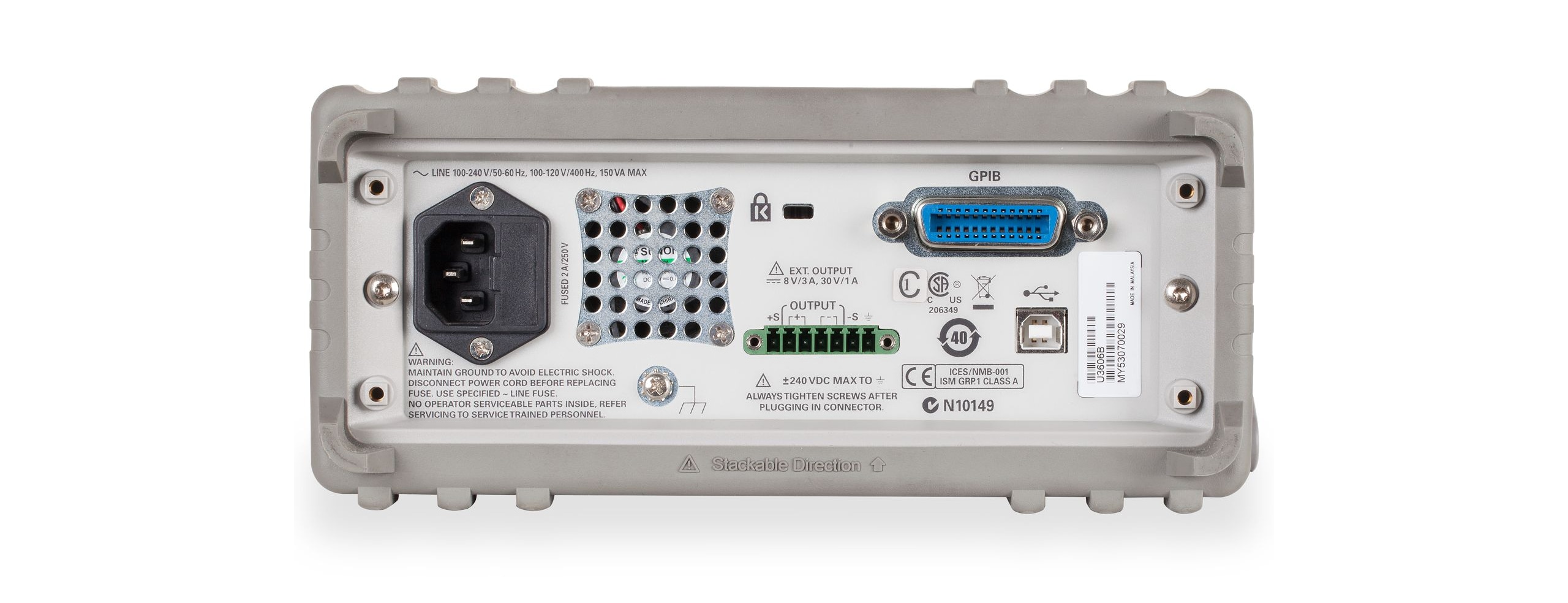

Safety features in test instruments are always an added advantage. It does not only protect users from exposure to current, but also the additional costs incurred to their investment (DUT). Our U3606B is integrated with an array of security features such as over-voltage (OVP) and over-current (OCP) protection to mitigate these risks. Additionally, security feature such as Kensington lock slot strategically located at the rear of the unit secures your instrument from the risk of theft or misplacement when left unattended.

Square wave output

Square wave output is a unique function for many applications such as pulse-with modulation (PWM) output, adjustable voltage control, and synchronous clock. Users are able to check and calibrate flowmeter displays, tachometers, LED, sensors, oscilloscopes, frequency converters, frequency transmitters and other frequency input devices. The U3606B’s square wave output provides selectable frequencies up to 4.8 kHz with variable duty cycles and amplitudes.

More flexibility, more accuracy

Multiple connectivity options such as GPIB port and USB 2.0 provides more flexibility and robust connection between PC and U3606B Multimeter | DC Power supply. Users are able to connect the device directly to the PC host and work seamlessly with the Keysight Connectivity software or controlled remotely via standard SCPI commands. With two instruments in a single test box, less cable is required for troubleshooting providing better maintenance and wire management — essential for rack mount usage. U3606B also comes with 4-wire milliohm resistance measurement providing more accurate readings for device characterization as compared to the conventional 2-wire resistance measurement.
