U1270 系列四位半手持万用表

产品描述：
Keysight U1270 系列采用了牢固的密封设计，有助于防水、防尘、防损伤。即使工作环境比较恶劣，您也可以使用这款真正的 RMS 仪表信心十足地进行测试和测量。

产品特点产品参数相关产品

产品特点

坚固耐用的 DMM 通过了 IP54 认证，即使在低温和高海拔地区也很可靠地工作。
峰值检测功能让您能以最快 250 µs 的速度捕获发动机或电机启动瞬态。
记录多达 10,000 个读数的测量值，可以胜任手动记录、自动记录和事件记录。
低通滤波器（LPF）可去除无用的高频信号，从而实现更准确的变频驱动器（VFD）输出测量。
通过低输入阻抗模式（Z_Low ）消除杂散电压。
提供视频和音频导通报警，不会错过任何蜂鸣声。

适用于各种环境的手持数字万用表

不要让不利环境阻碍您的工作。 U1273a 手持万用表可以在各种环境下工作。

OLED 显示屏以 2000:1 的对比度提供精确的测量值。
高达 160 度的观看角度确保即使光线不足，您也能一眼看清正确的读数。
所有 U1270 系列型号均可在高达 3,000 米的高海拔地区和低至 -40°C 的严寒条件下运行。
可选蓝牙® 适配器让您能够在 PC 或 iOS /安卓移动设备上安全监控测量值。

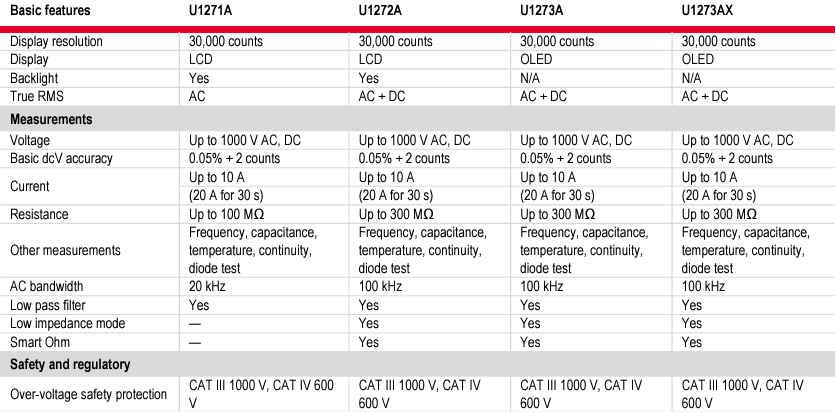

Features

• OLED display with 2000:1 contrast ratio and 160 degrees viewing angle 3,4

• 30,000-count resolution

• Measure up to 1000 V AC and DC

• Measure up to 10 A (20 A for 30 s)

• Resistance, diode test, temperature, capacitance

• Low Impedance mode 2,3,4 and Low Pass Filter

• Peak detection of up to 250 µs

• Continuity test with beeper and backlight 1,2

• Seven readings/s measurement rate for voltage and current

• Smooth function for accurately stable readings

• Up to 10,000 points internal memory for data logging

• PC connectivity with optional U1173B IR-USB cable

• IP 54 certified – water and dust resistant

• CAT III 1000 V, CAT IV 600 V safety rating

• Up to 3000m operating altitude

• -40 to 55 °C operating temperature 4

Operational Down to -40 °C Temperature

The U1273AX OLED handheld digital multimeter, the latest addition to U1270 Series, is capable of operating in winter weather down to –40 °C temperature. Even in frigid conditions, the U1273AX enables you to achieve immediate and accurate results without the need to warm up in advance.

OLED for More Display Clarity

Designed with OLED display, you can experience crystal-clear measurement readings with its outstanding 2000:1 contrast ratio. The display also allows wider viewing angles up to 160 degrees ensuring you get the right readings at the first glance even in poorly lit environments.

Water and dust resistance (IP54)

The series’ tightly sealed design helps protect against water, dust and damage. Each handheld DMM is certified with IP 54 ratings so that you can carry out tests and measurements with confidence, even in harsh working conditions.

Operational up to 3000 meters altitude

For high altitude applications such as wind farm maintenance, you can measure with confidence using the U1270 Series, capable of measuring up to 3000 meters above sea level.

High measurement rate at seven readings per second for Voltage and Current

You can detect even the slightest change in your sensitive signals (Voltage and Current) with its high measurement rate capability. By clicking the resettable smooth function button, you may customize the readings’ sensitivity suitable for various tests.
