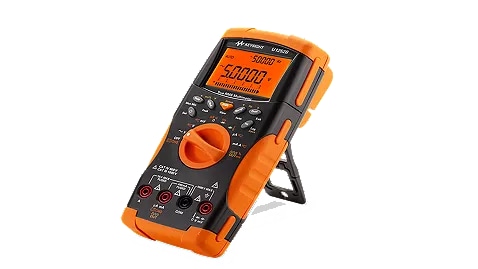

U1250 系列四位半手持万用表

产品描述：
隔离故障的过程不可预测。您不妨配备一台多功能四位半万用表（DMM），它不仅可以简化分析、加速故障检测，还能轻松探测难以触及的点。 Keysight U1250 手持数字万用表（U1251B、U1252B 和 U1253B）具有强大的性能和功能，可以满足严苛的要求和应用目的。

产品特点产品参数相关产品

产品特点

高达 0.025% 的 DCV 精度可以快速确定波形异常
内置电池充电功能可以降低拥有成本
通过蓝牙^® 功能进行无线数据记录，可以提高生产率

利用内置方波发生器和频率计数器
OLED 型号可提供高对比度和广角视图
包含用于电子器件故障诊断的所有必要附件

使用是德科技手持数字万用表快速记录问题

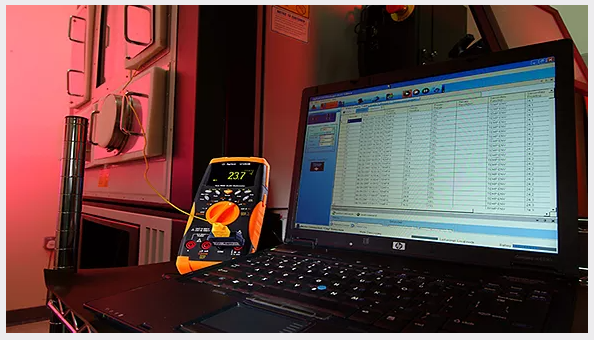

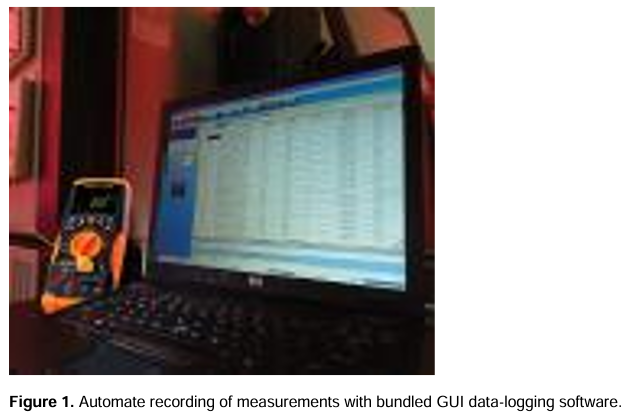

利用 Keysight Meter Logger 软件，能够以趋势图或表格形式，将数字万用表测量结果记录到 PC 上
使用可选的 IR-to-Bluetooth® 适配器安全地监测移动设备上的测量
U1253B 是一款 OLED 手持数字万用表，即使处在黑暗的环境或者是较偏的角度，您也能清晰地看到结果显示。

Key benefits

• Superior contrast from organic LED (OLED) display 1

• 50,000-count dual display

• Up to 0.025% basic DCV accuracy

• True-RMS AC and AC+DC2 measurements

• K-type and J-type2 temperature measurements

• Manual and automated (interval) data logging; internally to DMM and externally to PC

• CAT III 1000 V and CAT IV 600 V safety protection

• Built-in 20-MHz frequency counter 2

• Built-in programmable square-wave generator 2

Do more with just one instrument

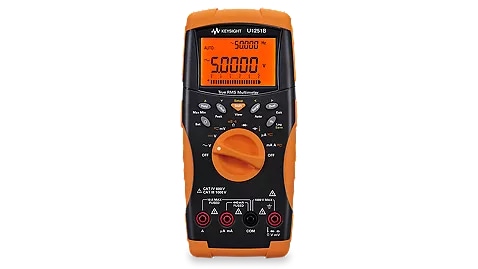

The basic model, U1251B, expands your capabilities beyond typical DMM measure-ments to include data logging. The U1252B starts with the same foundation, and then adds a 20-MHz frequency counter and programmable square-wave generator—so you’d be able to perform more tests conveniently with one tool. What’s more: both models come bundled with a complete set of accessories to equip you right from the start at no extra cost.

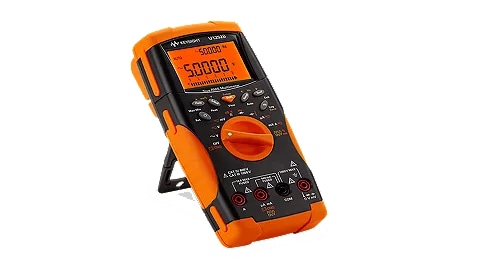

Offering the same functionality as the U1252B, the U1253B is the groundbreaking OLED handheld DMM. You won’t have to squint to be sure you’re reading it right: On the go or on the bench, you’ll get crystalclear viewing indoors, even in dark, off-angle situations.

Find problems quickly

Troubleshooting can be tricky, especially when you’re dealing with elusive problems. With the U1250 Series’data logging capability, you can ensure that every reading gets recorded manually or at intervals you specify. Better yet: you can have virtually unlimited data logging saves when you connect any of the U1250 Series DMM to a PC with the optional IR-to-USB cable.

In addition, the U1250 Series lets you achieve greater confidence in your measurements with accurate true-RMS AC measurements, low DCV error rate of up to 0.025% and high-resolution display of 50,000 counts.

Uncompromising ruggedness and safety

The U1250 Series DMMs are housed in robust overmold enclosures, rated at CAT III 1000 V and CAT IV 600 V and operate over a wide temperature range of –20 °C to +55 °C. Each DMM also include a 30 kA high energy fuse to further protect you against violent fuse failures during high-current measurements. Built tough and certified to stringent industrial standards, the U1250 DMM is what you need to face the demands of everyday tasks.

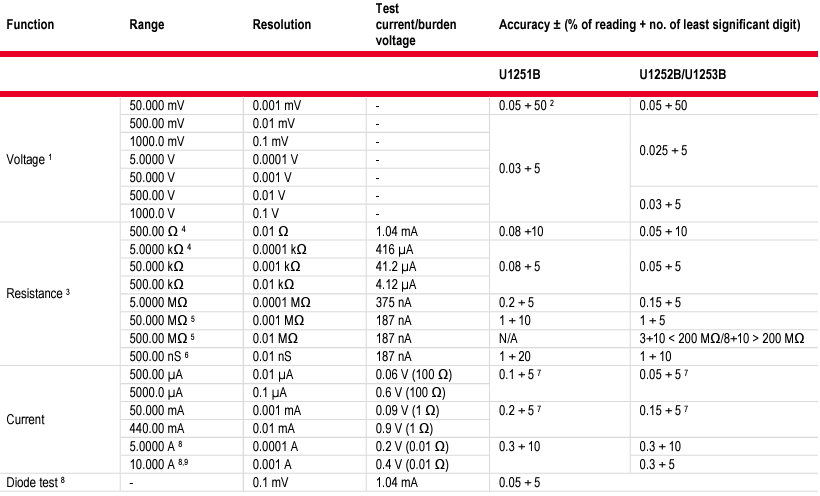

产品参数
