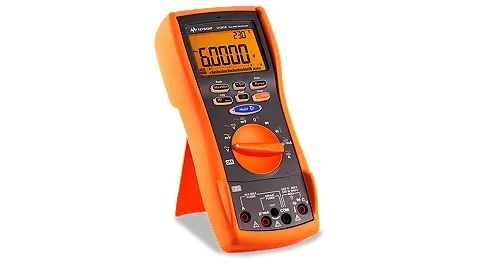

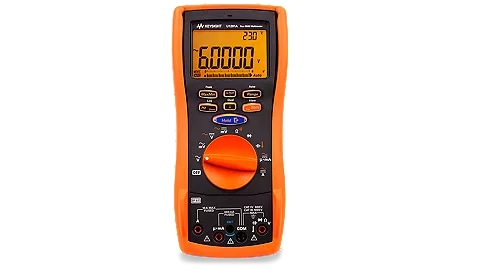

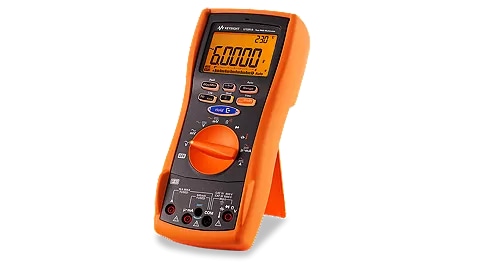

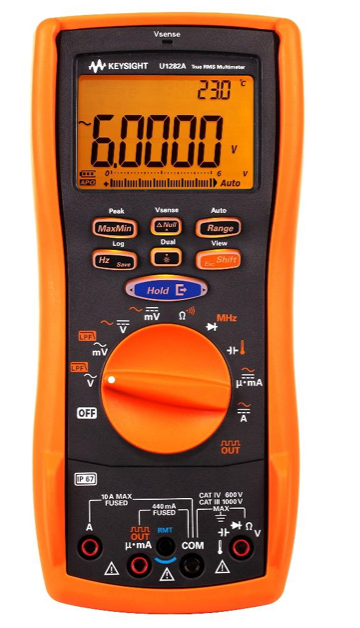

U1280 系列四位半手持万用表

产品描述：
Keysight U1280 系列手持数字万用表（DMM）是一款能提供准确、可靠测量的真 RMS 万用表。它具有 60,000 计数的显示分辨率和 0.025% 的基础 DCV 精度，帮助您对电子电路进行故障诊断。

产品特点产品参数相关产品

产品特点

防水防尘（通过 IP67 认证），坚固耐用，能够承受从 10 英尺高度跌落的冲击，可以在恶劣环境下完成测量任务
利用 Vsense 免接触检测电压，避免触电
通过声光报警功能无缝执行导通测试

使用仪表为脉宽调制（PWM）信号生成方波并充当频率计数器
使用内置低通滤波器对变频驱动器（VFD）进行故障诊断
电池续航时间长达 800 小时，校准间隔长达 2 年，大幅降低拥有成本

使用真有效值万用表轻松进行手动记录

U1280 系列 DMM 是一款数据记录万用表。 RMS 万用表上的“保持和导出”按钮不仅可以方便准确地进行测量，还可以让您：

将测量结果记录到手持 DMM 的内部存储器中
通过红外端口将测量结果导出到 PC 或移动设备

128

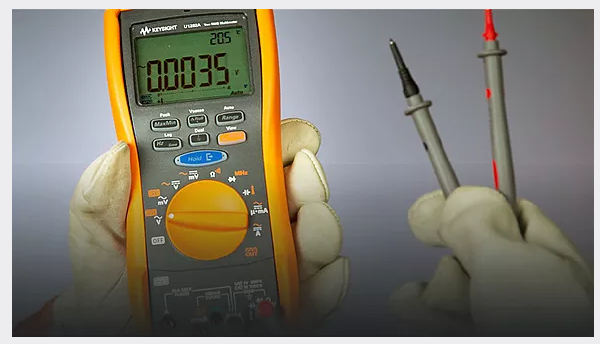

坚固耐用，值得信赖，保证按计划进行测试

这些坚固耐用的手持数字万用表不会因为灰尘、水雾、掉落或电池续航时间的影响而减缓测量速度。

通过 IP 67 认证，防尘防水
即使从高达 3 米（10 英尺）处跌落也安然无恙
电池续航时间长达 800 小时

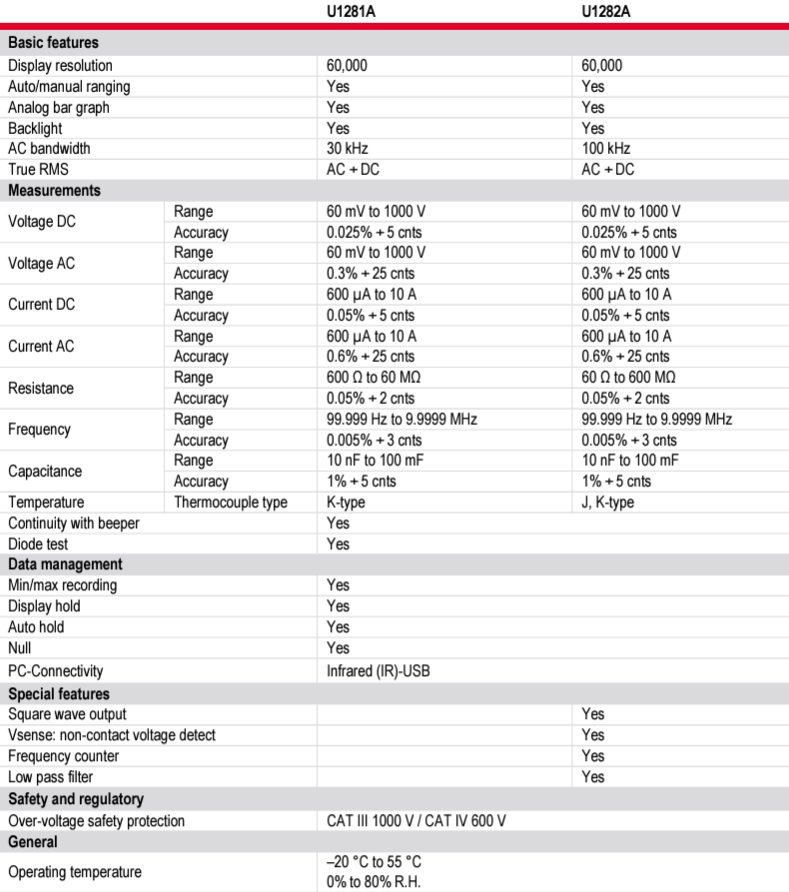

Key Features

• 60,000-count dual display

• Up to 0.025% basic DCV accuracy

• Longer battery life up to 800 hours

• Certified to IP 67 for water and dust protection

• Tested to withstand a 3-meter (10-ft) drop

• CAT III 1000 V / CAT IV 600 V overvoltage protection

• Special features 1

• Vsense for non-contact voltage detection

• Square wave output for generating pulse width modulation (PWM) signal

• Frequency counter

• Low pass filter

Vsense for non-contact voltage detection

Troubleshooting in most electrical environment is typically dangerous due to the high voltages involved. Now with the unique built in Vsense feature, you get a quick sense of AC voltage presence without the need to probe. When voltage presence is detected, it produces a unique combination of audible beeper alert and blinking LED light to alert users. This is especially useful to safeguard users from exposure to live wires, suspected AC voltage presence or simply an act of safety precaution before initiating a task. Work with a peace of mind knowing your safety comes first with Keysight’s U1280 Series handheld DMM.

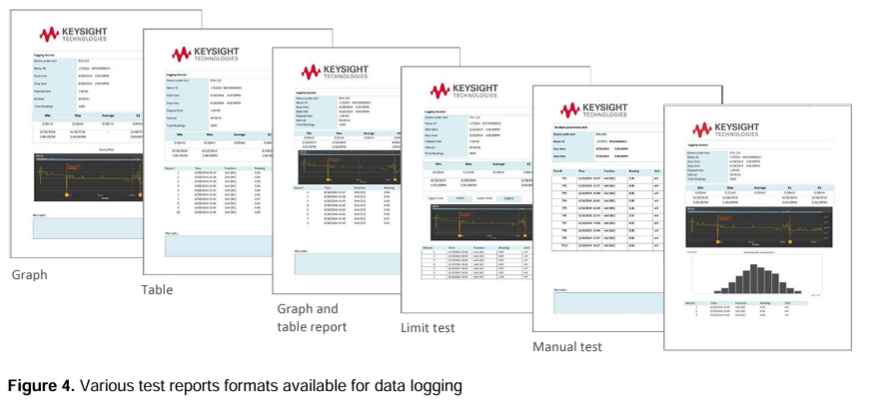

Comprehensive data logging experience with Keysight Meter Logger software

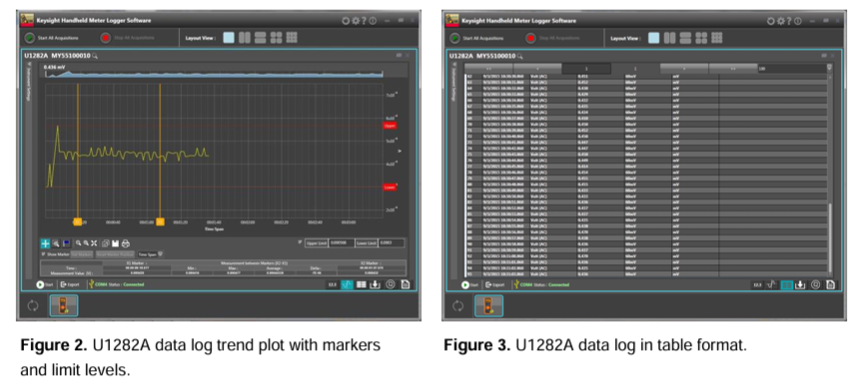

When it comes to the need to observe measurements over a period of time, Keysight Meter Logger software provides a comprehensive data logging experience with Keysight U1280 Series as well as other Keysight U1200 Series handheld DMMs. The handheld DMM can be easily connected to the Meter Logger software that runs on a PC via Infrared (IR)-to-USB cable. Keysight Meter Logger software provides users the flexibility and useful configuration to log their measurements, such as the flexibility to select sample interval, enable limit levels on the data log and email notification option for when the limit is exceeded. The data log measurements can be presented either by trend plot or table format for easy interpretation and further analysis — essential for troubleshooting and commissioning tasks. Once the measurements are recorded in the software, users can transfer the logged data into various types of report formats with just a click of the button.

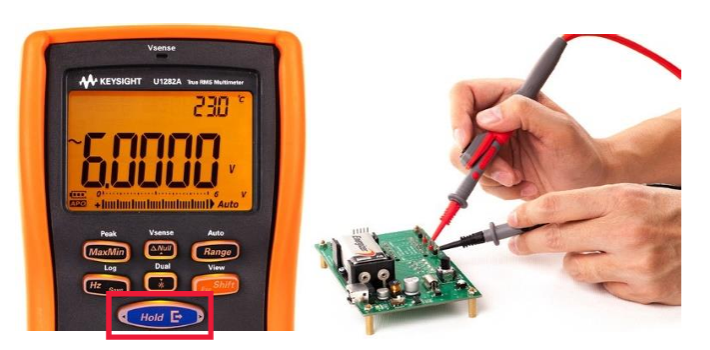

Manual logging made easy with Hold & Export button

While data logging over a period of time is useful to capture measurements for further observations and analysis, manual data log is just as useful to conveniently record measurements and reduce human error occurrence from conventional manual data entering process. Better yet, users are able to store measurement readings into the handheld DMM’s internal memory and at the same time export the measurements to the Keysight Meter Logger software via the DMM’s infrared port — all of these by simply pressing the ‘Hold & Export’ button. When the situation requires users to concentrate on probing, the optional U5404A remote switch probe can be used to perform manual logging by emulating the ‘Hold & Export’ button of the U1280 Series handheld DMMs.

产品参数
