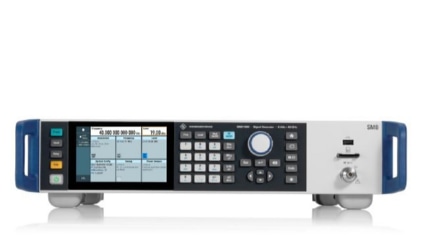

R&S®SMB100B RF and microwave signal generator

产品描述：
The R&S®SMB100B analog signal generator combines performance and versatility in a small footprint. Outstanding spectral purity and very high output power combined with comprehensive functions and very simple operation characterize the R&S®SMB100B. The R&S®SMB100B analog RF signal generator (3/4 19" width) has a frequency range from 8 kHz to 1, 3 and 6 GHz. The R&S®SMB100B analog microwave signal generator (19" width) has a frequency range from 8 kHz to 12.75, 20, 31.8 and 40 GHz.

产品特点产品参数相关产品

产品特点

主要特点

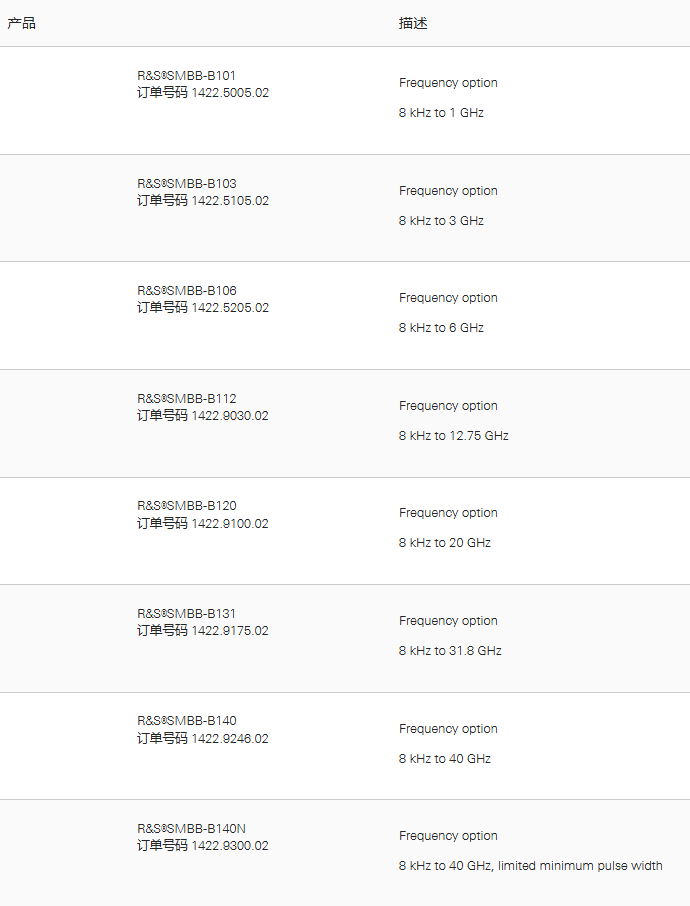

Frequency range from 8 kHz to 1, 3, 6, 12.75, 20, 31.8 and 40 GHz
Outstanding single sideband (SSB) phase noise of < –112 dBc (meas.) at 10 GHz and an offset of 20 kHz
Very low wideband noise depending on the frequency range, sometimes well below < –145 dBc (meas.)
Highest output power of 34 dBm at 1 GHz, 25 dBm at 20 GHz and 19 dBm at 40 GHz (all is measured)

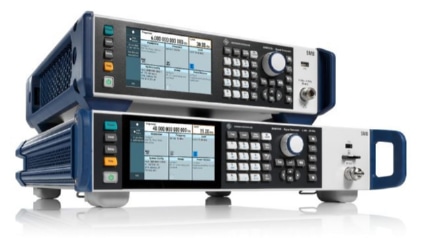

Compact form factor of 2 HU and 3/4 19" width for the R&S®SMB100B RF signal generator (1/3/6 GHz) and 19" width for the R&S®SMB100B microwave signal generator (12.75/20/31.8/40 GHz)

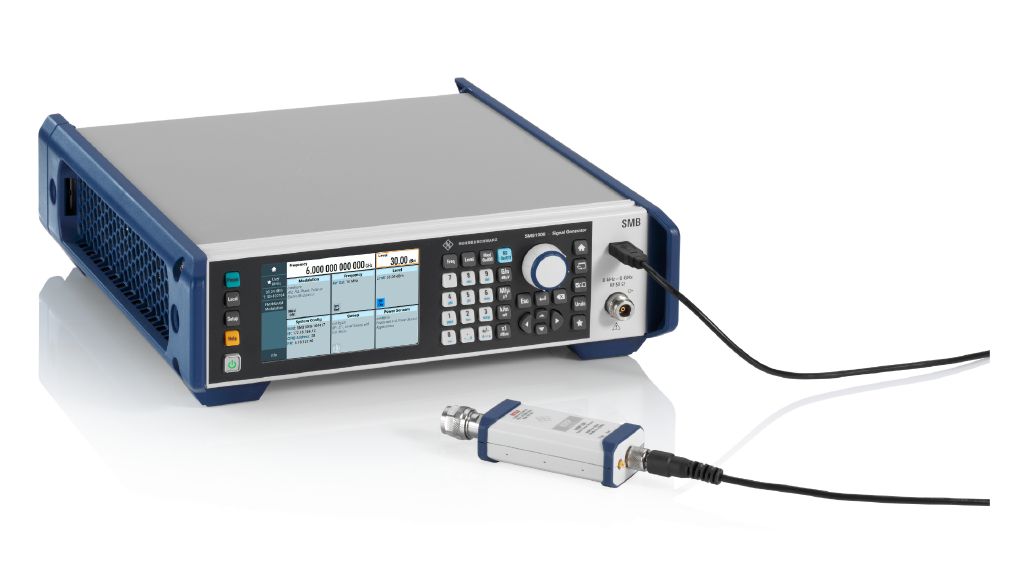

The R&S®SMB100B RF signal generator with connected R&S®NRP power sensor (via USB).

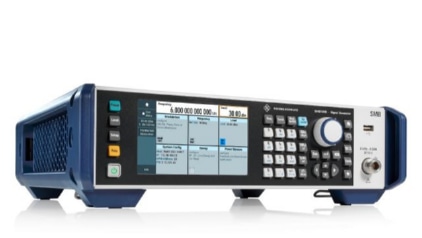

Performance and usability in a compact size:

The R&SeSMB100B has outstanding spectral purity, very high output power andcomprehensive functions

The R&S8SMB100B RF and microwave signal generator combinas performance and versatility in a smallfootprint, while offering comprehensive functions and user-friendly operation.

Frequency range from 8 kHz to 1,3,6,12.75, 20, 31.8 and 40 GHz

Compact form factor of 2 HU and 3/4 19" width for the R&S8SMB100B analog RF signal generator(1/3/6 GHz) and 19" width for the R&SSMB100B analog microwave signal generator(12.75/20/31.8/40 GHz)

Context-sensitive online help provides comprehensive infommationSCPl macro recorder with a code generator that automatically records manual settings and createsexecutable MATLAB® scripts

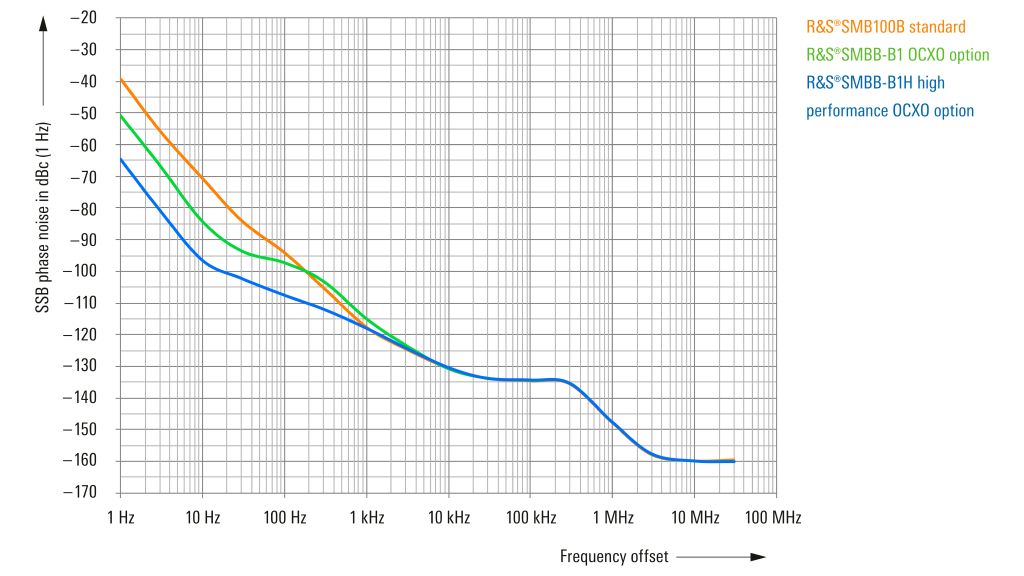

SSB phase noise (1 GHz, 1 Hz BW, meas.)

Perfect for signal quality

Very low $SB phase noise of < -112 dBc (meas.) at 10 GHz and an offset of 20 kHz

To improve DUTs, signal source quality must be much better than DUT performance. The innovativeR&S8SMB100B synthesizer design has very low $SB phase and wideband noise and excellentnonharmonic signal component suppression.

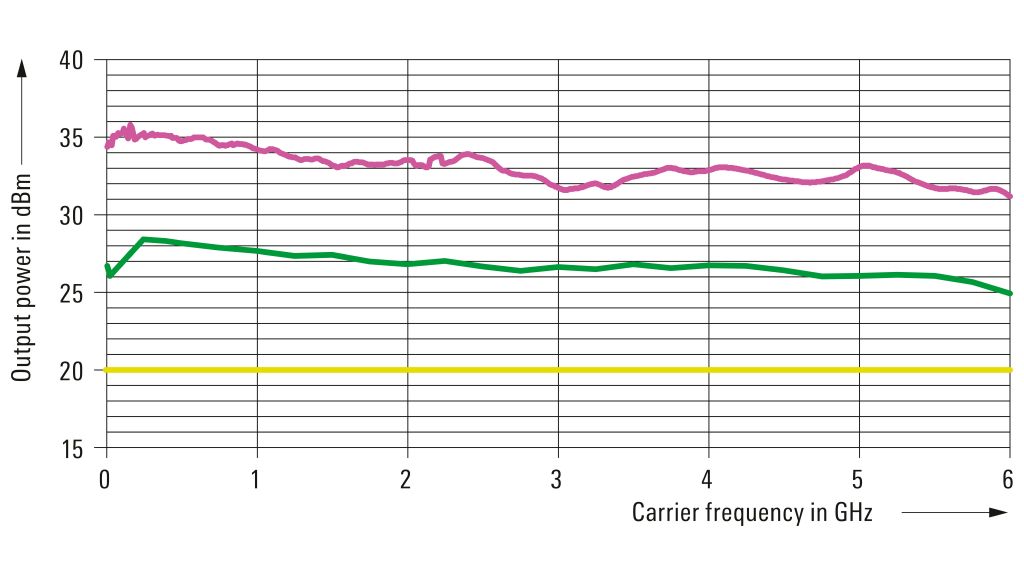

Maximum output power

Perfect for output power

Highest output power of 34 dBm at 1 GHz, 25 dBm at 20 GHz and 19 dBm at 40 GHz (all ismeasured)

The R&S8SMBB-K31 high output power option for the R&S8SMB100B RF signal generator as well asthe R&S8SMBB-K33 high output power option for the R&S8SMB100B (12.75/20 GHZ)and the R&S8SMBB-K35 high output power option for the R&S8SMB100B (31.8/40 GHz) are kay codesand can be easily activated later on. The R&SSMB100B RF signal generator lets the high power optionbe supplemented with the R&S8SMBB-B32 ultra high output power option.

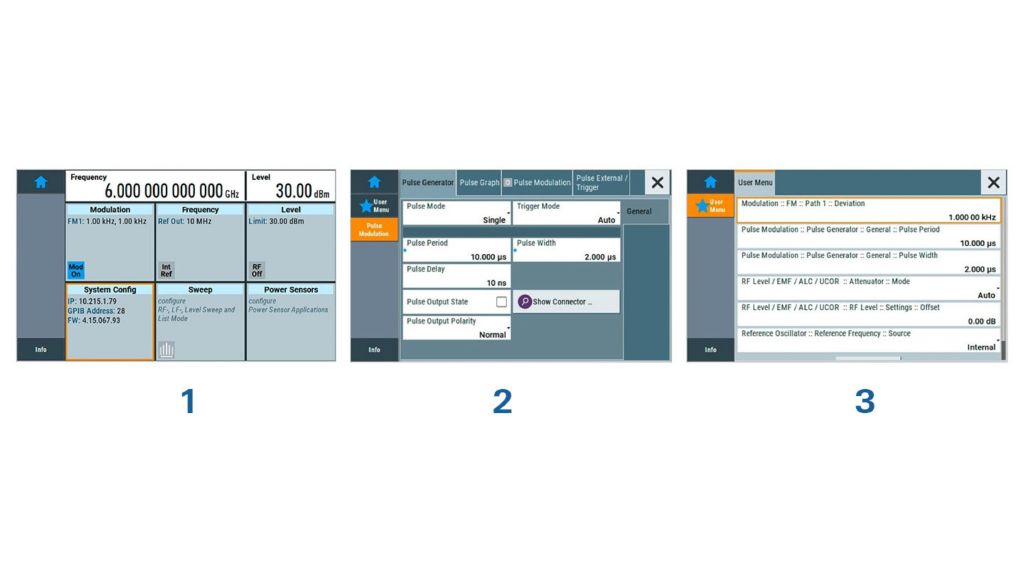

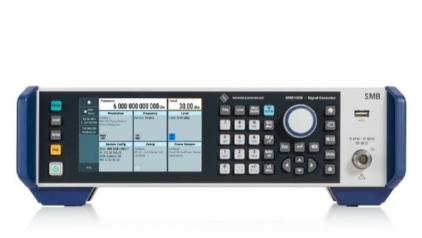

The R&S®SMB100B main screen and user menu

Perfect for use

The R&SeSMB100B is very user friendly

The RF sicnal generator is easy to operate, can work with a connected R&SNRP power sensor and

emulate legacy instruments. You can also create your own user menu

Context-sensitive online help provides comprehensive information

SCPl macro recorder with a code generator that automatically records manual settings and createsexecutable MATLABe scripts

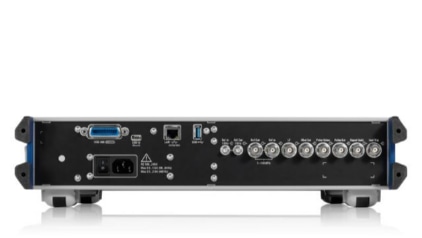

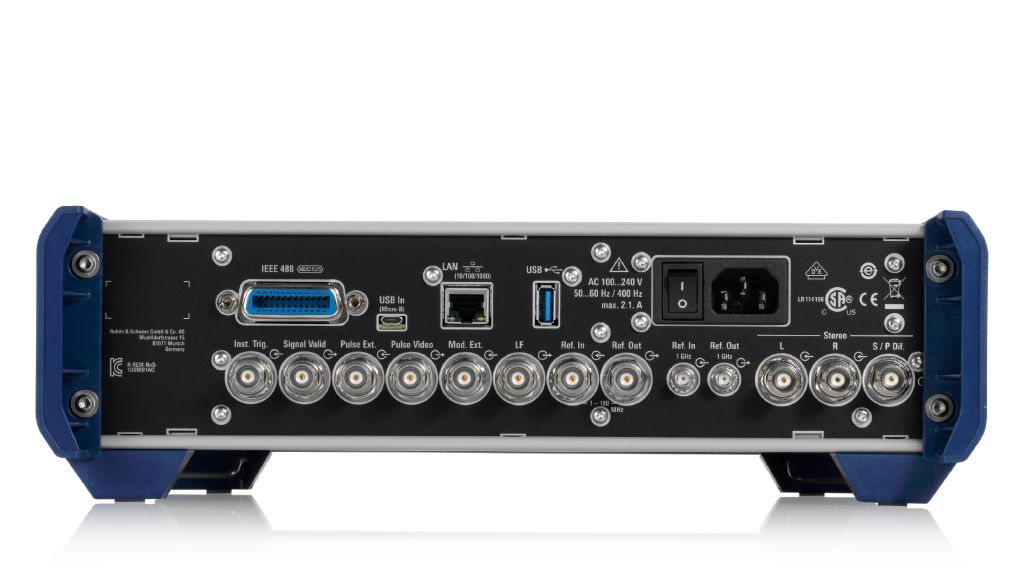

Variable reference frequency inputs/outputs (rear view of the R&S®SMB100B RF signal generator)

Variable reference frequency inputs/outputs

The R&S8SMB100B can output (or input) various reference signals. The 1 MHz to 100 MHz variableexternal reference freguency input (R&S8SMBB-K704 option) allows the R&S8SMB100B to be easilyintegrated into existing tast anvironmants, The received reference freauency can also be sent to aseparate reference output (for details see data sheet). Superb phase stability between multipleR&S8SMB100B instruments is possible with the 1 GHz reference frequency input and output option(R&SSMBB-B3 option).
