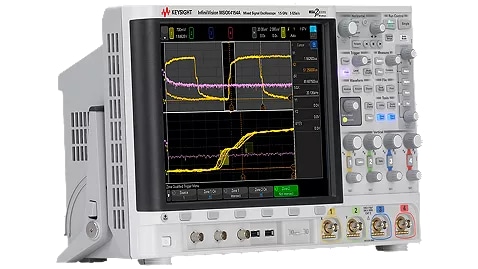

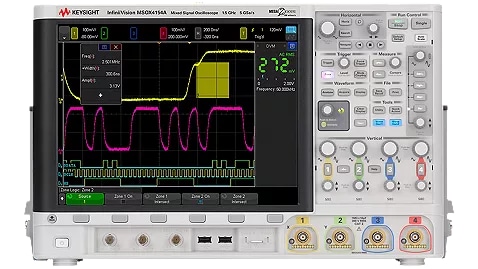

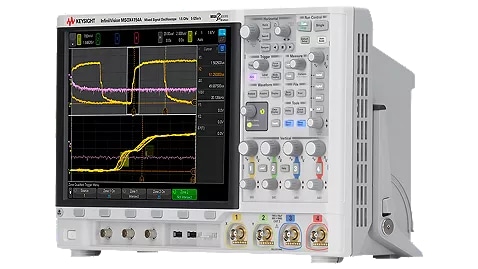

InfiniiVision 4000 X 系列示波器

产品描述：
Keysight InfiniiVision 4000 X 系列示波器专为实现下一代性能提升而设计，波形捕获率比竞争产品快 20 倍。更大的 12.1 英寸电容式触摸屏与创新的硬件区域触摸触发相结合，让您轻松捕获并查看信号。使用 4000 X 系列示波器，您可以信心十足地捕获极其罕见的毛刺，查看更多信号细节。

产品特点产品参数相关产品

产品特点

PathWave BenchVue 示波器软件可提供远程控制、数据记录和自动化测试等功能
带宽高达 200 MHz 至 1.5 GHz
最高 1,000,000 波形/秒的波形捕获率，让信号细节纤毫毕现
利用区域触摸触发技术，隔离信号只需几秒
更大的 12.1 英寸电容式触摸屏可显示直观的用户界面，简化操作并加快测试速度
硬件串行分析选件让您能够更快进行串行总线解码

Advanced Performance

One million waveforms per second update rate

If you can’t see the problem, you can’t fix it. With an industry-leading one million waveforms per second update rate, the InfiniiVision 4000 X-Series gives you the highest probability of capturing random and infrequent events that you would miss on an oscilloscope with a lower waveform update rate. Powered by MegaZoom IV smart memory technology, the InfiniiVision 4000 X-Series not only lets you see more waveforms, but it has the uncompromised ability to find the most difficult problems in your design. Unlike other oscilloscopes, uncompromised ability means: • Always-fast, responsive operation • No slowdown with logic channels on • No slowdown with protocol decoding on • No slowdown with math functions turned on • No slowdown with measurements turned on

What is waveform update rate and why is it important?

As oscilloscopes acquire data, process it, and plot it to the screen, there is inevitable “dead time,” or the time oscilloscopes miss signals completely. In general, the faster the waveform update rate, the shorter the dead time. The shorter the dead time, the more likely an oscilloscope is to capture anomalies and infrequent events. This is why it is critical to select an oscilloscope with a fast waveform update rate.

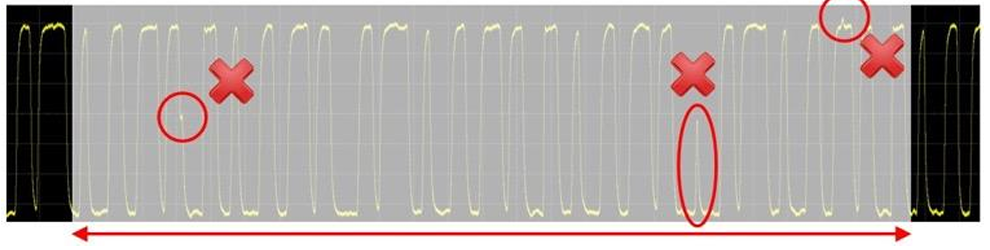

Figure 4. Other vendor’s oscilloscope with 50,000 waveforms/second. A long dead time (gray area) decreases your chances of capturing infrequent events.

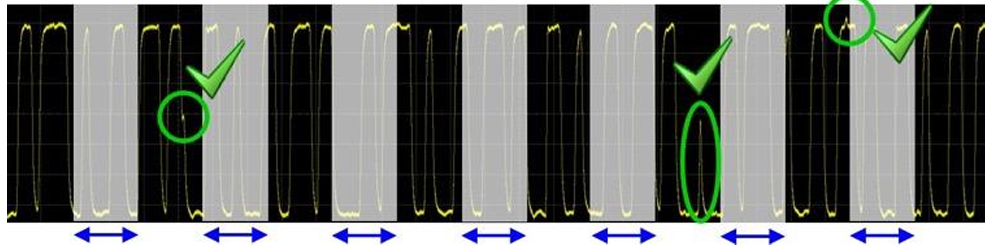

Figure 5. InfiniiVision 4000 X-Series with 1,000,000 waveforms/second. A short dead time (gray areas) increases your chances of capturing infrequent events.
