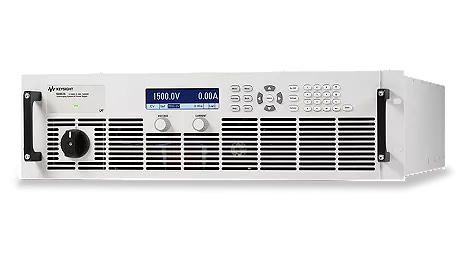

N8900 系列大功率直流电源

产品描述：

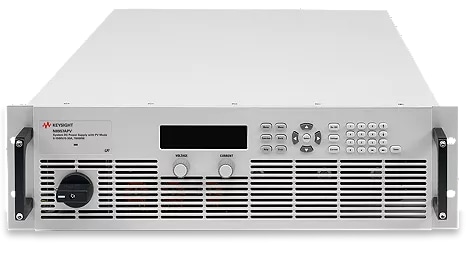

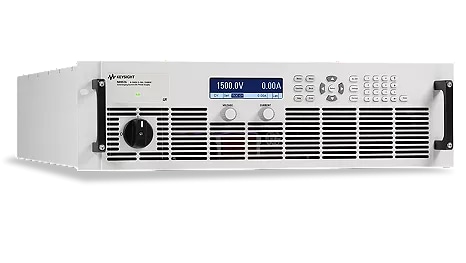

Keysight N8900 系列单路输出自动量程电源可提供 5、10 或 15 kW 输出。通过并联多个电源，可提供高达 100 kW 的输出功率。许多能源解决方案正在向更高电压发展，这些电源可以提供高达 1500 V 的电压。在较低电压下，它们可以输出高达 510 A 的电流。208 VAC 和 400 VAC 的配置允许您使用现有的交流电缆。

产品特点产品参数相关产品

产品特点

特点

输出电压高达 1500 V
输出电流高达 510 A
通过并联多个电源，可以组成一个更大功率的主电源
过压、过流和过温保护
LAN（LXI Core）、USB、GPIB 和模拟接口
在输入为 208 VAC 和 400 VAC 时，可以使用现有的配电方案

Autoranging output – does the job of multiple power supplies

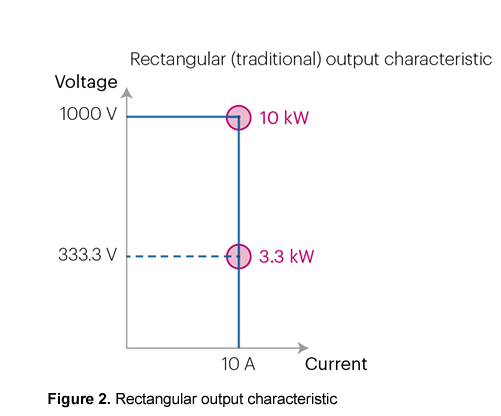

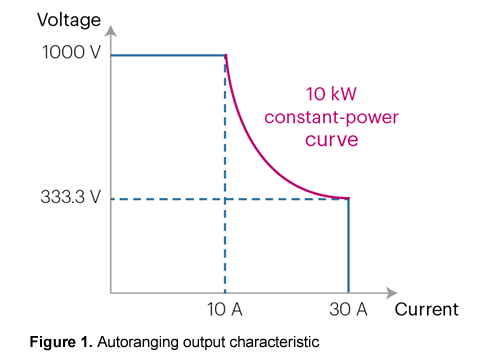

The N8900 power supplies’ autoranging output characteristic makes it much more flexible than rectangular, or traditional, output characteristic power supplies because they expand the power curve, giving the user more voltage and current combinations in one power supply. It’s like having many rectangular power supplies in one. For example, the 1000 V, 30 A, 10 kW model is capable of 1000 V and 10 A at 10 kW as well as 333.3 V and 30 A at 10 kW. If it were a rectangular output, the specifications would be 1000 V, 10 A, 10 kW. At 333.3 V it would only be able to output 3.3 kW, not the 10 kW of an autoranging output. Figures 1 and 2 show a graphical representation of this example.

• Autoranging output – does the job of multiple power supplies!

• 5, 10, and 15 kW maximum output power

• Up to 1500 V and up to 510 A

• 14 different voltage, current, and power combinations available in 208 or 400 VAC (28 total models)

• Just the right amount of performance at just the right price

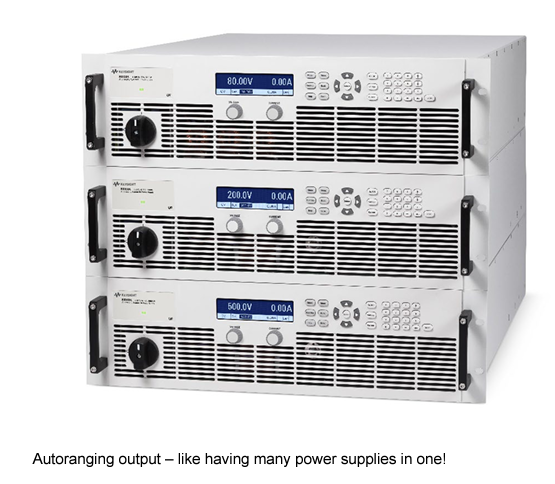

• Easily parallel units to create “one” power supply with > 100 kW of power

• Built-in voltage and current measurement

• High power density, 15 kW in only 3U (5.25 inch/13.34 cm)

• Protection from over-voltage, over-current, and over-temperature

• LAN (LXI Core), USB, GPIB, and analog interfaces all standard

Easy front-panel operation

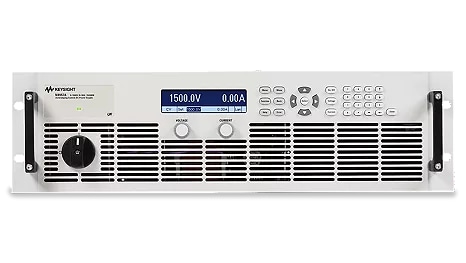

Using the front panel controls, you have complete access to all of the N8900 features via the extensive menu system. You can either use the voltage and current knobs or enter your settings via the keypad. You can also set protection settings, power-on states, and other features. The output voltage, current, and power can be displayed simultaneously, and annunciators at the bottom of the display show power supply status and operating modes. You can lock the front panel controls to protect against accidental power-supply parameter changes.

Device protection

To safeguard your device, the N8900 Series power supplies provide over-temperature, over-current and over-voltage protection to shut down the power supply output when a fault condition occurs.

Simplify system connections

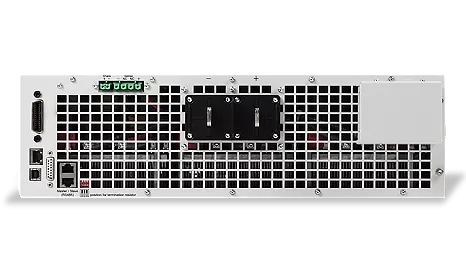

The N8900 Series power supplies comes standard with GPIB, Ethernet/LAN, USB 2.0, and analog interfaces giving you the flexibility to use your I/O interface of choice today and safeguard your test setup for the future. There is no need to worry whether or not you are choosing the right interface when they all come standard. The N8900 is fully compliant with the LXI Core specification.

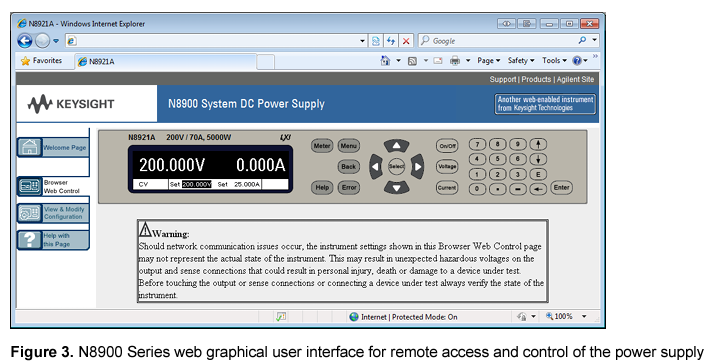

Remote access and control

The built-in Web server provides remote access and control of the instrument via a standard browser. This control goes above and beyond the LXI specification, giving users the ability to monitor and control the instrument from anywhere. Using the Web browser, you can set up, monitor and operate the N8900 remotely.
