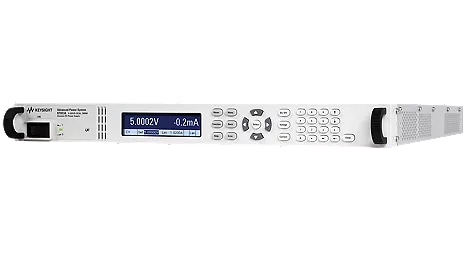

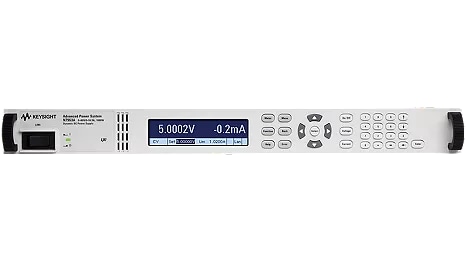

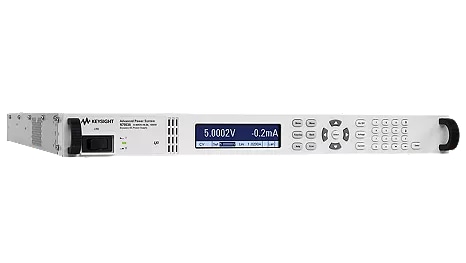

N7900 系列先进电源

产品描述：
是德科技先进多功能电源系统（APS）N7900 系列是专为自动测试设备（ATE）应用设计的全能型电源，其高速动态电源输出和测量功能能够极大提高测试的灵活性。高度综合的 N7900多功能电源凭借出色的速度和测量精度，显著提高测试系统的吞吐量。 APS N7900 拥有 N6900 的所有功能，另外还增加了动态输出功率、动态测量和更高准确度等功能特性。 N7900多功能电源上标配的高准确度、动态电源和功率测量等功能特性，N6900 需要通过单独的选件才能获得。

产品特点产品参数相关产品

产品特点

特点

与 Keysight N6900 相比，N7900多功能电源在测量准确度方面有多项改进，包括增加了另一个无缝切换的电流量程。
N7900 在测量方面也比 N6900 有所增强，包括改进的电压和电流数据记录仪。
并联部署 N7900多功能电源，可以提供高达 10 kW 的功率
动态输出、任意波形、列表功能以及高达 6 倍的向上/向下编程速度
N7909A APS 功耗单元可为 APS 电源增添完整的双象限工作能力
通用 I/O 接口――LAN（LXI Core）、USB 和 GPIB

Overcome your power test challenges with the Advanced Power System family

With the Keysight Technologies Advanced Power System (APS) 1 kW and 2 kW system power supplies, you get a new level of power supply performance. The Advanced Power System (APS) family was designed with VersaPower architecture to help you overcome your toughest power test challenges by delivering industry-leading specifications and innovative features in an integrated solution for today’s advanced ATE power testing needs.

VersaPower architecture delivers the fastest, most accurate, integrated power system.

• Accelerate test-system throughput with industry-leading speed

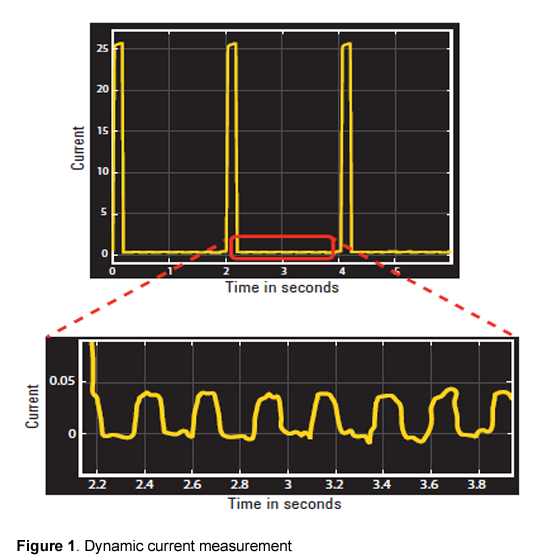

• Capture your DUT’s current profile with accurate measurements

• Reduce your ATE development time and cost with highly integrated capabilities

Get lots of power in a small test-system footprint

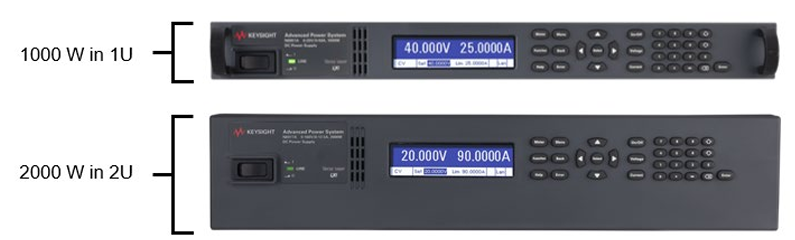

Two power ranges deliver a large amount of power in a small test-system footprint:

• 1 kW models have a 1U full-rack footprint

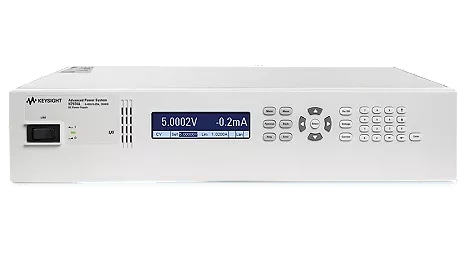

• 2 kW models have a 2U full-rack footprint

• Both power ranges have built-in paralleling capability of up to 10 kW

Accelerate test throughput with industry-leading specifications

Shaving seconds or even milliseconds off a test time can lead to significant savings for high-volume manufacturers, making throughput gains a never-ending quest for test system designers. The APS is a valuable tool for increasing throughput. It provides a number of industry-leading specifications and innovative features that can help you achieve significant throughput gains in your testing. Some examples:

• Industry-leading command processing time (<2 ms)

• Fast up and down programming speeds (up to 500 μs)

• Adjustable measurement times for optimum measurements in minimum time

• Seamless ranging capability for fast current measurements without sacrificing accuracy

• Output lists that allow you to step through timed or triggered voltage or current levels that can also generate triggers for tightly synchronized measurement

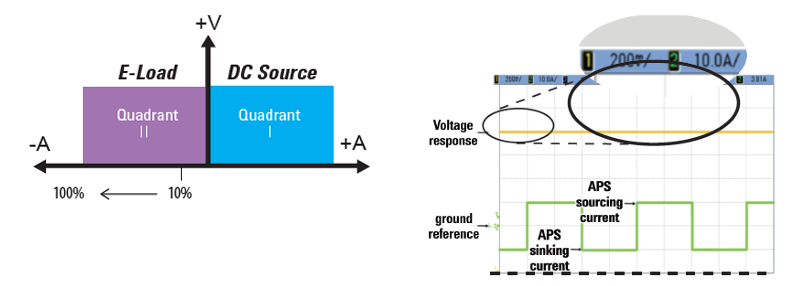

Continuously source and sink current for power storage test applications

When operated as standalone units, APS power supplies can continuously sink up to 10% of their rated output current for an indefinite time. With the addition of APS N7909A power dissipater units, APS power supplies can continuously sink up to 100% of their rated output current. This means you can sink the power supply’s full-rated output power for an indefinite time. Note that the two-quadrant sourcing and sinking capability of the DC power supply allows for continuous transitions between sourcing and sinking current without changing the power supply’s output characteristics or introducing any disruptive behavior. These capabilities make the APS an ideal solution for continuous source and sink testing needs in power storage applications. For more information on the APS N7909A, see page 12.

APS N7909A power dissipater unit

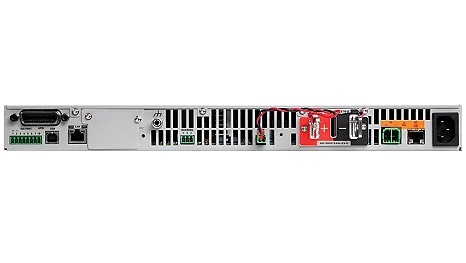

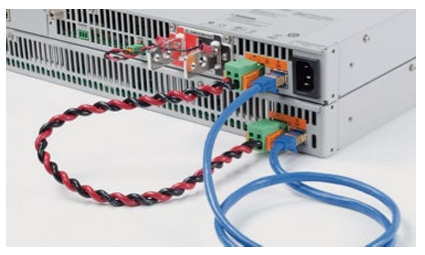

The optional N7909A power dissipater unit adds current sinking or two-quadrant operation to any N6900 or N7900 power supply. Each N7909A provides up to 1 kW of current sinking capability to an APS power supply, so you will need two N7909As to achieve the full two-quadrant operation of a 2 kW APS supply. You can use a single N7909A with a 2 kW APS power supply to achieve 50% current sinking capability. The N7909A form factor is 1U with full rack width. N7909A connects to an APS power supply via a twowire power connection and a communication connection to provide continuous two-quadrant operation. The connections are located on the rear panel of both the N7909A and the supply, as shown in Figure 7.
