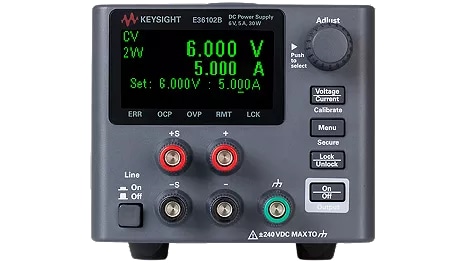

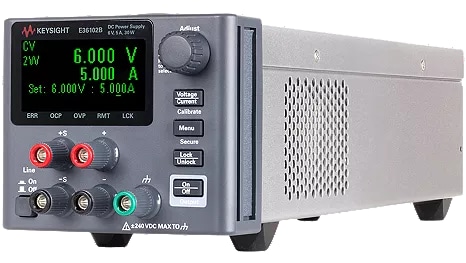

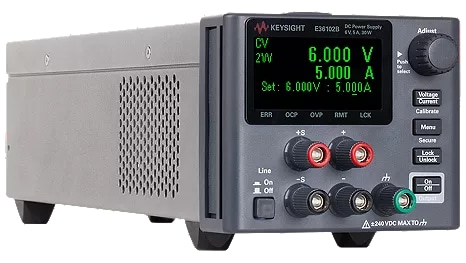

E36100 系列台式电源

产品描述：
E36100 系列的设计特别适合为低功耗器件上电。与那些体积过大的电源相比，它能够提供更纯净的电力、更可靠的器件保护以及更高的精度。它体积小巧（2U，¼-机架），视角宽广，能够整齐地布置在任何工作台上。通过易于使用的旋钮和逐位控制功能，您可以快速、轻松地根据需要设置输出的分辨率。

产品特点产品参数相关产品

产品特点

特点

5 种型号任由选择，提供高达 5 A 的电流或 100 V 的电压
输出噪声低，适用于敏感器件——纹波和噪声小于 350µVrms
为器件提供过压保护和过流保护
输出稳定，负载调节小于 0.01 %
编程精度高达 0.05%
宽视角和高对比度有机发光二极管（OLED）
可存储并调用多达 10 个完整的电源设置
紧凑型设计适合在任何工作台上工作
USB 和 LAN（LXI Core）

Power Forward

Designs change—and so should your DC power supply. Meet the E36100B, engineered by Keysight to power your designs safely and quietly during manual tests or automated sequences. From every angle — size, display, and I/O — the E36100B will impress you. Add one to your bench and power forward.

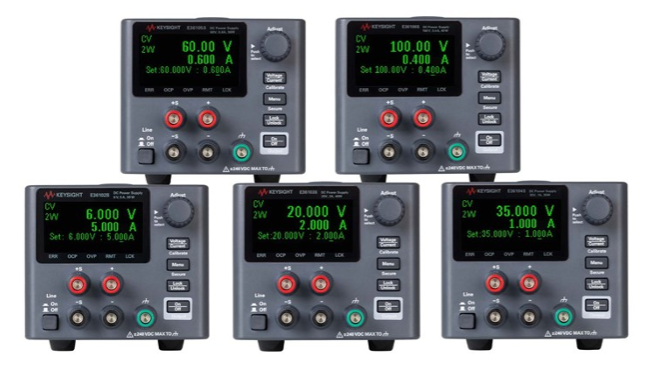

• Choose the best model for your needs: five models offer up to 5 A or 100 V

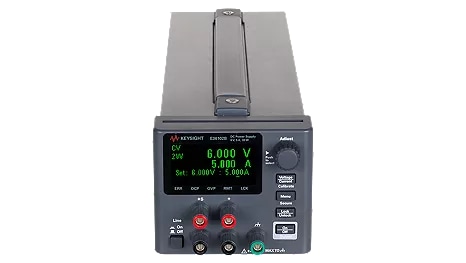

• Save space on your bench, 2U ¼-form factor

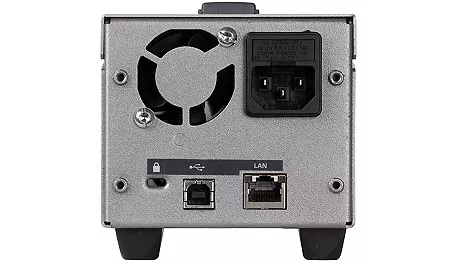

• Connect for computer control with standard LAN (LXI Core) and USB connectivity

• Perform manual tasks quickly with the intuitive on-screen menu system

• Easily view the high-contrast OLED display from anywhere on your bench, even from a sharp angle

• Protect your device under test (DUT) with overvoltage and over-current detection

• Power your DUT with confidence through excellent accuracy in programming and readback

• Quiet operation

Accurate, Reliable Power

The E36100B Series is the latest addition to Keysight’s industry standard family of bench power supplies.

Power your DUT with excellent voltage and current programming and readback accuracy. Use the power supply’s highly accurate low-current measurement feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe.

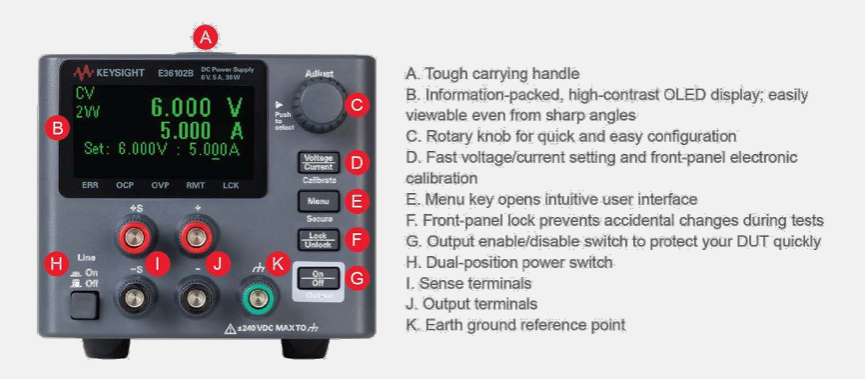

Excellent Front-Panel Usability

The clean design of the E36100B Series front-panel lets you become productive with the unit very quickly. The easy-to-use rotary knob and keypad interface allows you to set the output at your desired resolution quickly and easily, with digit-by-digit control. You can store and recall up to 10 complete power supply setups from non-volatile memory to quickly change instrument states. The output on/off key quickly turns the output on and off.

Fast, Industry-Standard Programming

Every E36100B Series model ships standard with both LAN (LXI Core) and USB (TMC488). The easyto-use SCPI (Standard Commands for Programmable Instruments) programming language lets you create fast and simple programs with transient response faster than 50 μs and fast command processing time–less than 10 ms. You can also program the instrument with the power supply’s Interchangeable Virtual Instruments (IVI) driver.

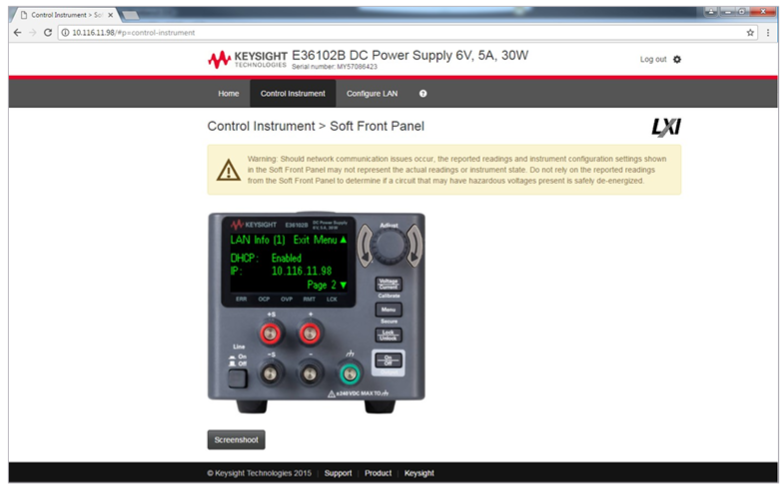

Simple, Powerful Soft Front Panel

When you cannot be near your DUT, open your browser and control the instrument via the power supply’s built-in Web interface, with a look and feel that replicates the front-panel experience.

BenchVue Control and Visualization

BenchVue software for the PC makes it simple to connect, control, and view Keysight power supplies simultaneously with other Keysight bench instruments without programming.

• Visualize the outputs of multiple power supplies simultaneously

• Log data, capture screen shots, and save a system state

• Recall a past state of your bench to replicate results

• Export measurement data in desired format fast

• Quickly access manuals, drivers, FAQs and videos

• Monitor and control bench from mobile devices

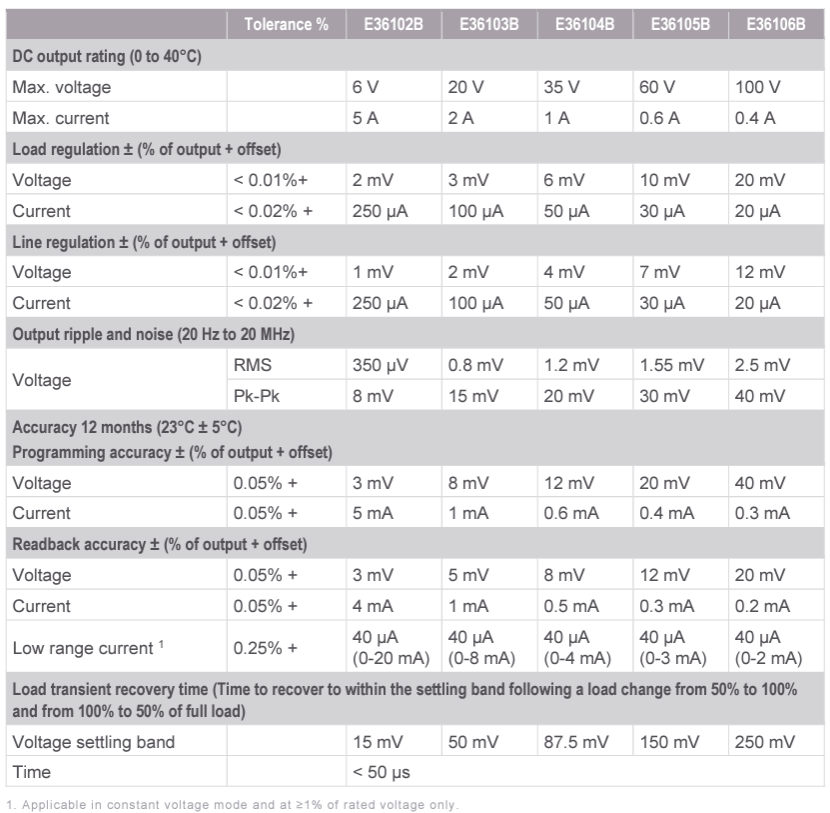

产品参数
