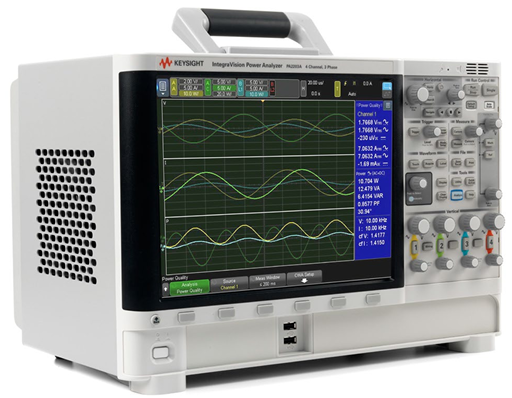

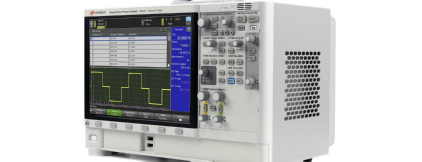

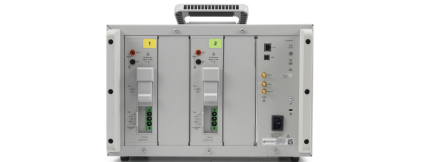

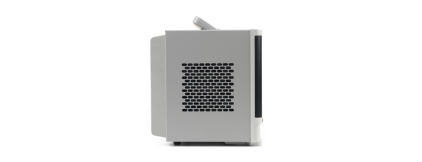

PA2201A IntegraVision 功率分析仪，2 通道，单相交流

产品描述：
PA2201A IntegraVision 功率分析仪能够测量功率参数，同时实时显示双通道的电压、电流与功率迹线。

产品特点产品参数相关产品

产品特点

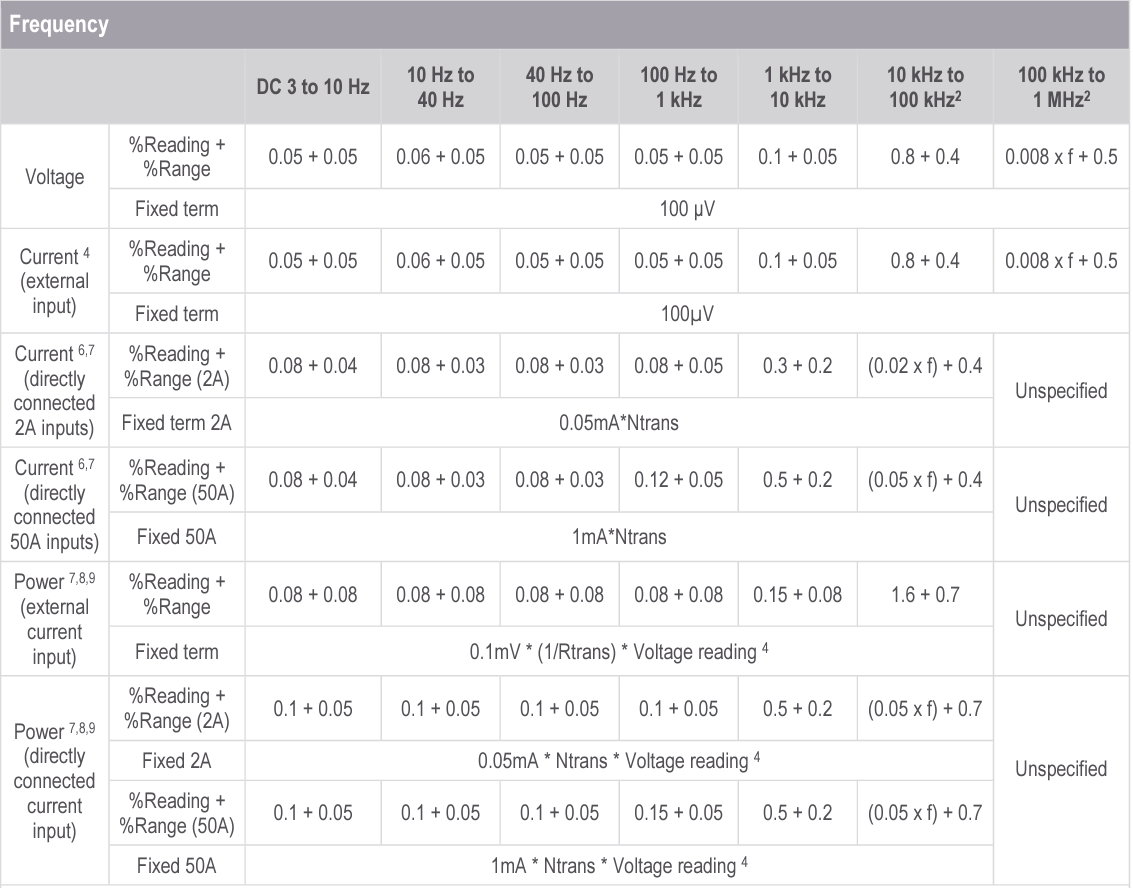

实现更高的功率分析仪准确度。
通过灵活地提供范围宽广且隔离的输入，满足多种测试场景的需求。
通过一台高速数字化仪显示瞬态、冲击电流和状态变化。
在时域和频域中分析电压、电流和功率。
12.1 英寸触摸屏。

Make All of Your Critical Power Measurements with One Instrument

• Achieve power analyzer accuracies and scope-like waveform visualization with reduced setup time

• Address multiple test scenarios with the flexibility of wide-ranging, isolated inputs

• Visualize transients, in-rush currents, and state changes with a high-speed digitizer that captures voltage, current, and power in real-time

• Analyze voltage, current, and power in the time and frequency domains

• Explore your design and gain new insights through the 12.1” / 310 mm highresolution display with a touch interface

• Save space on your bench with a minimum-depth form factor.

Goal: Optimize Power

In today’s world of ever-increasing focus on energy and power efficiency, engineers are under pressure to find every possible way to reduce power consumption and improve efficiency in their electronic power conversion systems (such as AC/DC power supplies, DC/DC converters, DC/AC inverters, solar inverters, battery management systems, electric vehicle power control systems, satellite power systems, and general aerospace/defense applications) and for devices that draw power from an AC line. To achieve energy-efficient designs, R&D engineers need to make measurements to ensure their designs meet established goals, operate efficiently and behave properly under transient conditions without creating noise or power quality problems. Traditional power measurement instruments cannot provide accurate dynamic measurements or measurements on the power that vary vs. time, and oscilloscopes are not designed to measure power with high accuracy.
